How to Use LCD 16x2 attached i2c: Examples, Pinouts, and Specs

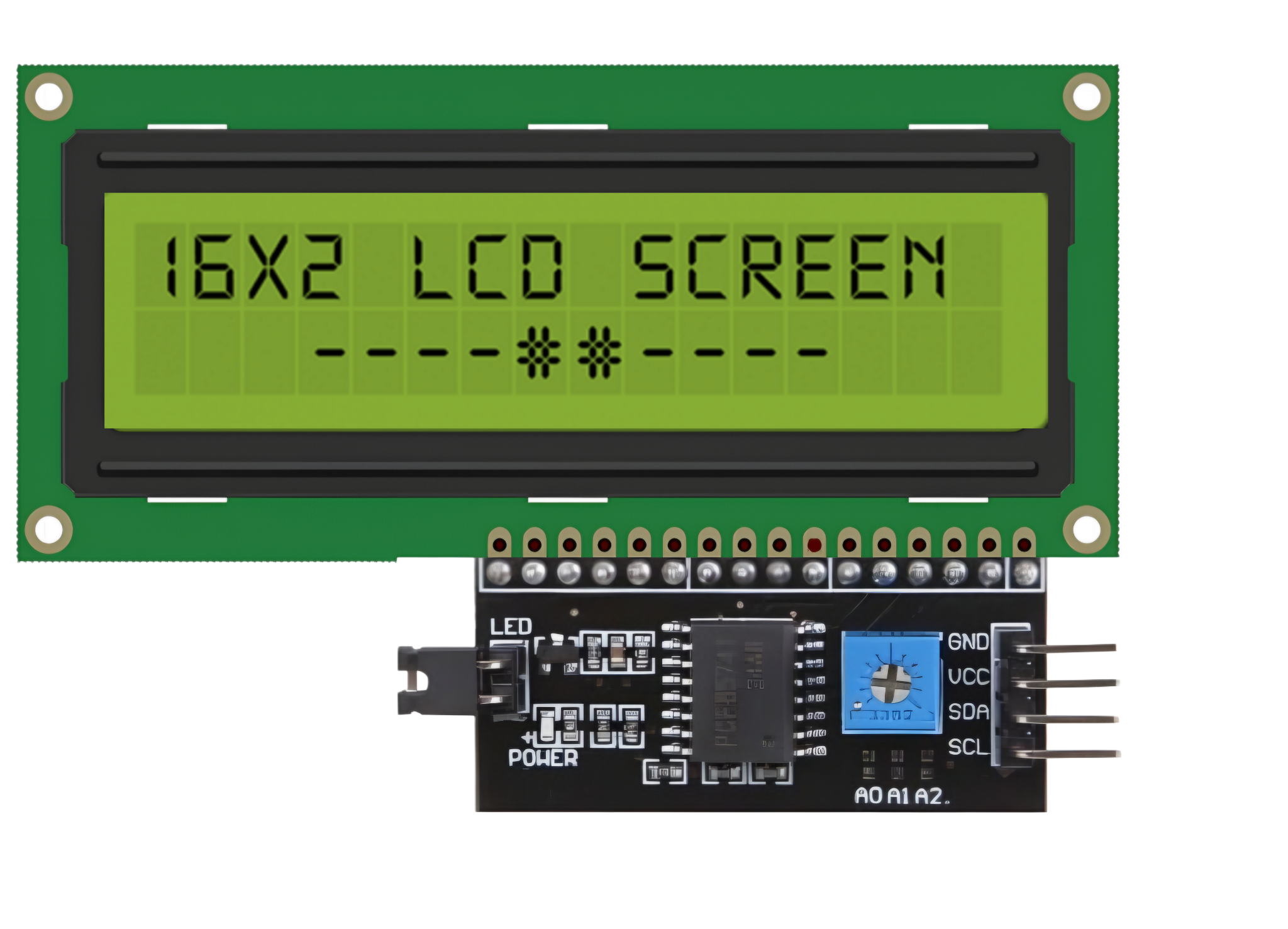

The LCD 16x2 attached I2C is a 16-column by 2-row character display module that uses I2C (Inter-Integrated Circuit) communication for simplified interfacing. This module is widely used in electronics projects to display text, numbers, and symbols. The I2C interface significantly reduces the number of pins required to connect the display to a microcontroller, making it ideal for projects with limited GPIO availability.

• Displaying sensor data in IoT projects
• User interfaces for embedded systems
• Menu systems for devices
• Educational and prototyping purposes
• Home automation displays

• Display Type: 16x2 character LCD
• Interface: I2C (4 pins: VCC, GND, SDA, SCL)
• Operating Voltage: 5V DC
• Backlight: LED with adjustable brightness
• Character Size: 5x8 dot matrix
• I2C Address: Typically 0x27 or 0x3F (configurable)
• Operating Temperature: -20°C to +70°C
• Dimensions: 80mm x 36mm x 12mm (approx.)

The LCD 16x2 with I2C interface has a 4-pin header for connection:

1. Connect the Pins:

   • Connect the VCC pin to the 5V pin of your microcontroller.
   • Connect the GND pin to the ground (GND) of your microcontroller.
   • Connect the SDA pin to the I2C data line (e.g., A4 on Arduino UNO).
   • Connect the SCL pin to the I2C clock line (e.g., A5 on Arduino UNO).

2. Install Required Libraries:

   • Use the LiquidCrystal_I2C library for Arduino. Install it via the Arduino IDE Library Manager:
     • Go to Sketch > Include Library > Manage Libraries.
     • Search for LiquidCrystal_I2C and install the library by Frank de Brabander.

3. Write and Upload Code:

   • Use the example code below to display text on the LCD.

#include <Wire.h>                // Include the Wire library for I2C communication
#include <LiquidCrystal_I2C.h>   // Include the LiquidCrystal_I2C library

// Initialize the LCD with I2C address 0x27 and 16x2 dimensions
LiquidCrystal_I2C lcd(0x27, 16, 2);

void setup() {
  lcd.begin();                   // Initialize the LCD
  lcd.backlight();               // Turn on the backlight
  lcd.setCursor(0, 0);           // Set cursor to the first column, first row
  lcd.print("Hello, World!");    // Print text on the first row
  lcd.setCursor(0, 1);           // Set cursor to the first column, second row
  lcd.print("I2C LCD Test");     // Print text on the second row
}

void loop() {
  // No actions in the loop for this example
}

• I2C Address: Ensure the correct I2C address is used in your code. If the display does not work, use an I2C scanner sketch to detect the address.
• Power Supply: Use a stable 5V power source to avoid flickering or malfunctioning.
• Contrast Adjustment: Some modules have a potentiometer to adjust the contrast. Turn it to achieve optimal text visibility.
• Backlight Control: Use the lcd.backlight() and lcd.noBacklight() functions to control the backlight programmatically.

1. Display Not Turning On:

   • Verify the wiring connections, especially the power (VCC and GND).
   • Ensure the I2C address in the code matches the module's address.

2. Text Not Displaying:

   • Check the contrast adjustment potentiometer.
   • Confirm the SDA and SCL pins are correctly connected to the microcontroller.

3. Flickering or Unstable Display:

   • Use a decoupling capacitor (e.g., 100µF) across the power supply pins.
   • Ensure the power source provides sufficient current.

4. Unknown I2C Address:

   • Use an I2C scanner sketch to detect the module's address. Example:

     #include <Wire.h>

     void setup() {
       Wire.begin();
       Serial.begin(9600);
       Serial.println("Scanning for I2C devices...");
       for (byte address = 1; address < 127; address++) {
         Wire.beginTransmission(address);
         if (Wire.endTransmission() == 0) {
           Serial.print("I2C device found at address 0x");
           Serial.println(address, HEX);
         }
       }
     }

     void loop() {
       // No actions in the loop
     }


1. Can I use this module with 3.3V microcontrollers?

   • Yes, but you may need a logic level shifter for the SDA and SCL lines.

2. How do I display custom characters?

   • Use the createChar() function in the LiquidCrystal_I2C library to define and display custom characters.

3. What is the maximum cable length for I2C?

   • The maximum length depends on the pull-up resistors and speed, but typically it is limited to 1 meter for standard setups.

By following this documentation, you can effectively integrate and use the LCD 16x2 attached I2C in your projects.
