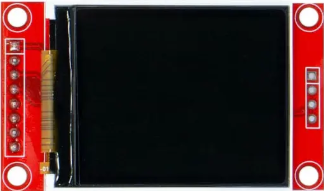

Image of Display 1.8TFT
Cirkit Designer LogoDesign with Display 1.8TFT in Cirkit Designer

Introduction

The Display 1.8TFT is a 1.8-inch thin-film transistor (TFT) display manufactured by genérico with the part ID 1.8TFT. This compact display module is designed to deliver high-quality color images, making it ideal for applications requiring a small yet vibrant graphical interface. It is commonly used in portable devices, DIY electronics projects, and embedded systems for displaying text, images, and graphical data.

Explore Projects Built with Display 1.8TFT

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Powered 1.3 inch TFT Display Module for Visual Data Output
Image of ESP32+ST7789: A project utilizing Display 1.8TFT in a practical application
This circuit connects an ESP32 microcontroller to a 1.3 inch TFT display module (ST7789). The ESP32 provides power and control signals to the display, enabling it to show graphical data.
Cirkit Designer LogoOpen Project in Cirkit Designer
RTL8720DN-Based Interactive Button-Controlled TFT Display
Image of coba-coba: A project utilizing Display 1.8TFT in a practical application
This circuit features an RTL8720DN microcontroller interfaced with a China ST7735S 160x128 TFT LCD display and four pushbuttons. The microcontroller reads the states of the pushbuttons and displays their statuses on the TFT LCD, providing a visual feedback system for button presses.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560 Controlled TFT Touchscreen Interface
Image of Tablero Moto: A project utilizing Display 1.8TFT in a practical application
This circuit connects an Arduino Mega 2560 microcontroller to a 3.5-inch 480x320 TFT LCD display. The Arduino provides power, ground, and digital signals to control the display, including data lines for pixel information and control lines for reset, write, and command/data selection. The embedded code initializes the display and configures the Arduino's pins for communication, likely to create a user interface or visual output for a project.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-C6 and ST7735S Display: Wi-Fi Controlled TFT Display Module
Image of ESP32-C6sm-ST7735: A project utilizing Display 1.8TFT in a practical application
This circuit features an ESP32-C6 microcontroller interfaced with a China ST7735S 160x128 TFT display. The ESP32-C6 controls the display via SPI communication, providing power, ground, and control signals to render graphics and text on the screen.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Display 1.8TFT

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of ESP32+ST7789: A project utilizing Display 1.8TFT in a practical application
ESP32-Powered 1.3 inch TFT Display Module for Visual Data Output
This circuit connects an ESP32 microcontroller to a 1.3 inch TFT display module (ST7789). The ESP32 provides power and control signals to the display, enabling it to show graphical data.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of coba-coba: A project utilizing Display 1.8TFT in a practical application
RTL8720DN-Based Interactive Button-Controlled TFT Display
This circuit features an RTL8720DN microcontroller interfaced with a China ST7735S 160x128 TFT LCD display and four pushbuttons. The microcontroller reads the states of the pushbuttons and displays their statuses on the TFT LCD, providing a visual feedback system for button presses.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Tablero Moto: A project utilizing Display 1.8TFT in a practical application
Arduino Mega 2560 Controlled TFT Touchscreen Interface
This circuit connects an Arduino Mega 2560 microcontroller to a 3.5-inch 480x320 TFT LCD display. The Arduino provides power, ground, and digital signals to control the display, including data lines for pixel information and control lines for reset, write, and command/data selection. The embedded code initializes the display and configures the Arduino's pins for communication, likely to create a user interface or visual output for a project.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ESP32-C6sm-ST7735: A project utilizing Display 1.8TFT in a practical application
ESP32-C6 and ST7735S Display: Wi-Fi Controlled TFT Display Module
This circuit features an ESP32-C6 microcontroller interfaced with a China ST7735S 160x128 TFT display. The ESP32-C6 controls the display via SPI communication, providing power, ground, and control signals to render graphics and text on the screen.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Portable devices (e.g., handheld consoles, smart gadgets)
  • User interfaces for embedded systems
  • DIY electronics projects
  • Real-time data visualization
  • Wearable technology

Technical Specifications

The following table outlines the key technical details of the Display 1.8TFT:

Parameter Specification
Display Type TFT (Thin-Film Transistor)
Screen Size 1.8 inches
Resolution 128 x 160 pixels
Color Depth 18-bit (262,144 colors)
Interface SPI (Serial Peripheral Interface)
Operating Voltage 3.3V to 5V
Backlight Voltage 3.0V to 3.3V
Current Consumption ~50mA (with backlight on)
Dimensions 34.5mm x 47.5mm x 4.5mm
Operating Temperature -20°C to 70°C

Pin Configuration

The Display 1.8TFT module typically has an 8-pin interface. Below is the pinout and description:

Pin Name Description
1 GND Ground connection
2 VCC Power supply (3.3V to 5V)
3 SCL Serial Clock (SPI clock input)
4 SDA Serial Data (SPI data input)
5 RES Reset pin (active low)
6 DC Data/Command control pin
7 CS Chip Select (active low)
8 BL Backlight control (connect to 3.3V for always on)

Usage Instructions

Connecting the Display to a Circuit

To use the Display 1.8TFT in a circuit, follow these steps:

  1. Power Supply: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
  2. SPI Interface: Connect the SCL (clock) and SDA (data) pins to the corresponding SPI pins on your microcontroller.
  3. Control Pins:
    • Connect the RES pin to a GPIO pin on your microcontroller for resetting the display.
    • Connect the DC pin to a GPIO pin to toggle between data and command modes.
    • Connect the CS pin to a GPIO pin to enable or disable the display.
  4. Backlight: Connect the BL pin to 3.3V for constant backlight or to a PWM pin for brightness control.

Example: Using with Arduino UNO

Below is an example of how to connect and program the Display 1.8TFT with an Arduino UNO:

Wiring Diagram

Display Pin Arduino UNO Pin
GND GND
VCC 5V
SCL D13 (SPI Clock)
SDA D11 (SPI MOSI)
RES D8
DC D9
CS D10
BL 3.3V

Arduino Code Example

#include <Adafruit_GFX.h>    // Core graphics library
#include <Adafruit_ST7735.h> // Library for 1.8TFT display
#include <SPI.h>

// Define pins for the display
#define TFT_CS     10  // Chip Select pin
#define TFT_RST    8   // Reset pin
#define TFT_DC     9   // Data/Command pin

// Initialize the display object
Adafruit_ST7735 tft = Adafruit_ST7735(TFT_CS, TFT_DC, TFT_RST);

void setup() {
  // Initialize the display
  tft.initR(INITR_BLACKTAB); // Initialize with black tab configuration
  tft.fillScreen(ST77XX_BLACK); // Clear the screen with black color

  // Display a message
  tft.setTextColor(ST77XX_WHITE); // Set text color to white
  tft.setTextSize(1);             // Set text size
  tft.setCursor(10, 10);          // Set cursor position
  tft.println("Hello, 1.8TFT!");  // Print message
}

void loop() {
  // Add your code here for dynamic updates
}

Best Practices

  • Use a level shifter if your microcontroller operates at 5V logic levels to avoid damaging the display.
  • Avoid prolonged exposure to extreme temperatures to ensure the longevity of the display.
  • Use decoupling capacitors near the power pins to reduce noise and improve stability.

Troubleshooting and FAQs

Common Issues and Solutions

  1. Display Not Turning On:

    • Ensure the VCC and GND pins are properly connected.
    • Verify that the backlight pin (BL) is connected to 3.3V or a PWM signal.
  2. No Image or Incorrect Display:

    • Check the SPI connections (SCL, SDA, CS, DC, RES) for proper wiring.
    • Ensure the correct initialization code is used in your program.
  3. Flickering or Unstable Display:

    • Verify that the power supply is stable and within the specified voltage range.
    • Use shorter wires for SPI connections to reduce noise.
  4. Backlight Not Working:

    • Confirm that the BL pin is connected to 3.3V or a PWM signal.
    • Check for loose connections or damaged components.

FAQs

Q: Can I use the Display 1.8TFT with a 5V microcontroller?
A: Yes, the display supports 5V logic levels, but using a level shifter is recommended for long-term reliability.

Q: What library should I use for Arduino?
A: Use the Adafruit_GFX and Adafruit_ST7735 libraries, which are widely supported and easy to use.

Q: Can I control the backlight brightness?
A: Yes, connect the BL pin to a PWM-capable pin on your microcontroller to adjust brightness.

Q: Is the display compatible with Raspberry Pi?
A: Yes, the display can be used with Raspberry Pi via the SPI interface, but you may need to configure the SPI settings in the Raspberry Pi OS.

This concludes the documentation for the Display 1.8TFT. For further assistance, refer to the manufacturer's datasheet or community forums.
