How to Use ESP32-WROOM-32E: Examples, Pinouts, and Specs

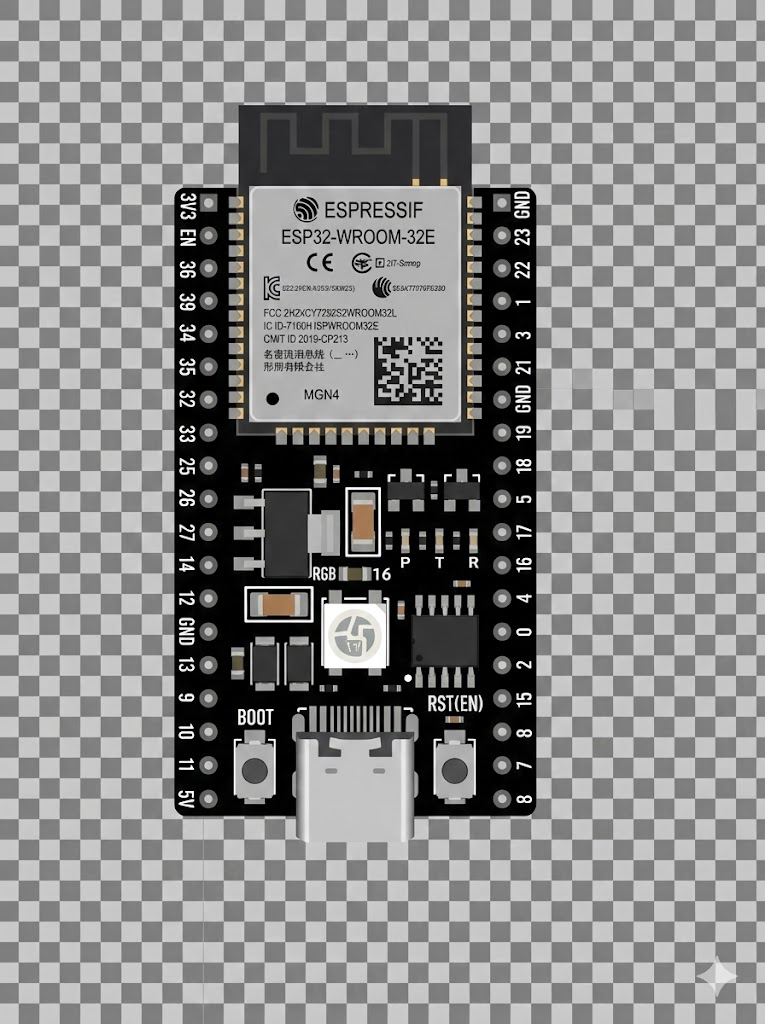

Image of ESP32-WROOM-32E
Cirkit Designer LogoDesign with ESP32-WROOM-32E in Cirkit Designer

Introduction

The ESP32-WROOM-32E, manufactured by VCC-GND, is a powerful Wi-Fi and Bluetooth microcontroller module designed for high-performance IoT applications and embedded systems. It features dual-core processing, integrated RF components, and a rich set of peripherals, making it an ideal choice for projects requiring wireless connectivity, efficient processing, and low power consumption.

Explore Projects Built with ESP32-WROOM-32E

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor
Image of gps projekt circuit: A project utilizing ESP32-WROOM-32E in a practical application
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Multi-Sensor Health Monitoring System with Bluetooth Connectivity
Image of circuit diagram: A project utilizing ESP32-WROOM-32E in a practical application
This circuit features an ESP32-WROOM-32UE microcontroller as the central processing unit, interfacing with a variety of sensors and modules. It includes a MAX30100 pulse oximeter and heart-rate sensor, an MLX90614 infrared thermometer, an HC-05 Bluetooth module for wireless communication, and a Neo 6M GPS module for location tracking. All components are powered by a common voltage supply and are connected to specific GPIO pins on the ESP32 for data exchange, with the sensors using I2C communication and the modules using UART.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Infrared Proximity Sensing System
Image of ir sensor: A project utilizing ESP32-WROOM-32E in a practical application
This circuit features an ESP32 Wroom microcontroller connected to an Infrared Proximity Sensor. The ESP32's GPIO33 is interfaced with the sensor's output, allowing the microcontroller to read proximity data. The sensor is powered by the ESP32's 5V output, and both devices share a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Controlled WS2812 RGB LED Strip
Image of LED: A project utilizing ESP32-WROOM-32E in a practical application
This circuit features an ESP32 Wroom Dev Kit microcontroller connected to a WS2812 RGB LED strip. The ESP32's GPIO 4 is used to send data to the LED strip's data input (DIN), while both the ESP32 and the LED strip share a common ground. A separate Vcc power source is connected to the 5V pin of the LED strip to provide power.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP32-WROOM-32E

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of gps projekt circuit: A project utilizing ESP32-WROOM-32E in a practical application
ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of circuit diagram: A project utilizing ESP32-WROOM-32E in a practical application
ESP32-Based Multi-Sensor Health Monitoring System with Bluetooth Connectivity
This circuit features an ESP32-WROOM-32UE microcontroller as the central processing unit, interfacing with a variety of sensors and modules. It includes a MAX30100 pulse oximeter and heart-rate sensor, an MLX90614 infrared thermometer, an HC-05 Bluetooth module for wireless communication, and a Neo 6M GPS module for location tracking. All components are powered by a common voltage supply and are connected to specific GPIO pins on the ESP32 for data exchange, with the sensors using I2C communication and the modules using UART.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ir sensor: A project utilizing ESP32-WROOM-32E in a practical application
ESP32-Based Infrared Proximity Sensing System
This circuit features an ESP32 Wroom microcontroller connected to an Infrared Proximity Sensor. The ESP32's GPIO33 is interfaced with the sensor's output, allowing the microcontroller to read proximity data. The sensor is powered by the ESP32's 5V output, and both devices share a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of LED: A project utilizing ESP32-WROOM-32E in a practical application
ESP32-Controlled WS2812 RGB LED Strip
This circuit features an ESP32 Wroom Dev Kit microcontroller connected to a WS2812 RGB LED strip. The ESP32's GPIO 4 is used to send data to the LED strip's data input (DIN), while both the ESP32 and the LED strip share a common ground. A separate Vcc power source is connected to the 5V pin of the LED strip to provide power.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices and smart home automation
  • Wearable electronics
  • Wireless sensor networks
  • Industrial automation and control systems
  • Audio streaming and Bluetooth-enabled devices
  • Prototyping and development of connected systems

Technical Specifications

Key Technical Details

Parameter Specification
Microcontroller ESP32-D0WD-V3 (dual-core Xtensa LX6)
Clock Speed Up to 240 MHz
Flash Memory 4 MB (external SPI flash)
SRAM 520 KB
Wireless Connectivity Wi-Fi 802.11 b/g/n, Bluetooth v4.2
Operating Voltage 3.0V to 3.6V
GPIO Pins 34
ADC Channels 18 (12-bit resolution)
DAC Channels 2
Communication Interfaces UART, SPI, I2C, I2S, CAN, PWM
Power Consumption Ultra-low power modes available
Operating Temperature -40°C to +85°C
Dimensions 18 mm x 25.5 mm x 3.1 mm

Pin Configuration and Descriptions

The ESP32-WROOM-32E has 38 pins. Below is a summary of the key pins and their functions:

Pin Number Name Function Description
1 EN Module enable pin (active high)
2 IO0 GPIO0, used for boot mode selection
3 IO2 GPIO2, general-purpose I/O
4 IO4 GPIO4, general-purpose I/O
5 IO5 GPIO5, general-purpose I/O
6 IO12 GPIO12, ADC2 channel, general-purpose I/O
7 IO13 GPIO13, ADC2 channel, general-purpose I/O
8 IO14 GPIO14, ADC2 channel, general-purpose I/O
9 IO15 GPIO15, ADC2 channel, general-purpose I/O
10 IO16 GPIO16, general-purpose I/O
11 IO17 GPIO17, general-purpose I/O
12 IO18 GPIO18, SPI clock (SCK)
13 IO19 GPIO19, SPI master-out/slave-in (MOSI)
14 IO21 GPIO21, I2C SDA
15 IO22 GPIO22, I2C SCL
16 IO23 GPIO23, SPI master-in/slave-out (MISO)
17 GND Ground
18 3V3 3.3V power supply

For a complete pinout, refer to the official datasheet.

Usage Instructions

How to Use the ESP32-WROOM-32E in a Circuit

  1. Power Supply: Provide a stable 3.3V power supply to the module. Avoid exceeding 3.6V to prevent damage.
  2. Boot Mode: Connect GPIO0 to GND during power-up to enter bootloader mode for programming.
  3. Programming: Use a USB-to-serial adapter (e.g., FTDI or CP2102) to upload code via the UART interface.
  4. Peripherals: Connect sensors, actuators, or other devices to the GPIO pins. Use appropriate pull-up or pull-down resistors as needed.
  5. Antenna: Ensure the onboard antenna has sufficient clearance from metallic objects to avoid interference.

Important Considerations and Best Practices

  • Power Management: Use the module's deep sleep mode to minimize power consumption in battery-powered applications.
  • Voltage Levels: Ensure all GPIO pins operate at 3.3V logic levels. Use level shifters if interfacing with 5V devices.
  • Decoupling Capacitors: Place decoupling capacitors (e.g., 0.1 µF) near the power pins to reduce noise.
  • Firmware Updates: Regularly update the firmware to benefit from performance improvements and bug fixes.

Example: Connecting to an Arduino UNO

The ESP32-WROOM-32E can be programmed using the Arduino IDE. Below is an example of connecting the module to Wi-Fi:

#include <WiFi.h> // Include the Wi-Fi library for ESP32

const char* ssid = "Your_SSID";       // Replace with your Wi-Fi network name
const char* password = "Your_Password"; // Replace with your Wi-Fi password

void setup() {
  Serial.begin(115200); // Initialize serial communication at 115200 baud
  delay(1000);          // Wait for a moment before starting

  Serial.println("Connecting to Wi-Fi...");
  WiFi.begin(ssid, password); // Start connecting to Wi-Fi

  while (WiFi.status() != WL_CONNECTED) {
    delay(500); // Wait for connection
    Serial.print(".");
  }

  Serial.println("\nConnected to Wi-Fi!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP()); // Print the assigned IP address
}

void loop() {
  // Add your main code here
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Module Not Responding:

    • Ensure the EN pin is pulled high.
    • Verify the power supply voltage is within the 3.0V to 3.6V range.
  2. Wi-Fi Connection Fails:

    • Double-check the SSID and password.
    • Ensure the router is within range and supports 2.4 GHz Wi-Fi.
  3. Upload Errors:

    • Confirm the correct COM port and board are selected in the Arduino IDE.
    • Hold GPIO0 low during power-up to enter bootloader mode.
  4. GPIO Pin Malfunction:

    • Check for conflicting pin assignments in your code.
    • Verify that the pin is not being used by internal peripherals.

FAQs

  • Q: Can the ESP32-WROOM-32E operate on 5V?
    A: No, the module operates at 3.3V. Use a voltage regulator or level shifter for 5V systems.

  • Q: How do I reset the module?
    A: Pull the EN pin low momentarily to reset the module.

  • Q: Can I use the ESP32-WROOM-32E for Bluetooth audio streaming?
    A: Yes, the module supports Bluetooth audio streaming using the A2DP profile.

  • Q: What is the maximum Wi-Fi range?
    A: The range depends on environmental factors but typically extends up to 100 meters in open space.

This documentation provides a comprehensive guide to using the ESP32-WROOM-32E effectively in your projects. For further details, refer to the official datasheet and user manual.
