How to Use HMC5883L Triple-axis Magnetometer: Examples, Pinouts, and Specs

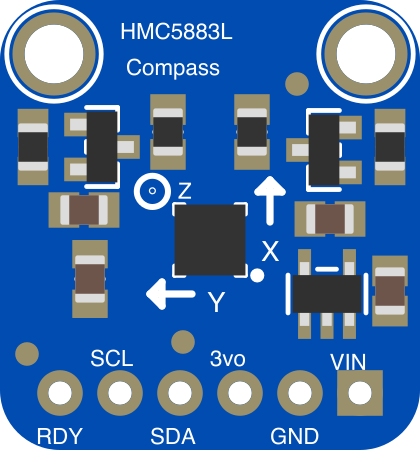

The HMC5883L is a digital magnetometer manufactured by Adafruit (Part ID: 1746). It is designed to measure magnetic fields in three dimensions (X, Y, and Z axes) and is widely used in navigation, orientation, and compass-based applications. This compact and versatile sensor communicates via I2C, making it easy to integrate into microcontroller-based systems such as Arduino and Raspberry Pi.

• Electronic compasses
• GPS navigation systems
• Robotics and drone orientation
• Magnetic field detection and mapping
• Augmented reality devices

The HMC5883L is a high-performance magnetometer with the following key specifications:

The HMC5883L module typically has 4 pins for interfacing:

To use the HMC5883L with an Arduino UNO, follow these steps:

1. Connect the VCC pin of the HMC5883L to the 5V pin on the Arduino.
2. Connect the GND pin of the HMC5883L to the GND pin on the Arduino.
3. Connect the SDA pin of the HMC5883L to the A4 pin on the Arduino (I2C data line).
4. Connect the SCL pin of the HMC5883L to the A5 pin on the Arduino (I2C clock line).

Below is an example Arduino sketch to read data from the HMC5883L and display it on the Serial Monitor:

#include <Wire.h>

// HMC5883L I2C address
#define HMC5883L_ADDRESS 0x1E

void setup() {
  Wire.begin(); // Initialize I2C communication
  Serial.begin(9600); // Start serial communication

  // Initialize HMC5883L
  Wire.beginTransmission(HMC5883L_ADDRESS);
  Wire.write(0x00); // Select configuration register A
  Wire.write(0x70); // Set 8-average, 15 Hz default, normal measurement
  Wire.endTransmission();

  Wire.beginTransmission(HMC5883L_ADDRESS);
  Wire.write(0x01); // Select configuration register B
  Wire.write(0xA0); // Set gain to 5
  Wire.endTransmission();

  Wire.beginTransmission(HMC5883L_ADDRESS);
  Wire.write(0x02); // Select mode register
  Wire.write(0x00); // Continuous measurement mode
  Wire.endTransmission();
}

void loop() {
  int16_t x, y, z;

  // Request 6 bytes of data from the HMC5883L
  Wire.beginTransmission(HMC5883L_ADDRESS);
  Wire.write(0x03); // Start reading from data output register
  Wire.endTransmission();
  Wire.requestFrom(HMC5883L_ADDRESS, 6);

  if (Wire.available() == 6) {
    x = (Wire.read() << 8) | Wire.read(); // Combine MSB and LSB for X-axis
    z = (Wire.read() << 8) | Wire.read(); // Combine MSB and LSB for Z-axis
    y = (Wire.read() << 8) | Wire.read(); // Combine MSB and LSB for Y-axis
  }

  // Print the values to the Serial Monitor
  Serial.print("X: ");
  Serial.print(x);
  Serial.print(" Y: ");
  Serial.print(y);
  Serial.print(" Z: ");
  Serial.println(z);

  delay(500); // Wait for 500ms before the next reading
}

• Ensure pull-up resistors (typically 4.7kΩ) are connected to the SDA and SCL lines if they are not already present on the module.
• Avoid placing the sensor near strong magnetic fields or ferromagnetic materials, as they can interfere with measurements.
• Calibrate the sensor for accurate readings, especially if used in a new environment.

Q: Can the HMC5883L operate at 3.3V?
A: Yes, the HMC5883L supports an operating voltage range of 3.0V to 5.0V, making it compatible with both 3.3V and 5V systems.

Q: How do I calibrate the HMC5883L?
A: Calibration involves rotating the sensor in all directions to collect raw data and then applying an offset correction. Libraries like Adafruit's HMC5883L library can simplify this process.

Q: What is the maximum range of the HMC5883L?
A: The sensor can measure magnetic fields up to ±8.1 Gauss, depending on the selected gain setting.

Q: Can I use the HMC5883L for tilt compensation?
A: Yes, but you will need an accelerometer or gyroscope to calculate tilt angles and combine the data for accurate compensation.

By following this documentation, you can effectively integrate and utilize the HMC5883L Triple-axis Magnetometer in your projects.
