How to Use DS3231 RTC: Examples, Pinouts, and Specs

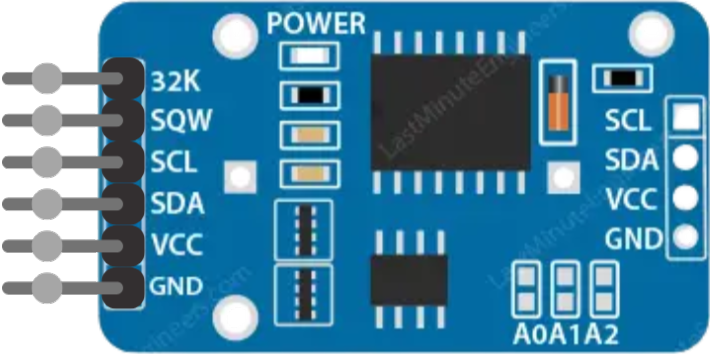

Image of DS3231 RTC
Cirkit Designer LogoDesign with DS3231 RTC in Cirkit Designer

Introduction

The DS3231 is a highly accurate real-time clock (RTC) module designed to keep track of the current time and date. It features a temperature-compensated crystal oscillator (TCXO) to ensure high precision, even under varying environmental conditions. The module communicates with microcontrollers via an I2C interface, making it easy to integrate into a wide range of projects.

Explore Projects Built with DS3231 RTC

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based Real-Time Clock Synchronization
Image of DS3231: A project utilizing DS3231 RTC in a practical application
This circuit connects an ESP32 Devkit V1 microcontroller with an RTC DS3231 real-time clock module. The ESP32 provides power to the RTC and communicates with it via I2C, with D21 and D22 serving as the data (SDA) and clock (SCL) lines, respectively. The common ground (GND) ensures a reference point for the voltages, and the 3V3 pin from the ESP32 powers the RTC module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Dual RTC DS3231 Synchronization with Glyph C3 Microcontroller
Image of DS: A project utilizing DS3231 RTC in a practical application
This circuit integrates two RTC DS3231 real-time clock modules with a Glyph C3 microcontroller. The RTC modules are connected to the microcontroller via I2C communication protocol, using the SCL and SDA lines for clock and data respectively. Both RTC modules and the microcontroller share a common power supply (3V3) and ground (GND), indicating that they operate at the same voltage level.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Real-Time Clock Synchronization
Image of RTC: A project utilizing DS3231 RTC in a practical application
This circuit connects an ESP32 microcontroller to a DS3231 Real Time Clock (RTC) module. The ESP32's Vin and GND pins are connected to the VCC and GND pins of the DS3231, providing power to the RTC. The SCL and SDA pins of the DS3231 are connected to the D22 and D21 pins of the ESP32, respectively, enabling I2C communication between the microcontroller and the RTC module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO with RTC DS3231 Timekeeping
Image of RTC: A project utilizing DS3231 RTC in a practical application
This circuit connects an Arduino UNO microcontroller with a DS3231 Real Time Clock (RTC) module. The Arduino provides 5V power and ground to the RTC and communicates with it via the I2C protocol using the A4 (SDA) and A5 (SCL) pins. The embedded code on the Arduino is used to initialize the RTC, check for power loss, set the current time if needed, and periodically read and print the current time to the serial monitor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with DS3231 RTC

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of DS3231: A project utilizing DS3231 RTC in a practical application
ESP32-Based Real-Time Clock Synchronization
This circuit connects an ESP32 Devkit V1 microcontroller with an RTC DS3231 real-time clock module. The ESP32 provides power to the RTC and communicates with it via I2C, with D21 and D22 serving as the data (SDA) and clock (SCL) lines, respectively. The common ground (GND) ensures a reference point for the voltages, and the 3V3 pin from the ESP32 powers the RTC module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of DS: A project utilizing DS3231 RTC in a practical application
Dual RTC DS3231 Synchronization with Glyph C3 Microcontroller
This circuit integrates two RTC DS3231 real-time clock modules with a Glyph C3 microcontroller. The RTC modules are connected to the microcontroller via I2C communication protocol, using the SCL and SDA lines for clock and data respectively. Both RTC modules and the microcontroller share a common power supply (3V3) and ground (GND), indicating that they operate at the same voltage level.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of RTC: A project utilizing DS3231 RTC in a practical application
ESP32-Based Real-Time Clock Synchronization
This circuit connects an ESP32 microcontroller to a DS3231 Real Time Clock (RTC) module. The ESP32's Vin and GND pins are connected to the VCC and GND pins of the DS3231, providing power to the RTC. The SCL and SDA pins of the DS3231 are connected to the D22 and D21 pins of the ESP32, respectively, enabling I2C communication between the microcontroller and the RTC module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of RTC: A project utilizing DS3231 RTC in a practical application
Arduino UNO with RTC DS3231 Timekeeping
This circuit connects an Arduino UNO microcontroller with a DS3231 Real Time Clock (RTC) module. The Arduino provides 5V power and ground to the RTC and communicates with it via the I2C protocol using the A4 (SDA) and A5 (SCL) pins. The embedded code on the Arduino is used to initialize the RTC, check for power loss, set the current time if needed, and periodically read and print the current time to the serial monitor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Timekeeping in embedded systems
  • Data logging with timestamps
  • Alarm systems and event scheduling
  • Home automation and IoT devices
  • Wearable electronics

Technical Specifications

The DS3231 RTC module offers the following key technical details:

Parameter Value
Supply Voltage (Vcc) 2.3V to 5.5V
Timekeeping Accuracy ±2 ppm (0°C to +40°C)
Communication Interface I2C (2-wire)
Operating Temperature Range -40°C to +85°C
Backup Battery Voltage 2.3V to 3.7V (e.g., CR2032 coin cell)
Oscillator Built-in temperature-compensated crystal
Alarm Functions 2 programmable alarms
Memory 236 bytes of non-volatile RAM

Pin Configuration and Descriptions

The DS3231 module typically has 6 pins. Below is the pinout and description:

Pin Name Description
1 GND Ground connection
2 VCC Power supply input (2.3V to 5.5V)
3 SDA Serial Data Line for I2C communication
4 SCL Serial Clock Line for I2C communication
5 32K Optional 32.768 kHz output (can be used as a clock signal for other devices)
6 SQW Square Wave output (programmable frequency: 1Hz, 4kHz, 8kHz, or 32kHz)

Usage Instructions

How to Use the DS3231 in a Circuit

  1. Power the Module: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
  2. I2C Communication: Connect the SDA and SCL pins to the corresponding I2C pins on your microcontroller. For an Arduino UNO:
    • SDA connects to A4.
    • SCL connects to A5.
  3. Backup Battery: Insert a CR2032 coin cell battery into the module's battery holder to maintain timekeeping during power loss.
  4. Optional Outputs:
    • Use the SQW pin for a programmable square wave signal.
    • Use the 32K pin if you need a 32.768 kHz clock signal.

Important Considerations and Best Practices

  • Pull-Up Resistors: Ensure that the I2C lines (SDA and SCL) have pull-up resistors (typically 4.7kΩ). Some modules include these resistors by default.
  • Battery Backup: Always use a backup battery to maintain timekeeping during power interruptions.
  • I2C Address: The default I2C address of the DS3231 is 0x68. Ensure no other devices on the I2C bus share this address.
  • Temperature Compensation: The DS3231 automatically adjusts for temperature variations, so no external calibration is needed.

Example Code for Arduino UNO

Below is an example of how to interface the DS3231 with an Arduino UNO to read the current time and date:

#include <Wire.h>
#include <RTClib.h> // Include the Adafruit RTC library

RTC_DS3231 rtc; // Create an RTC object

void setup() {
  Serial.begin(9600); // Initialize serial communication
  Wire.begin();       // Initialize I2C communication

  if (!rtc.begin()) {
    // Check if the RTC is connected
    Serial.println("Couldn't find RTC. Check connections!");
    while (1); // Halt the program if RTC is not found
  }

  if (rtc.lostPower()) {
    // Check if the RTC lost power and set the time if necessary
    Serial.println("RTC lost power, setting the time!");
    rtc.adjust(DateTime(F(__DATE__), F(__TIME__)));
    // Sets the RTC to the date & time of the sketch compilation
  }
}

void loop() {
  DateTime now = rtc.now(); // Get the current time and date

  // Print the current time and date to the Serial Monitor
  Serial.print(now.year(), DEC);
  Serial.print('/');
  Serial.print(now.month(), DEC);
  Serial.print('/');
  Serial.print(now.day(), DEC);
  Serial.print(" ");
  Serial.print(now.hour(), DEC);
  Serial.print(':');
  Serial.print(now.minute(), DEC);
  Serial.print(':');
  Serial.print(now.second(), DEC);
  Serial.println();

  delay(1000); // Wait for 1 second before updating
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. RTC Not Detected:

    • Cause: Incorrect wiring or I2C address conflict.
    • Solution: Double-check the connections and ensure the I2C address is 0x68.
  2. Incorrect Time/Date:

    • Cause: RTC lost power or was not initialized properly.
    • Solution: Use the rtc.adjust() function to set the correct time and date.
  3. No Output on Serial Monitor:

    • Cause: Serial communication not initialized or incorrect baud rate.
    • Solution: Ensure Serial.begin(9600) is called in setup() and the Serial Monitor is set to 9600 baud.
  4. Square Wave Output Not Working:

    • Cause: SQW pin not configured.
    • Solution: Use the appropriate library function to enable and configure the square wave output.

FAQs

Q: Can the DS3231 handle daylight saving time (DST)?
A: No, the DS3231 does not automatically adjust for DST. You must implement DST adjustments in your code.

Q: How long does the backup battery last?
A: A typical CR2032 battery can last several years, depending on usage and environmental conditions.

Q: Can I use the DS3231 with a 3.3V microcontroller?
A: Yes, the DS3231 is compatible with both 3.3V and 5V systems.

Q: What happens if the backup battery is not installed?
A: The RTC will lose track of time when the main power supply is disconnected.
