How to Use adaptor 12v: Examples, Pinouts, and Specs

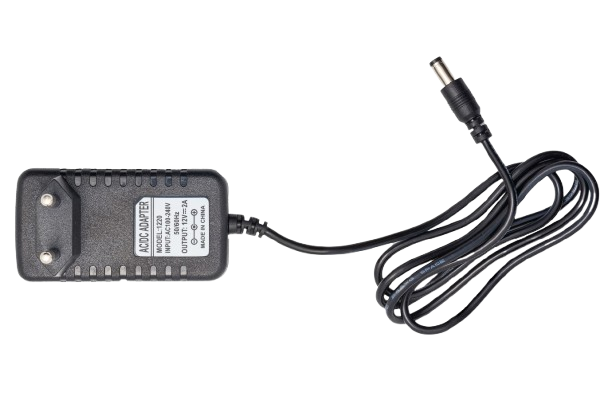

The Adaptor 12V by Power (Manufacturer Part ID: Power) is a device designed to convert electrical power from a standard AC outlet (typically 110V or 220V, depending on the region) into a stable 12-volt DC output. This adaptor is widely used to power a variety of electronic devices, including routers, LED strips, small appliances, and DIY electronics projects.

• Powering LED lighting systems
• Supplying power to routers, modems, and other networking equipment
• Driving small DC motors or actuators
• Providing a stable power source for Arduino or Raspberry Pi projects
• Charging or powering portable devices that require a 12V input

The following table outlines the key technical details of the Adaptor 12V:

The Adaptor 12V typically uses a barrel jack connector. The pin configuration is as follows:

1. Verify Compatibility: Ensure the device you are powering requires a 12V DC input and does not exceed the adaptor's current rating (e.g., 1A, 2A, or 5A).
2. Connect the Barrel Jack: Insert the barrel jack into the power input port of your device. Ensure the polarity matches (center positive).
3. Plug into an AC Outlet: Connect the adaptor to a standard AC outlet (100-240V, 50/60Hz).
4. Power On the Device: Turn on the device, if applicable, and verify it is functioning correctly.

• Check Polarity: Always confirm the polarity of the barrel jack matches the device's requirements. Reversed polarity can damage the device.
• Avoid Overloading: Do not connect devices that draw more current than the adaptor's rated output (e.g., 5A for a 60W adaptor).
• Ventilation: Ensure the adaptor has adequate ventilation to prevent overheating during prolonged use.
• Use a Surge Protector: To protect the adaptor and connected devices from power surges, consider using a surge protector.

The Adaptor 12V can be used to power an Arduino UNO via its DC barrel jack. The Arduino UNO has an onboard voltage regulator that steps down the 12V input to 5V for internal use.

// This example code demonstrates a simple LED blink program
// Ensure the Arduino UNO is powered using the 12V adaptor connected to the DC jack

const int ledPin = 13; // Pin 13 is connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

1. Can I use this adaptor with a device that requires less than 12V?

   • No, using a 12V adaptor with a device that requires a lower voltage can damage the device. Use a voltage regulator or a compatible adaptor.

2. What happens if I exceed the current rating of the adaptor?

   • The adaptor may overheat, shut down, or fail. Always ensure the connected device's current draw is within the adaptor's rated capacity.

3. Is the adaptor waterproof?

   • No, the Adaptor 12V is not waterproof. Avoid exposing it to moisture or liquids.

4. Can I use this adaptor with a battery-powered device?

   • Yes, as long as the device accepts a 12V DC input and the polarity matches.

By following these guidelines and best practices, you can safely and effectively use the Adaptor 12V for a wide range of applications.
