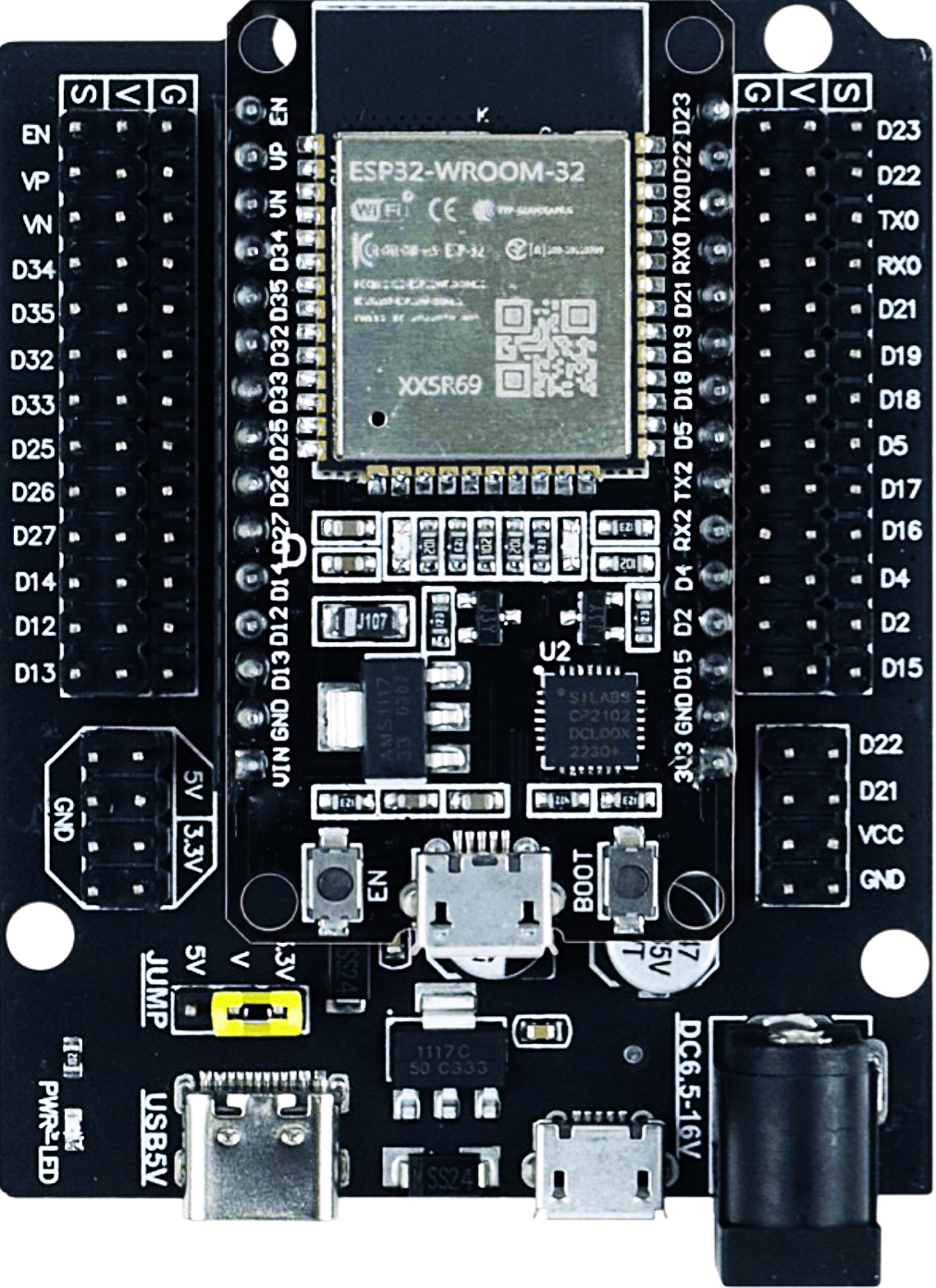

Image of ESP-32 DEVKIT-V1 with Expansion Board
Cirkit Designer LogoDesign with ESP-32 DEVKIT-V1 with Expansion Board in Cirkit Designer

Introduction

The ESP-32 DEVKIT-V1 with Expansion Board, manufactured by Espressif, is a powerful and versatile development board designed for IoT (Internet of Things) applications. It features the ESP32 chip, which integrates Wi-Fi and Bluetooth capabilities, making it ideal for wireless communication projects. The expansion board enhances the functionality of the ESP32 by providing additional GPIO pins, sensor interfaces, and prototyping-friendly features.

Explore Projects Built with ESP-32 DEVKIT-V1 with Expansion Board

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based Environmental Monitoring and Alert System with Solar Charging
Image of mark: A project utilizing ESP-32 DEVKIT-V1 with Expansion Board in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to various sensors and modules for monitoring and communication purposes. It includes an MQ-2 gas sensor and a DHT11 temperature and humidity sensor, both interfaced with the ESP32 for environmental data collection. The circuit is powered by a 12V battery, regulated to 5V by step-down converters, and includes a solar charge controller connected to a solar panel for battery charging, a UPS module for power management, and a SIM900A module for GSM communication. Additionally, there is a WS2812 RGB LED strip for visual feedback and a piezo buzzer for audio alerts, both controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 and Logic Level Converter-Based Wi-Fi Controlled Interface
Image of Toshiba AC ESP32 devkit v1: A project utilizing ESP-32 DEVKIT-V1 with Expansion Board in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to a Bi-Directional Logic Level Converter, which facilitates voltage level shifting between the ESP32 and external components. The ESP32 is powered through its VIN pin via an alligator clip cable, and the logic level converter is connected to various pins on the ESP32 to manage different voltage levels for communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Agriculture System with LoRa Communication
Image of Soil Monitoring Device: A project utilizing ESP-32 DEVKIT-V1 with Expansion Board in a practical application
This circuit features an ESP32 Devkit V1 microcontroller as the central processing unit, interfacing with various sensors including a PH Meter, an NPK Soil Sensor, and a Soil Moisture Sensor for environmental data collection. It also includes an EBYTE LoRa E220 module for wireless communication. Power management is handled by a Step Up Boost Power Converter, which is connected to a 12V Battery, stepping up the voltage to power the ESP32 and sensors, with common ground connections throughout the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Monitoring and Alert System with Solar Charging
Image of Schematic: A project utilizing ESP-32 DEVKIT-V1 with Expansion Board in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to various sensors and devices, including a DHT11 temperature and humidity sensor, an MQ-2 gas sensor, and a WS2812 RGB LED strip. The ESP32 controls the LED strip and processes sensor readings, while a SIM900A module provides cellular communication capabilities. Power management is handled by a UPS module fed by a 12V battery charged via a solar panel and charge controller, with voltage regulation provided by step-down converters. Additionally, a piezo buzzer is included for audible alerts, and the system's safety is ensured by a circuit breaker connected to a switching power supply for AC to DC conversion.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP-32 DEVKIT-V1 with Expansion Board

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of mark: A project utilizing ESP-32 DEVKIT-V1 with Expansion Board in a practical application
ESP32-Based Environmental Monitoring and Alert System with Solar Charging
This circuit features an ESP32 Devkit V1 microcontroller connected to various sensors and modules for monitoring and communication purposes. It includes an MQ-2 gas sensor and a DHT11 temperature and humidity sensor, both interfaced with the ESP32 for environmental data collection. The circuit is powered by a 12V battery, regulated to 5V by step-down converters, and includes a solar charge controller connected to a solar panel for battery charging, a UPS module for power management, and a SIM900A module for GSM communication. Additionally, there is a WS2812 RGB LED strip for visual feedback and a piezo buzzer for audio alerts, both controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Toshiba AC ESP32 devkit v1: A project utilizing ESP-32 DEVKIT-V1 with Expansion Board in a practical application
ESP32 and Logic Level Converter-Based Wi-Fi Controlled Interface
This circuit features an ESP32 Devkit V1 microcontroller connected to a Bi-Directional Logic Level Converter, which facilitates voltage level shifting between the ESP32 and external components. The ESP32 is powered through its VIN pin via an alligator clip cable, and the logic level converter is connected to various pins on the ESP32 to manage different voltage levels for communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Soil Monitoring Device: A project utilizing ESP-32 DEVKIT-V1 with Expansion Board in a practical application
ESP32-Based Smart Agriculture System with LoRa Communication
This circuit features an ESP32 Devkit V1 microcontroller as the central processing unit, interfacing with various sensors including a PH Meter, an NPK Soil Sensor, and a Soil Moisture Sensor for environmental data collection. It also includes an EBYTE LoRa E220 module for wireless communication. Power management is handled by a Step Up Boost Power Converter, which is connected to a 12V Battery, stepping up the voltage to power the ESP32 and sensors, with common ground connections throughout the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Schematic: A project utilizing ESP-32 DEVKIT-V1 with Expansion Board in a practical application
ESP32-Based Environmental Monitoring and Alert System with Solar Charging
This circuit features an ESP32 Devkit V1 microcontroller connected to various sensors and devices, including a DHT11 temperature and humidity sensor, an MQ-2 gas sensor, and a WS2812 RGB LED strip. The ESP32 controls the LED strip and processes sensor readings, while a SIM900A module provides cellular communication capabilities. Power management is handled by a UPS module fed by a 12V battery charged via a solar panel and charge controller, with voltage regulation provided by step-down converters. Additionally, a piezo buzzer is included for audible alerts, and the system's safety is ensured by a circuit breaker connected to a switching power supply for AC to DC conversion.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices and smart home automation
  • Wireless sensor networks
  • Wearable technology
  • Robotics and automation systems
  • Prototyping and educational projects

Technical Specifications

Key Technical Details

Parameter Specification
Microcontroller ESP32 (dual-core Xtensa LX6 processor)
Clock Speed Up to 240 MHz
Flash Memory 4 MB (varies by model)
SRAM 520 KB
Wireless Connectivity Wi-Fi 802.11 b/g/n, Bluetooth 4.2 (Classic + BLE)
Operating Voltage 3.3V
Input Voltage (VIN) 5V (via USB or external power supply)
GPIO Pins 30+ (varies with expansion board)
Communication Interfaces UART, SPI, I2C, I2S, PWM, ADC, DAC
ADC Resolution 12-bit
DAC Resolution 8-bit
Power Consumption Ultra-low power modes available

Pin Configuration and Descriptions

The ESP-32 DEVKIT-V1 with Expansion Board provides a variety of pins for interfacing with peripherals. Below is the pinout description:

Pin Name Functionality Description
VIN Power Input Accepts 5V input from USB or external source
GND Ground Common ground for the circuit
3V3 Power Output Provides 3.3V output for peripherals
GPIO0 General Purpose I/O, Boot Mode Select Used for programming and boot mode selection
GPIO2 General Purpose I/O Can be used for PWM, ADC, or other functions
GPIO4 General Purpose I/O Supports ADC, PWM, and other functions
GPIO21 I2C SDA Data line for I2C communication
GPIO22 I2C SCL Clock line for I2C communication
TX0 UART Transmit Serial communication transmit pin
RX0 UART Receive Serial communication receive pin
EN Enable Resets the chip when pulled low

Note: The exact number of GPIO pins and their availability may vary depending on the expansion board configuration.

Usage Instructions

How to Use the Component in a Circuit

  1. Powering the Board:

    • Connect the board to your computer using a micro-USB cable for power and programming.
    • Alternatively, supply 5V to the VIN pin and connect GND to the ground of your power source.
  2. Programming the ESP32:

    • Install the Arduino IDE and add the ESP32 board support package.
    • Select "ESP32 Dev Module" from the Tools > Board menu in the Arduino IDE.
    • Connect the board to your computer and select the appropriate COM port.
  3. Connecting Peripherals:

    • Use the GPIO pins to connect sensors, actuators, or other peripherals.
    • Ensure that the voltage levels of connected devices are compatible with the 3.3V logic of the ESP32.
  4. Uploading Code:

    • Write your code in the Arduino IDE or another supported environment.
    • Click the upload button to flash the code to the ESP32.
    • If the upload fails, press and hold the "BOOT" button on the board while uploading.

Important Considerations and Best Practices

  • Voltage Levels: The ESP32 operates at 3.3V logic. Avoid connecting 5V signals directly to GPIO pins to prevent damage.
  • Power Supply: Use a stable power source to avoid unexpected resets or instability.
  • Boot Mode: If the board does not boot properly, check the state of GPIO0 and EN pins.
  • Wi-Fi and Bluetooth: Avoid placing the board near metal objects or enclosures that may interfere with wireless signals.

Example Code for Arduino UNO Integration

Below is an example of using the ESP32 to read data from a DHT11 temperature and humidity sensor and send it to a serial monitor:

#include <WiFi.h>
#include <DHT.h>

// Define DHT sensor type and pin
#define DHTPIN 4       // GPIO4 is connected to the DHT sensor
#define DHTTYPE DHT11  // DHT11 sensor type

DHT dht(DHTPIN, DHTTYPE);

void setup() {
  Serial.begin(115200);  // Initialize serial communication
  dht.begin();           // Initialize the DHT sensor
  Serial.println("ESP32 with DHT11 Example");
}

void loop() {
  delay(2000);  // Wait 2 seconds between readings

  // Read temperature and humidity
  float humidity = dht.readHumidity();
  float temperature = dht.readTemperature();

  // Check if readings are valid
  if (isnan(humidity) || isnan(temperature)) {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  // Print readings to the serial monitor
  Serial.print("Humidity: ");
  Serial.print(humidity);
  Serial.print("%  Temperature: ");
  Serial.print(temperature);
  Serial.println("°C");
}

Note: Ensure the DHT sensor is connected to GPIO4 and powered with 3.3V.

Troubleshooting and FAQs

Common Issues and Solutions

  1. Problem: The board is not detected by the computer.
    Solution:

    • Ensure the USB cable is functional and supports data transfer.
    • Install the correct USB-to-serial driver for the ESP32.
  2. Problem: Code upload fails with a timeout error.
    Solution:

    • Press and hold the "BOOT" button while uploading the code.
    • Check the selected COM port in the Arduino IDE.
  3. Problem: Wi-Fi connection is unstable.
    Solution:

    • Ensure the board is within range of the Wi-Fi router.
    • Avoid interference from other wireless devices.
  4. Problem: GPIO pins are not functioning as expected.
    Solution:

    • Verify the pin configuration in your code.
    • Check for conflicting pin assignments.

FAQs

  • Q: Can the ESP32 be powered with 5V?
    A: Yes, the VIN pin accepts 5V input, which is regulated to 3.3V internally.

  • Q: Does the ESP32 support simultaneous Wi-Fi and Bluetooth?
    A: Yes, the ESP32 can use both Wi-Fi and Bluetooth simultaneously.

  • Q: How do I reset the board?
    A: Press the "EN" button to reset the ESP32.

  • Q: Can I use the ESP32 with a 5V logic device?
    A: Use a level shifter to safely interface 5V logic devices with the ESP32.

This documentation provides a comprehensive guide to using the ESP-32 DEVKIT-V1 with Expansion Board for your IoT and prototyping needs.
