How to Use PLANTOWER PMS9003M Gas Sensor: Examples, Pinouts, and Specs

The PLANTOWER PMS9003M is a high-precision air quality sensor designed to measure particulate matter (PM1.0, PM2.5, and PM10) concentrations in the air. It uses laser scattering technology to provide real-time and accurate data on air pollution levels. The sensor is compact, reliable, and easy to integrate into various applications, making it ideal for environmental monitoring, air purifiers, HVAC systems, and indoor air quality monitoring devices.

• Environmental monitoring stations
• Smart home air quality systems
• Air purifiers and HVAC systems
• Industrial air quality monitoring
• IoT-based air quality monitoring networks

The following table outlines the key technical details of the PMS9003M sensor:

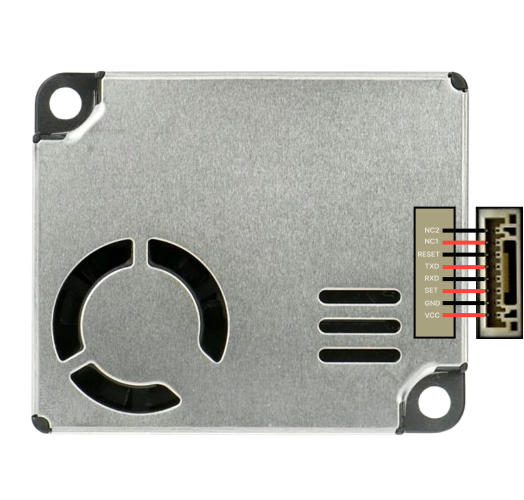

The PMS9003M sensor has a 7-pin connector for interfacing. The pin configuration is as follows:

1. Power Supply: Connect the VCC pin to a 5V DC power source and the GND pin to ground.
2. Communication Interface: Use the UART interface (RX and TX pins) to communicate with a microcontroller or computer. Ensure the UART logic level is 3.3V.
3. Sleep Mode: To conserve power, the sensor can be put into sleep mode by pulling the SET pin low. Pull it high to resume normal operation.
4. Reset: Use the RESET pin to perform a hardware reset if needed. Pull the pin low momentarily to reset the sensor.

• Placement: Install the sensor in a location with good airflow for accurate measurements. Avoid placing it near sources of vibration or strong electromagnetic interference.
• Power Supply: Use a stable 5V DC power source to ensure reliable operation.
• Warm-Up Time: Allow the sensor to warm up for at least 30 seconds after powering on for accurate readings.
• Data Filtering: Implement software filtering to smooth out noise in the sensor's output data.

Below is an example of how to interface the PMS9003M with an Arduino UNO using the UART interface:

#include <SoftwareSerial.h>

// Define RX and TX pins for SoftwareSerial
SoftwareSerial pmsSerial(10, 11); // RX = pin 10, TX = pin 11

// Buffer to store incoming data
uint8_t dataBuffer[32];

void setup() {
  Serial.begin(9600);          // Initialize Serial Monitor
  pmsSerial.begin(9600);       // Initialize PMS9003M UART communication
  Serial.println("PMS9003M Sensor Initialized");
}

void loop() {
  if (pmsSerial.available() >= 32) { // Check if 32 bytes are available
    for (int i = 0; i < 32; i++) {
      dataBuffer[i] = pmsSerial.read(); // Read data into buffer
    }

    // Validate data frame (start bytes: 0x42, 0x4D)
    if (dataBuffer[0] == 0x42 && dataBuffer[1] == 0x4D) {
      // Extract PM2.5 concentration (bytes 10 and 11)
      uint16_t pm25 = (dataBuffer[10] << 8) | dataBuffer[11];
      Serial.print("PM2.5 Concentration: ");
      Serial.print(pm25);
      Serial.println(" µg/m³");
    }
  }
}

• Connect the PMS9003M's TX pin to Arduino pin 10 (RX) and RX pin to Arduino pin 11 (TX).
• Ensure the Arduino and sensor share a common ground.

1. No Data Output:

   • Cause: Incorrect wiring or baud rate mismatch.
   • Solution: Verify the connections and ensure the UART baud rate is set to 9600.

2. Inaccurate Readings:

   • Cause: Poor sensor placement or insufficient warm-up time.
   • Solution: Place the sensor in a well-ventilated area and allow it to warm up for at least 30 seconds.

3. Sensor Not Responding:

   • Cause: Sleep mode is enabled or power supply issues.
   • Solution: Ensure the SET pin is pulled high and check the power supply voltage.

Q: Can the PMS9003M measure gases like CO2 or VOCs?
A: No, the PMS9003M is designed to measure particulate matter (PM1.0, PM2.5, and PM10) only. It does not detect gases.

Q: How often should the sensor be calibrated?
A: The PMS9003M is factory-calibrated and does not require user calibration under normal conditions.

Q: Can I use the sensor outdoors?
A: Yes, but ensure it is protected from direct exposure to rain, dust, and extreme environmental conditions.

Q: What is the lifespan of the PMS9003M?
A: The sensor has an estimated lifespan of 3 years under normal operating conditions.
