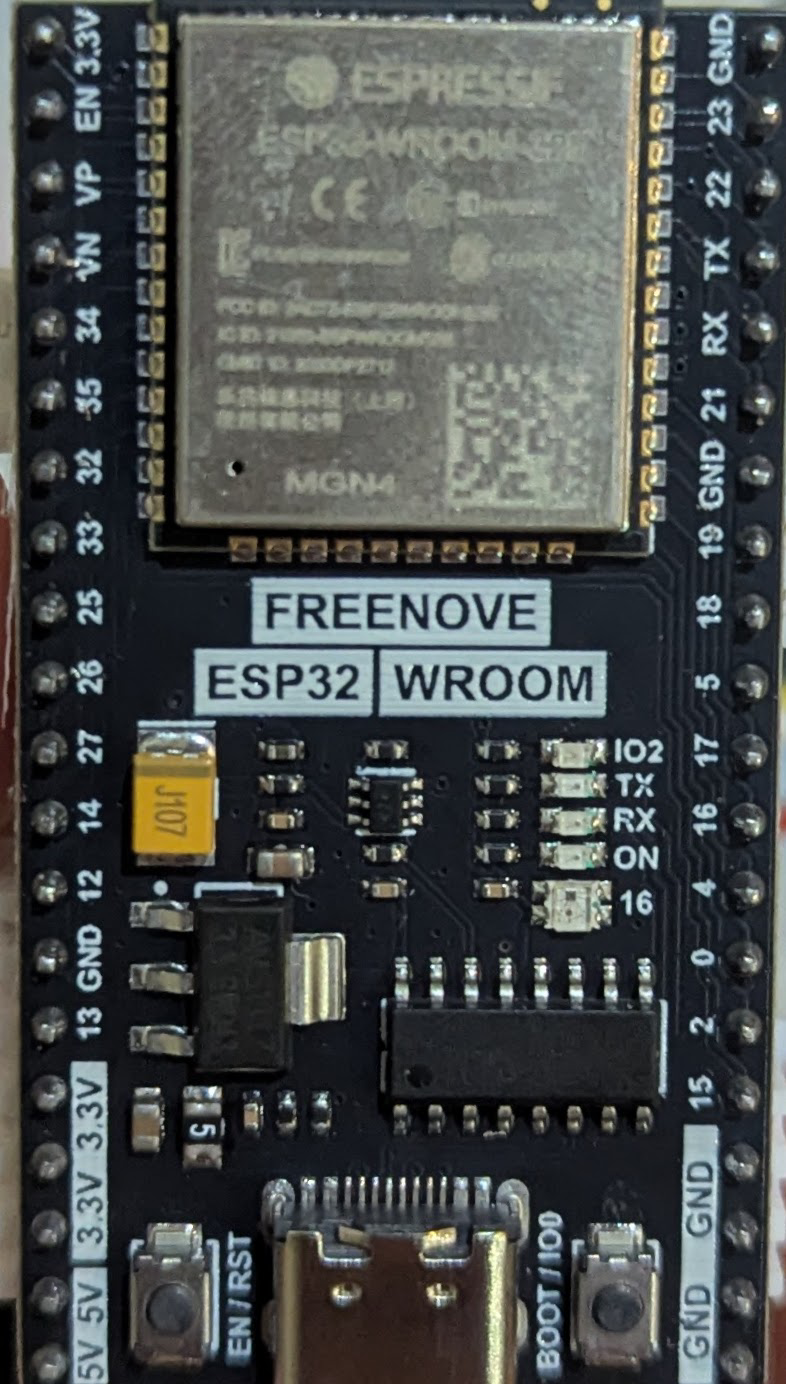

The ESP32-WROOM is a powerful microcontroller module with integrated Wi-Fi and Bluetooth capabilities, designed for Internet of Things (IoT) applications. It features a dual-core processor, ample GPIO pins, and supports various communication protocols, making it ideal for smart devices and wireless projects. Its compact size and robust performance make it a popular choice for developers working on connected devices, home automation, and industrial IoT solutions.
Explore Projects Built with esp32wroom
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
This circuit integrates a Raspberry Pi Pico and an ESP32 Wroom Dev Kit, interconnected through various GPIO pins and resistors, to enable communication and control between the two microcontrollers. The ESP32 is powered by a 3.3V supply and shares ground with the Raspberry Pi Pico, while specific GPIO pins are used for data exchange. The provided code sketches for the Raspberry Pi Pico suggest a framework for further development of the system's functionality.
This circuit connects an ESP32 Wroom microcontroller to a Micro SD Card Module, enabling the ESP32 to read from and write to the SD card. The connections include SPI communication lines (CS, SCK, MOSI, MISO) and power lines (VCC, GND).
This circuit features an ESP32-WROOM-32UE microcontroller as the central processing unit, interfacing with a variety of sensors and modules. It includes a MAX30100 pulse oximeter and heart-rate sensor, an MLX90614 infrared thermometer, an HC-05 Bluetooth module for wireless communication, and a Neo 6M GPS module for location tracking. All components are powered by a common voltage supply and are connected to specific GPIO pins on the ESP32 for data exchange, with the sensors using I2C communication and the modules using UART.
Boot mode selection pin (used during flashing firmware)
Note: Some GPIO pins have specific restrictions or are reserved for internal functions. Refer to the ESP32 datasheet for detailed pin multiplexing information.
Usage Instructions
How to Use the ESP32-WROOM in a Circuit
Power Supply: Provide a stable 3.3V power supply to the 3V3 pin. Ensure the current rating of the power source meets the module's requirements.
Boot Mode: To flash firmware, connect GPIO0 to GND and reset the module. After flashing, disconnect GPIO0 from GND.
Serial Communication: Use the UART pins (TXD0, RXD0) to communicate with a computer or other devices via a USB-to-serial adapter.
Programming: The ESP32-WROOM can be programmed using the Arduino IDE, ESP-IDF, or other compatible environments.
Peripherals: Connect sensors, actuators, or other peripherals to the GPIO pins. Use appropriate pull-up or pull-down resistors if required.
Example: Connecting ESP32-WROOM to an Arduino UNO
The ESP32-WROOM can be programmed directly using the Arduino IDE. Below is an example of a simple program to blink an LED connected to GPIO2:
// Simple LED Blink Example for ESP32-WROOM
// Connect an LED to GPIO2 with a suitable resistor (e.g., 220 ohms)
#define LED_PIN 2 // Define the GPIO pin for the LED
void setup() {
pinMode(LED_PIN, OUTPUT); // Set GPIO2 as an output pin
}
void loop() {
digitalWrite(LED_PIN, HIGH); // Turn the LED on
delay(1000); // Wait for 1 second
digitalWrite(LED_PIN, LOW); // Turn the LED off
delay(1000); // Wait for 1 second
}
Best Practices:
Use a level shifter if interfacing with 5V logic devices, as the ESP32 operates at 3.3V logic levels.
Avoid using GPIO6-GPIO11 as they are connected to the internal flash memory.
Use decoupling capacitors near the power pins to ensure stable operation.
For Wi-Fi applications, ensure the antenna area is free from obstructions for optimal signal strength.
Troubleshooting and FAQs
Common Issues and Solutions
ESP32-WROOM Not Responding:
Ensure the module is powered correctly (3.3V supply).
Check the connections to the UART pins for programming.
Verify that GPIO0 is connected to GND during firmware flashing.
Wi-Fi Connection Fails:
Verify the SSID and password in your code.
Ensure the Wi-Fi network is within range and not using unsupported security protocols.
Module Overheating:
Check for excessive current draw from peripherals.
Ensure proper ventilation and avoid short circuits.
GPIO Pins Not Working:
Confirm the pin is not reserved for internal functions.
Check for proper pull-up or pull-down resistors if required.
FAQs
Q: Can the ESP32-WROOM operate on 5V?
A: No, the ESP32-WROOM operates at 3.3V. Use a voltage regulator or level shifter when interfacing with 5V systems.
Q: How do I reset the ESP32-WROOM?
A: Pull the EN pin low momentarily to reset the module.
Q: Can I use the ESP32-WROOM for Bluetooth and Wi-Fi simultaneously?
A: Yes, the ESP32 supports simultaneous use of Bluetooth and Wi-Fi, but performance may vary depending on the application.
Q: What is the maximum range of the ESP32-WROOM's Wi-Fi?
A: The range depends on environmental factors but typically extends up to 100 meters in open spaces.
By following this documentation, you can effectively integrate the ESP32-WROOM into your projects and troubleshoot common issues.
