How to Use Universal Barrel Jack Male: Examples, Pinouts, and Specs

Introduction

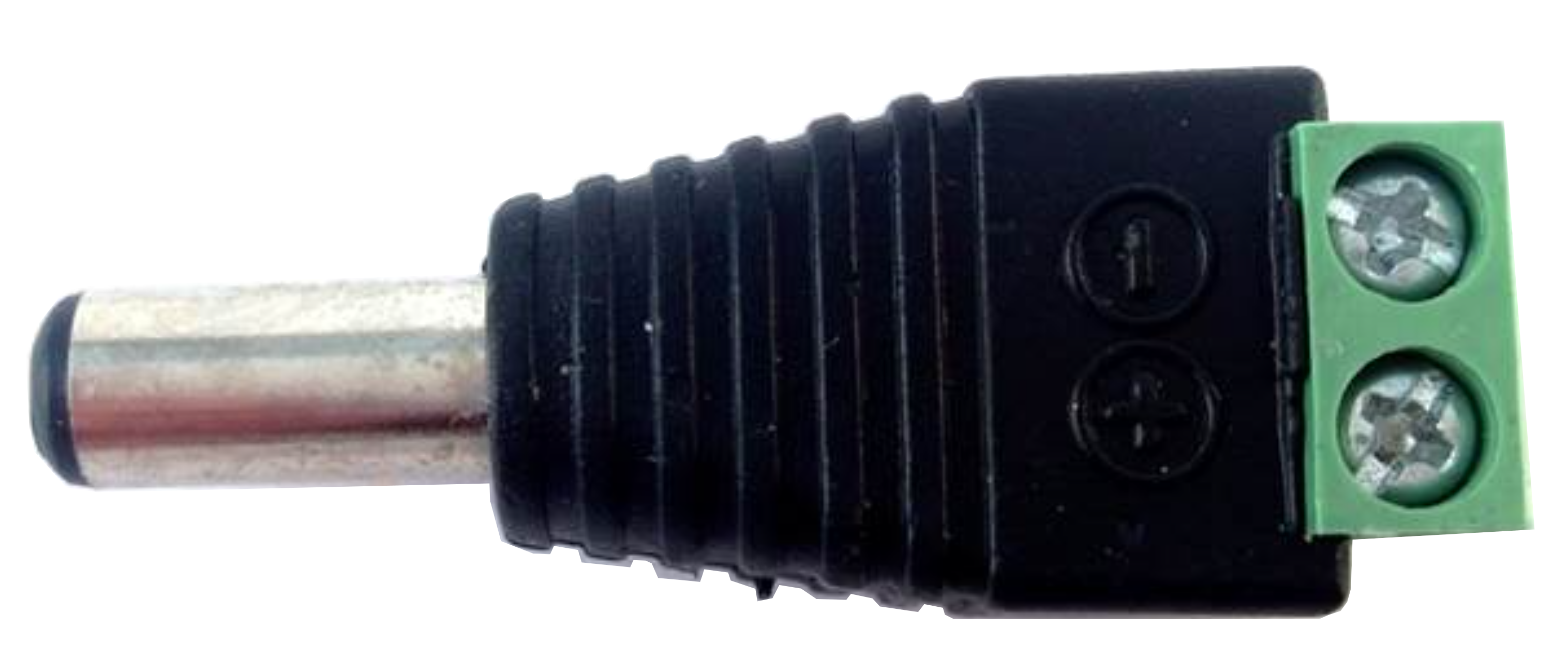

The Universal Barrel Jack Male is a cylindrical power connector designed for reliable and secure power supply connections. It features a central pin for positive voltage and an outer sleeve for ground, making it a widely used component in electronic devices. This connector is ideal for providing DC power to a variety of circuits and devices, including development boards, small appliances, and DIY electronics projects.

Explore Projects Built with Universal Barrel Jack Male

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

Multi-Channel Load Cell Measurement System with JYS60 Amplifiers and DAQ Integration

This is a multi-channel load cell measurement system with several JYS60 amplifiers connected to load cells for weight or force sensing. The amplified signals are directed to a DAQ system for data capture, and power is supplied through a barrel jack. Grounding is achieved via an AdaGator Side Black component.

Open Project in Cirkit Designer

Battery-Powered Multi-Voltage Supply with Barrel Jack Connectors

This circuit consists of multiple 9V batteries connected in series and parallel configurations to provide power to three separate 2.1mm barrel jacks. Each barrel jack receives a different combination of series and parallel battery connections to achieve the desired voltage and current levels.

Open Project in Cirkit Designer

Battery-Powered UPS System with Waveshare UPS 3S and Solar Charger

This circuit is a power management system that integrates a 12V power supply, a solar charger power bank, and multiple Li-ion batteries to provide a stable power output. The Waveshare UPS 3S manages the input from the power sources and batteries, ensuring continuous power delivery. The MRB045 module is used to interface the solar charger with the rest of the system.

Open Project in Cirkit Designer

Arduino Mega 2560-Based Reverse Vending Machine with GSM and Wi-Fi Connectivity

This circuit is a reverse vending machine for plastic bottles and cans, utilizing an Arduino Mega 2560 to interface with various sensors and actuators. It includes ultrasonic sensors for distance measurement, a load cell for weight measurement, micro servos for actuation, and a GSM module for communication. The system also features an LCD display for user interaction and uses inductive and photoelectric sensors for object detection.

Open Project in Cirkit Designer

Common Applications and Use Cases

• Powering development boards such as Arduino, Raspberry Pi (via adapters), and other microcontrollers.
• Supplying power to small electronic devices like routers, modems, and LED strips.
• DIY electronics projects requiring a standard DC power input.
• Prototyping circuits with external power supplies.

Technical Specifications

Below are the key technical details for the Universal Barrel Jack Male:

Pin Configuration and Descriptions

The Universal Barrel Jack Male has two main contact points:

Usage Instructions

How to Use the Component in a Circuit

1. Identify the Polarity: Ensure that the power supply matches the polarity of the barrel jack. The center pin is typically positive, and the outer sleeve is ground.
2. Connect to a Power Source: Insert the barrel jack into a compatible female connector or solder the wires to the appropriate terminals.
3. Verify Voltage and Current: Ensure the power supply voltage and current ratings are within the component's specifications (e.g., up to 24V DC and 5A).
4. Secure the Connection: If soldering, use heat shrink tubing or electrical tape to insulate the connections and prevent short circuits.

Important Considerations and Best Practices

• Polarity Check: Always double-check the polarity of the power supply to avoid damaging your circuit.
• Avoid Overloading: Do not exceed the voltage or current ratings of the barrel jack to prevent overheating or failure.
• Use Proper Tools: When soldering, use a soldering iron with a fine tip and ensure clean, secure connections.
• Compatibility: Ensure the barrel jack dimensions (5.5 mm outer diameter, 2.1 mm inner diameter) match the female connector or device input.

Example: Connecting to an Arduino UNO

The Universal Barrel Jack Male can be used to power an Arduino UNO via its DC power input. Below is an example of how to connect it:

1. Connect the center pin of the barrel jack to the positive terminal of a 9V DC power supply.
2. Connect the outer sleeve to the ground terminal of the power supply.
3. Insert the barrel jack into the Arduino UNO's DC input port.

Arduino Code Example

If you're powering an Arduino UNO with the barrel jack, you can upload the following code to test the setup by blinking an LED:

// This code blinks the onboard LED on pin 13 of the Arduino UNO.
// Ensure the Arduino is powered via the barrel jack with a 9V DC supply.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues Users Might Face

1. Loose Connection: The barrel jack may not fit securely into the female connector.

   • Solution: Ensure the dimensions of the barrel jack match the female connector. Replace the connector if necessary.

2. Incorrect Polarity: Connecting the power supply with reversed polarity can damage the circuit.

   • Solution: Use a multimeter to verify the polarity of the power supply before connecting.

3. Overheating: The barrel jack becomes hot during operation.

   • Solution: Check that the voltage and current do not exceed the component's ratings. Ensure proper ventilation.

4. No Power to the Circuit: The device does not power on after connecting the barrel jack.

   • Solution: Verify the power supply is functioning correctly and that the connections are secure.

FAQs

Q: Can I use this barrel jack for AC power?
A: No, the Universal Barrel Jack Male is designed for DC power only. Using it with AC power can damage the component and connected devices.

Q: What is the maximum cable length I can use with this barrel jack?
A: The maximum cable length depends on the current draw of your circuit and the wire gauge. For low current applications, a cable length of up to 2 meters is generally acceptable.

Q: Is this barrel jack waterproof?
A: No, the Universal Barrel Jack Male is not waterproof. Avoid using it in environments with high humidity or exposure to water.

Q: Can I use this barrel jack with a 12V battery?
A: Yes, as long as the battery's voltage and current output are within the component's specifications (up to 24V DC and 5A).
