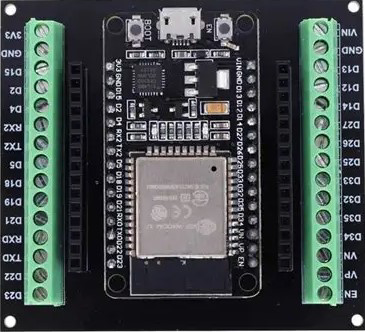

Image of ESP32 DEV KIT + Board PCB
Cirkit Designer LogoDesign with ESP32 DEV KIT + Board PCB in Cirkit Designer

Introduction

The ESP32 DEV KIT + Board PCB is a development board based on the ESP32 microcontroller, manufactured by ESP32. It is designed for prototyping and building IoT (Internet of Things) applications. The ESP32 microcontroller features dual-core processing, integrated Wi-Fi, and Bluetooth capabilities, making it a versatile and powerful solution for a wide range of projects.

Explore Projects Built with ESP32 DEV KIT + Board PCB

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor
Image of gps projekt circuit: A project utilizing ESP32 DEV KIT + Board PCB in a practical application
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 and Logic Level Converter-Based Wi-Fi Controlled Interface
Image of Toshiba AC ESP32 devkit v1: A project utilizing ESP32 DEV KIT + Board PCB in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to a Bi-Directional Logic Level Converter, which facilitates voltage level shifting between the ESP32 and external components. The ESP32 is powered through its VIN pin via an alligator clip cable, and the logic level converter is connected to various pins on the ESP32 to manage different voltage levels for communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Agriculture System with LoRa Communication
Image of Soil Monitoring Device: A project utilizing ESP32 DEV KIT + Board PCB in a practical application
This circuit features an ESP32 Devkit V1 microcontroller as the central processing unit, interfacing with various sensors including a PH Meter, an NPK Soil Sensor, and a Soil Moisture Sensor for environmental data collection. It also includes an EBYTE LoRa E220 module for wireless communication. Power management is handled by a Step Up Boost Power Converter, which is connected to a 12V Battery, stepping up the voltage to power the ESP32 and sensors, with common ground connections throughout the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 Devkit V1 and OLED Display Bitmap Viewer
Image of Esp32_monochromeimage: A project utilizing ESP32 DEV KIT + Board PCB in a practical application
This circuit consists of an ESP32 Devkit V1 microcontroller connected to a 1.3" OLED display via I2C communication. The ESP32 initializes the OLED display and renders a predefined bitmap image on it.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP32 DEV KIT + Board PCB

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of gps projekt circuit: A project utilizing ESP32 DEV KIT + Board PCB in a practical application
ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Toshiba AC ESP32 devkit v1: A project utilizing ESP32 DEV KIT + Board PCB in a practical application
ESP32 and Logic Level Converter-Based Wi-Fi Controlled Interface
This circuit features an ESP32 Devkit V1 microcontroller connected to a Bi-Directional Logic Level Converter, which facilitates voltage level shifting between the ESP32 and external components. The ESP32 is powered through its VIN pin via an alligator clip cable, and the logic level converter is connected to various pins on the ESP32 to manage different voltage levels for communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Soil Monitoring Device: A project utilizing ESP32 DEV KIT + Board PCB in a practical application
ESP32-Based Smart Agriculture System with LoRa Communication
This circuit features an ESP32 Devkit V1 microcontroller as the central processing unit, interfacing with various sensors including a PH Meter, an NPK Soil Sensor, and a Soil Moisture Sensor for environmental data collection. It also includes an EBYTE LoRa E220 module for wireless communication. Power management is handled by a Step Up Boost Power Converter, which is connected to a 12V Battery, stepping up the voltage to power the ESP32 and sensors, with common ground connections throughout the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Esp32_monochromeimage: A project utilizing ESP32 DEV KIT + Board PCB in a practical application
ESP32 Devkit V1 and OLED Display Bitmap Viewer
This circuit consists of an ESP32 Devkit V1 microcontroller connected to a 1.3" OLED display via I2C communication. The ESP32 initializes the OLED display and renders a predefined bitmap image on it.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices and smart home automation
  • Wireless sensor networks
  • Wearable technology
  • Robotics and control systems
  • Data logging and remote monitoring
  • Prototyping for Wi-Fi and Bluetooth-enabled devices

Technical Specifications

The following table outlines the key technical specifications of the ESP32 DEV KIT + Board PCB:

Specification Details
Microcontroller ESP32 (dual-core, 32-bit Xtensa LX6 processor)
Clock Speed Up to 240 MHz
Flash Memory 4 MB (varies by model)
SRAM 520 KB
Wireless Connectivity Wi-Fi 802.11 b/g/n, Bluetooth v4.2 + BLE
Operating Voltage 3.3V
Input Voltage (VIN) 5V (via USB or external power supply)
GPIO Pins 30 to 38 (varies by board version)
ADC Channels 18 (12-bit resolution)
DAC Channels 2
Communication Interfaces UART, SPI, I2C, I2S, CAN, PWM
Power Consumption Ultra-low power consumption in deep sleep mode (as low as 10 µA)
Dimensions Approximately 54 mm x 27 mm

Pin Configuration and Descriptions

The ESP32 DEV KIT + Board PCB typically features a 38-pin layout. Below is a table describing the key pins:

Pin Function
VIN Input voltage (5V) for powering the board
GND Ground
3V3 3.3V output from the onboard voltage regulator
EN Enable pin (active high, used to reset the chip)
IO0 GPIO0 (used for boot mode selection during programming)
IO2, IO4, IO5 General-purpose input/output pins
IO12-IO15 GPIO pins with ADC and PWM capabilities
IO16-IO39 Additional GPIO pins with various functionalities
TXD0, RXD0 UART0 transmit and receive pins
SCL, SDA I2C clock and data pins
SPI Pins MOSI, MISO, SCK, CS (used for SPI communication)
DAC1, DAC2 Digital-to-analog converter pins
A0-A17 ADC pins for analog input
BOOT Boot mode selection pin (used during flashing firmware)

Note: Pin availability and functionality may vary slightly depending on the specific ESP32 DEV KIT model.

Usage Instructions

How to Use the ESP32 DEV KIT + Board PCB in a Circuit

  1. Powering the Board:

    • Connect the board to a computer or USB power source using a micro-USB cable.
    • Alternatively, supply 5V to the VIN pin and connect GND to the ground.
  2. Programming the Board:

    • Install the Arduino IDE and add the ESP32 board support package.
    • Select the appropriate ESP32 board model under Tools > Board.
    • Connect the board to your computer and select the correct COM port.
    • Write or upload your code to the board.
  3. Connecting Peripherals:

    • Use GPIO pins to connect sensors, actuators, or other peripherals.
    • Ensure that the voltage levels of connected devices are compatible with the ESP32 (3.3V logic).
  4. Wi-Fi and Bluetooth Setup:

    • Use the ESP32's built-in libraries (e.g., WiFi.h and BluetoothSerial.h) to configure wireless communication.

Important Considerations and Best Practices

  • Voltage Levels: Avoid applying voltages higher than 3.3V to GPIO pins to prevent damage.
  • Power Supply: Use a stable power source to ensure reliable operation, especially when using Wi-Fi or Bluetooth.
  • Deep Sleep Mode: Utilize the deep sleep mode for battery-powered applications to conserve energy.
  • Boot Mode: If the board does not enter programming mode, press and hold the BOOT button while uploading code.

Example Code for Arduino UNO Integration

Below is an example of using the ESP32 DEV KIT to connect to a Wi-Fi network and print the IP address:

#include <WiFi.h> // Include the WiFi library for ESP32

const char* ssid = "Your_SSID";       // Replace with your Wi-Fi network name
const char* password = "Your_Password"; // Replace with your Wi-Fi password

void setup() {
  Serial.begin(115200); // Initialize serial communication at 115200 baud
  delay(1000);          // Wait for a moment to stabilize

  Serial.println("Connecting to Wi-Fi...");
  WiFi.begin(ssid, password); // Start connecting to the Wi-Fi network

  while (WiFi.status() != WL_CONNECTED) {
    delay(500); // Wait until the connection is established
    Serial.print(".");
  }

  Serial.println("\nWi-Fi connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP()); // Print the assigned IP address
}

void loop() {
  // Add your main code here
}

Tip: Replace Your_SSID and Your_Password with your Wi-Fi credentials.

Troubleshooting and FAQs

Common Issues and Solutions

  1. Board Not Detected by Computer:

    • Ensure the USB cable is functional and supports data transfer.
    • Install the correct USB-to-serial driver for the ESP32 DEV KIT.
  2. Code Upload Fails:

    • Check that the correct board and COM port are selected in the Arduino IDE.
    • Press and hold the BOOT button while uploading the code.
  3. Wi-Fi Connection Issues:

    • Verify the SSID and password are correct.
    • Ensure the Wi-Fi network is within range and operational.
  4. GPIO Pin Malfunction:

    • Confirm that the pin is not being used for another function (e.g., boot mode).
    • Avoid exceeding the 3.3V logic level on GPIO pins.

FAQs

  • Q: Can the ESP32 DEV KIT operate on battery power?
    A: Yes, you can power the board using a 3.7V LiPo battery connected to the VIN and GND pins.

  • Q: How do I reset the ESP32 DEV KIT?
    A: Press the EN (enable) button to reset the board.

  • Q: Can I use the ESP32 DEV KIT with other IDEs?
    A: Yes, the ESP32 is compatible with other IDEs like PlatformIO and Espressif's ESP-IDF.

  • Q: What is the maximum range of the ESP32's Wi-Fi?
    A: The range depends on environmental factors but typically extends up to 100 meters in open spaces.

By following this documentation, you can effectively utilize the ESP32 DEV KIT + Board PCB for your IoT and embedded system projects.
