How to Use DHT11-Temperarure&Humidity: Examples, Pinouts, and Specs

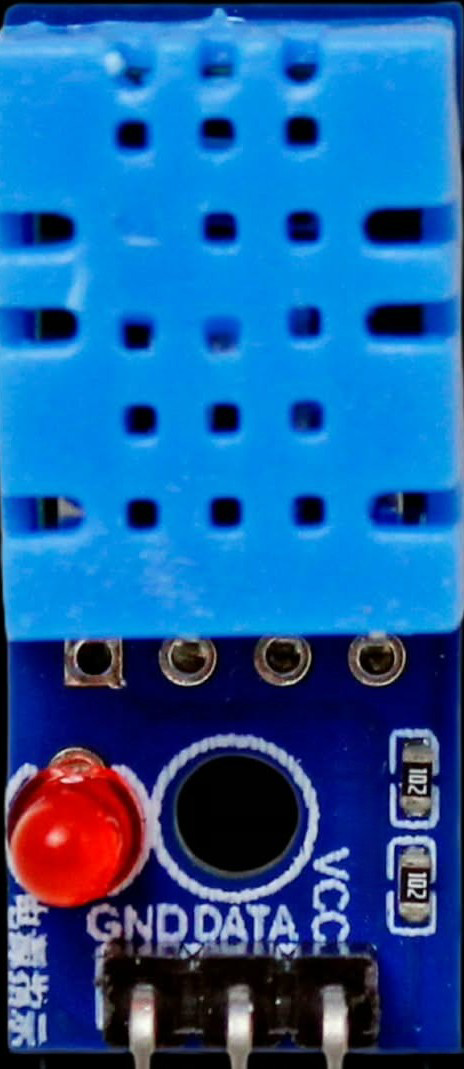

The DHT11 is a digital sensor designed to measure both temperature and humidity. Manufactured by Arduino with the part ID UNO, this sensor provides reliable and accurate readings, making it a popular choice for a wide range of applications. Its compact size and ease of use make it ideal for projects such as weather monitoring, HVAC systems, and home automation.

• Weather stations
• Indoor climate monitoring
• HVAC (Heating, Ventilation, and Air Conditioning) systems
• IoT (Internet of Things) devices
• Home automation projects

The DHT11 sensor operates on digital communication and provides temperature and humidity data in a single package. Below are its key technical details:

The DHT11 sensor has four pins, but typically only three are used in most applications. Below is the pinout:

The DHT11 sensor is straightforward to use in a circuit. It communicates via a single-wire protocol, making it compatible with microcontrollers like the Arduino UNO. Below are the steps to use the DHT11 sensor:

1. Power the Sensor: Connect the VCC pin of the DHT11 to the 5V pin on the Arduino UNO.
2. Ground Connection: Connect the GND pin of the DHT11 to the GND pin on the Arduino UNO.
3. Data Pin: Connect the DATA pin of the DHT11 to a digital input pin on the Arduino UNO (e.g., pin 2).
4. Pull-up Resistor: Use a 10kΩ pull-up resistor between the DATA pin and VCC to ensure stable communication.

Below is an example code to read temperature and humidity data from the DHT11 sensor using the Arduino UNO. This code uses the popular DHT library.

// Include the DHT library
#include <DHT.h>

// Define the DHT11 pin and type
#define DHTPIN 2       // Pin connected to the DATA pin of DHT11
#define DHTTYPE DHT11  // Specify the sensor type (DHT11)

// Initialize the DHT sensor
DHT dht(DHTPIN, DHTTYPE);

void setup() {
  Serial.begin(9600);  // Start serial communication
  dht.begin();         // Initialize the DHT sensor
  Serial.println("DHT11 Sensor Initialized");
}

void loop() {
  delay(2000);  // Wait 2 seconds between readings

  // Read temperature and humidity
  float humidity = dht.readHumidity();
  float temperature = dht.readTemperature();

  // Check if readings are valid
  if (isnan(humidity) || isnan(temperature)) {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  // Print the readings to the Serial Monitor
  Serial.print("Humidity: ");
  Serial.print(humidity);
  Serial.print(" %\t");
  Serial.print("Temperature: ");
  Serial.print(temperature);
  Serial.println(" °C");
}

• Sampling Rate: The DHT11 has a sampling period of 1 second. Avoid reading data more frequently than this to prevent errors.
• Pull-up Resistor: Always use a pull-up resistor (10kΩ) on the DATA pin for stable communication.
• Environmental Conditions: The DHT11 is designed for indoor use. Avoid exposing it to extreme temperatures or humidity levels outside its specified range.

1. No Data Output:

   • Ensure the DATA pin is connected to the correct digital pin on the Arduino.
   • Verify the pull-up resistor is properly connected between the DATA pin and VCC.

2. Incorrect Readings:

   • Check if the sensor is operating within its specified temperature and humidity range.
   • Ensure the sensor is not exposed to rapid environmental changes, as it may take time to stabilize.

3. "Failed to Read from DHT Sensor" Error:

   • Verify the wiring and connections.
   • Ensure the DHT library is correctly installed in the Arduino IDE.

Q: Can the DHT11 measure negative temperatures?
A: No, the DHT11 can only measure temperatures in the range of 0°C to 50°C.

Q: Can I use the DHT11 outdoors?
A: The DHT11 is not designed for outdoor use. For outdoor applications, consider using a sensor with a wider operating range and better environmental protection.

Q: What is the difference between the DHT11 and DHT22?
A: The DHT22 offers a wider temperature and humidity range with higher accuracy compared to the DHT11. However, the DHT11 is more affordable and sufficient for basic applications.

By following this documentation, you can effectively integrate the DHT11 sensor into your projects and troubleshoot common issues with ease.
