How to Use MBR745 Schottky: Examples, Pinouts, and Specs

The MBR745 is a Schottky diode manufactured by Fairchild Semiconductor. It is designed for high-efficiency rectification and power management applications. Known for its low forward voltage drop and fast switching speed, the MBR745 is widely used in power supplies, DC-DC converters, and freewheeling diodes in motor control circuits. Its robust design and high current handling capability make it a reliable choice for both industrial and consumer electronics.

• Power supply rectification
• DC-DC converters
• Freewheeling diodes in motor drives
• Reverse polarity protection
• Solar panel bypass diodes

The following table outlines the key technical specifications of the MBR745 Schottky diode:

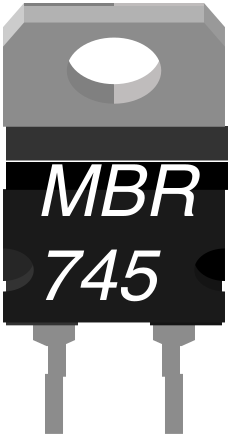

The MBR745 is available in a TO-220AC package with the following pin configuration:

1. Identify the Anode and Cathode: The anode is connected to the positive side of the circuit, while the cathode is connected to the negative side or load.
2. Forward Bias Operation: Ensure the anode voltage is higher than the cathode voltage for current to flow.
3. Reverse Voltage Protection: Use the MBR745 to prevent damage to sensitive components by blocking reverse current.
4. Heat Dissipation: Attach a heatsink to the TO-220AC package if the diode operates at high currents to prevent overheating.

The MBR745 can be used in a full-wave rectifier circuit for converting AC to DC. Below is an example of how to connect four MBR745 diodes in a bridge rectifier configuration:

AC Input ----|>|----+----|<|---- AC Input
             Anode       Cathode
               |           |
               +-----------+
               |           |
             Cathode     Anode
             |<|----+----|>|
               |           |
              (+)         (-)
             DC Output   DC Output

The MBR745 can be used in Arduino projects for reverse polarity protection or as a freewheeling diode in motor control circuits. Below is an example of using the MBR745 for reverse polarity protection:

• Connect the anode of the MBR745 to the positive terminal of the power supply.
• Connect the cathode to the VIN pin of the Arduino UNO.

// Example: Reading voltage after reverse polarity protection
// Ensure the MBR745 is connected between the power supply and Arduino VIN pin.

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
}

void loop() {
  int voltage = analogRead(A0); // Read voltage from analog pin A0
  float voltageValue = voltage * (5.0 / 1023.0); // Convert to actual voltage
  Serial.print("Voltage after protection: ");
  Serial.print(voltageValue);
  Serial.println(" V");
  delay(1000); // Wait for 1 second before the next reading
}

• Current Rating: Ensure the load current does not exceed the diode's maximum average forward current (7.5 A).
• Reverse Voltage: Do not exceed the maximum repetitive reverse voltage (45 V) to avoid damage.
• Thermal Management: Use a heatsink or proper ventilation to manage heat dissipation during high-current operation.

1. Excessive Heat Generation

   • Cause: High current operation without proper heat dissipation.
   • Solution: Attach a heatsink to the TO-220AC package or reduce the load current.

2. No Current Flow

   • Cause: Incorrect polarity connection.
   • Solution: Verify the anode and cathode connections in the circuit.

3. High Reverse Leakage Current

   • Cause: Operating at high temperatures or exceeding reverse voltage rating.
   • Solution: Ensure the diode operates within its specified temperature and voltage limits.

4. Voltage Drop Too High

   • Cause: High forward current or poor connections.
   • Solution: Check the circuit connections and ensure the diode is not overloaded.

Q1: Can the MBR745 handle AC signals?
A1: Yes, the MBR745 can rectify AC signals when used in a rectifier circuit.

Q2: What is the maximum surge current the MBR745 can handle?
A2: The MBR745 can handle a peak forward surge current of 150 A for 8.3 ms (half-sine wave).

Q3: Can I use the MBR745 for solar panel applications?
A3: Yes, the MBR745 is suitable as a bypass diode in solar panels due to its low forward voltage drop and high current capability.

Q4: Is the MBR745 suitable for high-frequency applications?
A4: Yes, the MBR745's fast switching speed makes it ideal for high-frequency rectification.

By following this documentation, users can effectively integrate the MBR745 Schottky diode into their electronic designs for reliable and efficient performance.
