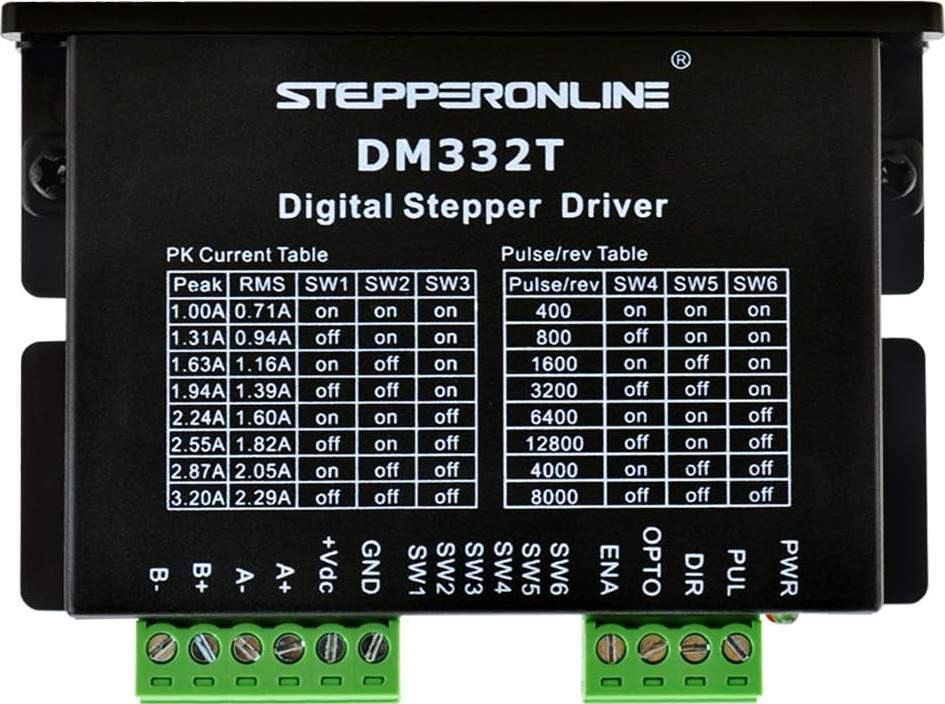

Image of DM332T Stepper Driver
Cirkit Designer LogoDesign with DM332T Stepper Driver in Cirkit Designer

Introduction

The DM332T Stepper Driver by Stepperonline is a high-performance microstepping driver designed for controlling stepper motors with precision. It allows for fine control over motor position and speed, making it ideal for applications requiring smooth and accurate motion. The DM332T supports a wide range of microstepping resolutions and features adjustable current settings, ensuring compatibility with various stepper motors. Additionally, it includes built-in protection mechanisms such as overcurrent and overheating safeguards, enhancing its reliability and durability.

Explore Projects Built with DM332T Stepper Driver

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Stepper Motor Control System with TB6600 Driver and DKC-1A Controller
Image of Copy of Copy of PLC-Based Step Motor Speed and Direction Control System: A project utilizing DM332T Stepper Driver in a practical application
This circuit controls a bipolar stepper motor using a tb6600 micro stepping motor driver and a DKC-1A stepper motor controller. The system is powered by a 24VDC power supply and includes a relay module for additional control functionalities.
Cirkit Designer LogoOpen Project in Cirkit Designer
CNC Machine Control System with Dual tb6600 Stepper Drivers and MAch3 USB Interface
Image of Jayshree CNC: A project utilizing DM332T Stepper Driver in a practical application
This circuit appears to be a control system for a CNC machine or similar automated equipment. It includes two tb6600 Micro Stepping Motor Drivers for controlling stepper motors, a DC power source with a step-down buck converter to provide the necessary voltage levels, and a 4-channel relay module for switching higher power loads. The MAch3 CNC USB interface suggests the system is designed to interface with computer numerical control software, and the RMCS_3001 BLDC Driver indicates the presence of a brushless DC motor control. The Tiva C launchpad microcontroller and various connectors imply that the system is modular and may be programmable for specific automation tasks.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Controlled Stepper Motor with LCD Interface and Rotary Encoder
Image of AC Servo Motor: A project utilizing DM332T Stepper Driver in a practical application
This circuit is designed to control a bipolar stepper motor using an Arduino Mega 2560 microcontroller and a STEPPERONLINE DM542T driver. The Arduino interfaces with a 20x4 LCD display over I2C for user feedback, a membrane matrix keypad for user input, and a rotary encoder for precise control inputs. The power supply provides the necessary voltage and current to drive the stepper motor through the DM542T driver.
Cirkit Designer LogoOpen Project in Cirkit Designer
Stepper Motor Control System with TB6600 Driver and Relay Integration
Image of Copy of Copy of Copy of PLC-Based Step Motor Speed and Direction Control System: A project utilizing DM332T Stepper Driver in a practical application
This circuit controls a bipolar stepper motor using a tb6600 micro stepping motor driver and a DKC-1A stepper motor controller. It includes a 24VDC power supply, a 4-channel relay module, and panel mount banana sockets for power connections. The motor driver and controller are interconnected to manage the motor's direction and pulse signals.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with DM332T Stepper Driver

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Copy of Copy of PLC-Based Step Motor Speed and Direction Control System: A project utilizing DM332T Stepper Driver in a practical application
Stepper Motor Control System with TB6600 Driver and DKC-1A Controller
This circuit controls a bipolar stepper motor using a tb6600 micro stepping motor driver and a DKC-1A stepper motor controller. The system is powered by a 24VDC power supply and includes a relay module for additional control functionalities.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Jayshree CNC: A project utilizing DM332T Stepper Driver in a practical application
CNC Machine Control System with Dual tb6600 Stepper Drivers and MAch3 USB Interface
This circuit appears to be a control system for a CNC machine or similar automated equipment. It includes two tb6600 Micro Stepping Motor Drivers for controlling stepper motors, a DC power source with a step-down buck converter to provide the necessary voltage levels, and a 4-channel relay module for switching higher power loads. The MAch3 CNC USB interface suggests the system is designed to interface with computer numerical control software, and the RMCS_3001 BLDC Driver indicates the presence of a brushless DC motor control. The Tiva C launchpad microcontroller and various connectors imply that the system is modular and may be programmable for specific automation tasks.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of AC Servo Motor: A project utilizing DM332T Stepper Driver in a practical application
Arduino-Controlled Stepper Motor with LCD Interface and Rotary Encoder
This circuit is designed to control a bipolar stepper motor using an Arduino Mega 2560 microcontroller and a STEPPERONLINE DM542T driver. The Arduino interfaces with a 20x4 LCD display over I2C for user feedback, a membrane matrix keypad for user input, and a rotary encoder for precise control inputs. The power supply provides the necessary voltage and current to drive the stepper motor through the DM542T driver.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of Copy of Copy of PLC-Based Step Motor Speed and Direction Control System: A project utilizing DM332T Stepper Driver in a practical application
Stepper Motor Control System with TB6600 Driver and Relay Integration
This circuit controls a bipolar stepper motor using a tb6600 micro stepping motor driver and a DKC-1A stepper motor controller. It includes a 24VDC power supply, a 4-channel relay module, and panel mount banana sockets for power connections. The motor driver and controller are interconnected to manage the motor's direction and pulse signals.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • CNC machines and 3D printers
  • Robotics and automation systems
  • Precision positioning systems
  • Conveyor belts and industrial machinery
  • Camera sliders and gimbals

Technical Specifications

Key Technical Details

Parameter Value
Manufacturer Part ID DM332T
Input Voltage Range 12V to 32V DC
Output Current Range 0.3A to 3.2A (adjustable)
Microstepping Resolutions Full step to 1/256 step
Control Signal Logic 3.3V or 5V TTL compatible
Pulse Frequency Range 0 to 200 kHz
Protection Features Overcurrent, overheating, and short-circuit
Operating Temperature 0°C to 50°C
Dimensions 86mm x 55mm x 20mm

Pin Configuration and Descriptions

The DM332T has a set of input and output terminals for connecting to the power supply, stepper motor, and control signals. Below is the pin configuration:

Input/Output Terminals

Pin Name Description
V+ Positive terminal for DC power supply (12V-32V)
V- Negative terminal for DC power supply (GND)
A+ Positive terminal for stepper motor coil A
A- Negative terminal for stepper motor coil A
B+ Positive terminal for stepper motor coil B
B- Negative terminal for stepper motor coil B
PUL+ Positive terminal for pulse signal (step input)
PUL- Negative terminal for pulse signal (step input)
DIR+ Positive terminal for direction signal
DIR- Negative terminal for direction signal
ENA+ Positive terminal for enable signal (optional)
ENA- Negative terminal for enable signal (optional)

Usage Instructions

How to Use the DM332T in a Circuit

  1. Power Supply Connection:
    Connect the V+ and V- terminals to a DC power supply within the range of 12V to 32V. Ensure the power supply can provide sufficient current for the stepper motor.

  2. Stepper Motor Connection:
    Connect the stepper motor coils to the A+, A-, B+, and B- terminals. Refer to the motor's datasheet to identify the correct coil pairs.

  3. Control Signal Connection:

    • Connect the PUL+, PUL-, DIR+, and DIR- terminals to the control signals from a microcontroller or pulse generator.
    • If using an enable signal, connect ENA+ and ENA- to the appropriate control pins.
  4. Microstepping and Current Settings:

    • Use the DIP switches on the driver to configure the microstepping resolution and output current. Refer to the DM332T user manual for the DIP switch settings.
  5. Testing the Setup:

    • Power on the system and send pulse and direction signals to the driver.
    • Observe the motor's movement to ensure it operates as expected.

Important Considerations and Best Practices

  • Current Settings: Set the output current to match the stepper motor's rated current to avoid overheating or damaging the motor.
  • Signal Quality: Use shielded cables for control signals to minimize noise and ensure reliable operation.
  • Cooling: Ensure adequate ventilation around the driver to prevent overheating during prolonged use.
  • Polarity: Double-check the polarity of the power supply and motor connections to avoid damage to the driver.

Example: Connecting the DM332T to an Arduino UNO

Below is an example of how to connect the DM332T to an Arduino UNO and control a stepper motor:

Wiring Diagram

  • DM332T PUL+ → Arduino Pin 3
  • DM332T PUL- → Arduino GND
  • DM332T DIR+ → Arduino Pin 4
  • DM332T DIR- → Arduino GND
  • DM332T V+ → 24V DC Power Supply Positive
  • DM332T V- → 24V DC Power Supply Negative
  • Stepper Motor Coils → Connect to A+, A-, B+, B- as per motor datasheet.

Arduino Code

// Define control pins for the DM332T
#define PUL_PIN 3  // Pulse signal pin
#define DIR_PIN 4  // Direction signal pin

void setup() {
  pinMode(PUL_PIN, OUTPUT); // Set pulse pin as output
  pinMode(DIR_PIN, OUTPUT); // Set direction pin as output

  digitalWrite(DIR_PIN, LOW); // Set initial direction (LOW or HIGH)
}

void loop() {
  // Generate pulses to move the stepper motor
  digitalWrite(PUL_PIN, HIGH); // Set pulse pin HIGH
  delayMicroseconds(500);      // Wait for 500 microseconds
  digitalWrite(PUL_PIN, LOW);  // Set pulse pin LOW
  delayMicroseconds(500);      // Wait for 500 microseconds
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Motor Not Moving:

    • Cause: Incorrect wiring or insufficient power supply.
      Solution: Verify all connections and ensure the power supply meets the voltage and current requirements.
  2. Motor Vibrates but Does Not Rotate:

    • Cause: Incorrect microstepping or current settings.
      Solution: Check and adjust the DIP switch settings for microstepping and current.
  3. Driver Overheating:

    • Cause: Insufficient cooling or excessive current setting.
      Solution: Ensure proper ventilation and reduce the current setting if necessary.
  4. Erratic Motor Movement:

    • Cause: Noise in control signals or loose connections.
      Solution: Use shielded cables and secure all connections.

FAQs

  • Q: Can the DM332T drive a NEMA 17 stepper motor?
    A: Yes, the DM332T is compatible with NEMA 17 stepper motors, provided the motor's current rating is within the driver's range.

  • Q: What is the maximum pulse frequency supported?
    A: The DM332T supports pulse frequencies up to 200 kHz.

  • Q: Is the enable signal mandatory?
    A: No, the enable signal is optional. If not used, the driver will remain enabled by default.

  • Q: Can I use a 5V power supply for the DM332T?
    A: No, the DM332T requires a DC power supply within the range of 12V to 32V.

By following this documentation, users can effectively integrate the DM332T Stepper Driver into their projects for precise and reliable stepper motor control.
