How to Use TLV62569 3.3V Buck Converter Breakout: Examples, Pinouts, and Specs

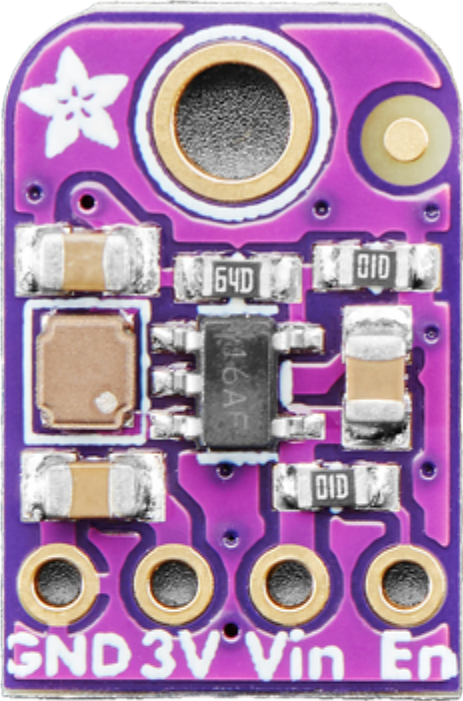

Image of TLV62569 3.3V Buck Converter Breakout
Cirkit Designer LogoDesign with TLV62569 3.3V Buck Converter Breakout in Cirkit Designer

Introduction

The TLV62569 3.3V Buck Converter Breakout (Adafruit Part ID: 4711) is a compact, high-efficiency DC-DC step-down (buck) converter module designed to provide a stable 3.3V output from a higher input voltage. This breakout board is based on the Texas Instruments TLV62569 chip and is ideal for powering low-voltage devices such as microcontrollers, sensors, and other 3.3V logic components.

Explore Projects Built with TLV62569 3.3V Buck Converter Breakout

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered Arduino UNO and ESP-8266 Smart Controller with LCD and RTC
Image of Ogie Diagram: A project utilizing TLV62569 3.3V Buck Converter Breakout in a practical application
This circuit is a power management and control system that uses a 12V power supply and a 18650 Li-ion battery pack to provide a stable 5V output through a step-down buck converter. It includes an Arduino UNO, an ESP-8266 controller, a DS1307 RTC module, and a 20x4 I2C LCD display for monitoring and control purposes. The ULN2003A breakout board is used for driving higher current loads.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered 18650 Li-ion Charger with USB Output and Adjustable Voltage Regulator
Image of Breadboard: A project utilizing TLV62569 3.3V Buck Converter Breakout in a practical application
This circuit is a battery management and power supply system that uses three 3.7V batteries connected to a 3S 10A Li-ion 18650 Charger Protection Board Module for balanced charging and protection. The system includes a TP4056 Battery Charging Protection Module for additional charging safety, a Step Up Boost Power Converter to regulate and boost the voltage, and a USB regulator to provide a stable 5V output, controlled by a push switch.
Cirkit Designer LogoOpen Project in Cirkit Designer
Multi-Stage Voltage Regulation and Indicator LED Circuit
Image of Subramanyak_Power_Circuit: A project utilizing TLV62569 3.3V Buck Converter Breakout in a practical application
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Boost Converter with USB Type-C and BMS
Image of Weird Case: A project utilizing TLV62569 3.3V Buck Converter Breakout in a practical application
This circuit is a power management and conversion system that includes a boost converter, battery management system (BMS), and various MOSFETs and passive components. It is designed to regulate and boost the voltage from a 2000mAh battery, providing stable power output through a USB Type C interface. The circuit also includes protection and switching mechanisms to ensure safe and efficient power delivery.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with TLV62569 3.3V Buck Converter Breakout

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Ogie Diagram: A project utilizing TLV62569 3.3V Buck Converter Breakout in a practical application
Battery-Powered Arduino UNO and ESP-8266 Smart Controller with LCD and RTC
This circuit is a power management and control system that uses a 12V power supply and a 18650 Li-ion battery pack to provide a stable 5V output through a step-down buck converter. It includes an Arduino UNO, an ESP-8266 controller, a DS1307 RTC module, and a 20x4 I2C LCD display for monitoring and control purposes. The ULN2003A breakout board is used for driving higher current loads.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Breadboard: A project utilizing TLV62569 3.3V Buck Converter Breakout in a practical application
Battery-Powered 18650 Li-ion Charger with USB Output and Adjustable Voltage Regulator
This circuit is a battery management and power supply system that uses three 3.7V batteries connected to a 3S 10A Li-ion 18650 Charger Protection Board Module for balanced charging and protection. The system includes a TP4056 Battery Charging Protection Module for additional charging safety, a Step Up Boost Power Converter to regulate and boost the voltage, and a USB regulator to provide a stable 5V output, controlled by a push switch.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Subramanyak_Power_Circuit: A project utilizing TLV62569 3.3V Buck Converter Breakout in a practical application
Multi-Stage Voltage Regulation and Indicator LED Circuit
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Weird Case: A project utilizing TLV62569 3.3V Buck Converter Breakout in a practical application
Battery-Powered Boost Converter with USB Type-C and BMS
This circuit is a power management and conversion system that includes a boost converter, battery management system (BMS), and various MOSFETs and passive components. It is designed to regulate and boost the voltage from a 2000mAh battery, providing stable power output through a USB Type C interface. The circuit also includes protection and switching mechanisms to ensure safe and efficient power delivery.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Powering 3.3V microcontrollers (e.g., ESP32, Arduino-compatible boards)
  • Supplying power to low-voltage sensors and modules
  • Battery-powered projects requiring efficient voltage regulation
  • General-purpose 3.3V power supply for prototyping and development

Technical Specifications

The following table outlines the key technical details of the TLV62569 3.3V Buck Converter Breakout:

Parameter Value
Input Voltage Range 3.0V to 17.0V
Output Voltage 3.3V (fixed)
Maximum Output Current 2A
Efficiency Up to 95% (depending on input voltage/load)
Switching Frequency 1.5 MHz
Operating Temperature -40°C to +125°C
Dimensions 17.8mm x 12.7mm x 4.5mm

Pin Configuration and Descriptions

The breakout board has 5 pins, as described in the table below:

Pin Name Description
VIN Input voltage pin (3.0V to 17.0V). Connect to the power source.
GND Ground pin. Connect to the ground of your circuit.
VOUT Regulated 3.3V output pin. Connect to the load or device requiring 3.3V power.
EN Enable pin. Drive HIGH to enable the converter, or LOW to disable it.
PG Power Good pin. Outputs HIGH when the output voltage is stable.

Usage Instructions

How to Use the TLV62569 3.3V Buck Converter Breakout in a Circuit

  1. Connect the Input Voltage (VIN):

    • Supply a DC voltage between 3.0V and 17.0V to the VIN pin.
    • Ensure the input voltage is within the specified range to avoid damaging the module.
  2. Connect the Ground (GND):

    • Connect the GND pin to the ground of your circuit.
  3. Connect the Output Voltage (VOUT):

    • Use the VOUT pin to power your 3.3V devices. Ensure the total current draw does not exceed 2A.
  4. Enable the Converter (Optional):

    • By default, the EN pin is internally pulled HIGH, enabling the converter.
    • To disable the converter, connect the EN pin to GND.
  5. Monitor Power Good (Optional):

    • Use the PG pin to monitor the output voltage status. It outputs HIGH when the output voltage is stable.

Important Considerations and Best Practices

  • Input Voltage Range: Always ensure the input voltage is within the 3.0V to 17.0V range.
  • Heat Dissipation: While the module is highly efficient, ensure adequate ventilation if operating near the maximum load (2A).
  • Capacitor Requirements: The breakout board includes onboard capacitors for stable operation. No additional capacitors are typically required.
  • Avoid Overloading: Do not exceed the 2A maximum output current to prevent damage to the module.

Example: Using with an Arduino UNO

The TLV62569 3.3V Buck Converter Breakout can be used to power 3.3V sensors or modules in an Arduino UNO project. Below is an example of connecting the breakout to an Arduino UNO and a 3.3V sensor:

Wiring Diagram

  1. Connect the VIN pin of the breakout to the 5V pin of the Arduino UNO.
  2. Connect the GND pin of the breakout to the GND pin of the Arduino UNO.
  3. Connect the VOUT pin of the breakout to the VCC pin of the 3.3V sensor.
  4. Connect the GND pin of the sensor to the GND pin of the breakout.

Example Code

// Example code for reading data from a 3.3V sensor powered by the TLV62569
// Buck Converter Breakout. This example assumes the sensor is connected
// to analog pin A0 of the Arduino UNO.

const int sensorPin = A0; // Analog pin connected to the sensor output

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  pinMode(sensorPin, INPUT); // Set the sensor pin as an input
}

void loop() {
  int sensorValue = analogRead(sensorPin); // Read the sensor value
  float voltage = sensorValue * (3.3 / 1023.0); // Convert to voltage (3.3V reference)

  // Print the sensor value and voltage to the Serial Monitor
  Serial.print("Sensor Value: ");
  Serial.print(sensorValue);
  Serial.print(" | Voltage: ");
  Serial.print(voltage);
  Serial.println(" V");

  delay(1000); // Wait for 1 second before the next reading
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Ensure the input voltage is within the 3.0V to 17.0V range.
    • Check that the EN pin is HIGH (or left unconnected, as it is internally pulled HIGH).
    • Verify all connections are secure and correct.
  2. Output Voltage is Unstable:

    • Ensure the input power source can supply sufficient current.
    • Check for loose or poor connections in the circuit.
    • Avoid exceeding the maximum output current of 2A.
  3. Module Overheating:

    • Ensure the load does not exceed 2A.
    • Provide adequate ventilation or cooling if operating near the maximum load.
  4. PG Pin Not Outputting HIGH:

    • Verify that the output voltage is stable and within the expected range.
    • Check the wiring and ensure the PG pin is connected correctly.

FAQs

Q: Can I use this module to power a 5V device?
A: No, the TLV62569 breakout provides a fixed 3.3V output. For 5V devices, consider using a different buck converter with a 5V output.

Q: Is it safe to leave the EN pin unconnected?
A: Yes, the EN pin is internally pulled HIGH, so the module will operate normally if the pin is left unconnected.

Q: Can I use this module with a LiPo battery?
A: Yes, the module can step down the voltage from a LiPo battery (e.g., 7.4V or 11.1V) to 3.3V, as long as the input voltage is within the 3.0V to 17.0V range.

Q: Do I need additional capacitors for stable operation?
A: No, the breakout board includes onboard capacitors for stable operation. Additional capacitors are not typically required.
