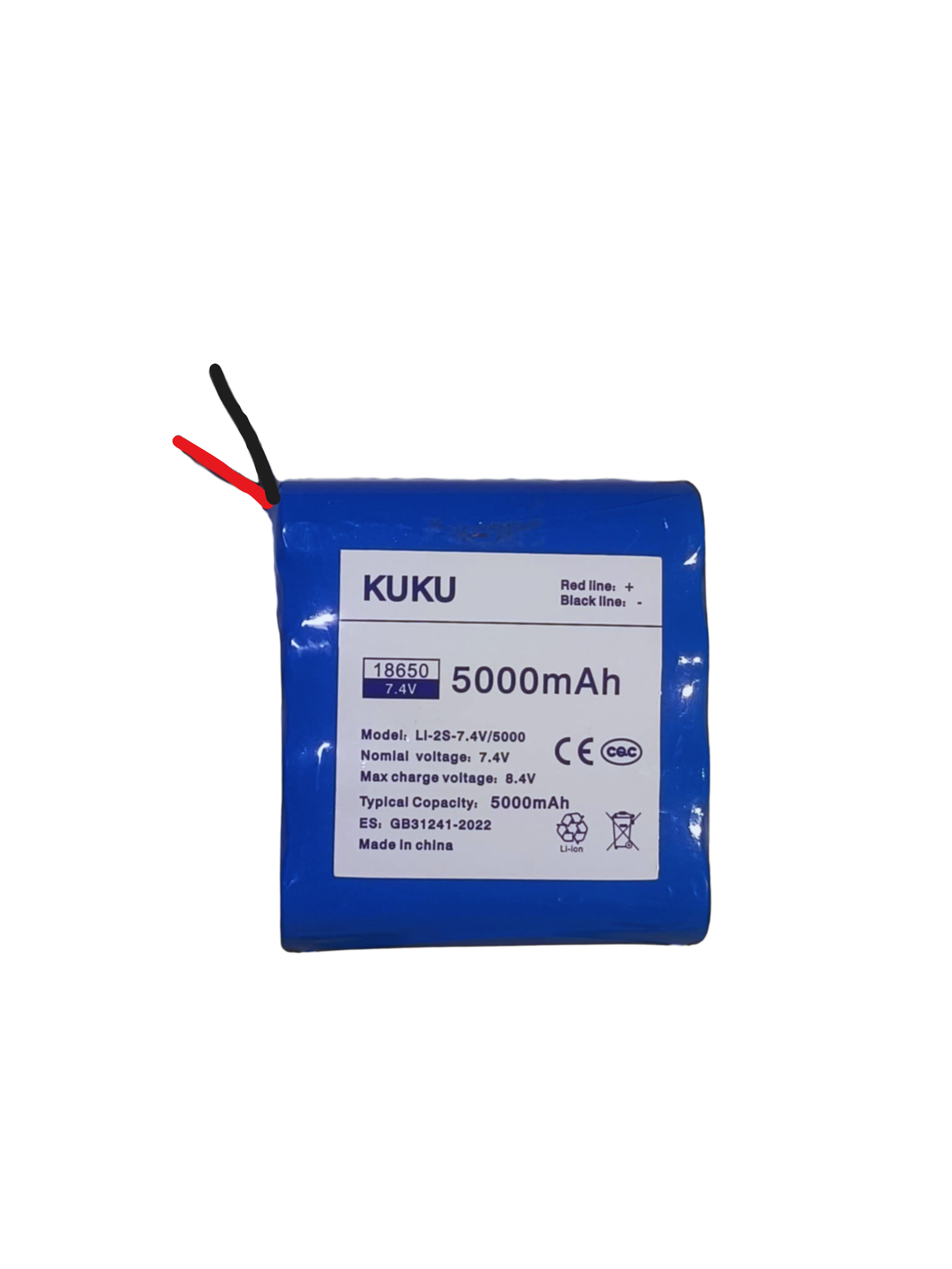

The 18650 7.4V 5000mAh is a rechargeable lithium-ion battery pack consisting of two 18650 cells connected in series. It offers a nominal voltage of 7.4V and a capacity of 5000mAh, making it ideal for applications requiring high energy density and long cycle life. This battery is widely used in portable electronics, electric vehicles, power tools, and backup power systems due to its reliability and efficiency.
Explore Projects Built with 18650 7.4V 5000mAh
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit is a power management system that integrates a 12V power supply, a solar charger power bank, and multiple Li-ion batteries to provide a stable power output. The Waveshare UPS 3S manages the input from the power sources and batteries, ensuring continuous power delivery. The MRB045 module is used to interface the solar charger with the rest of the system.
This circuit is a battery management and power supply system that uses three 3.7V batteries connected to a 3S 10A Li-ion 18650 Charger Protection Board Module for balanced charging and protection. The system includes a TP4056 Battery Charging Protection Module for additional charging safety, a Step Up Boost Power Converter to regulate and boost the voltage, and a USB regulator to provide a stable 5V output, controlled by a push switch.
This circuit is a power management system that uses four Li-ion 18650 batteries connected to a 2S 30A BMS for battery management and protection. The system includes step-up and step-down voltage regulators to provide adjustable output voltages, controlled by a rocker switch, and multiple DC jacks for power input and output.
This circuit is designed to charge 18650 lithium-ion batteries using a TP4056 charger module, and then boost the voltage using an XL 6009 Boost Module. The boosted voltage is regulated by a 7805 voltage regulator to provide a stable 5V output, which powers an ISD1820 voice recording and playback module. The audio signal from the ISD1820 is then amplified by an LM386 audio amplifier module and output through a loudspeaker.
Portable electronic devices (e.g., laptops, cameras, and drones)
Electric vehicles and e-bikes
Power tools and cordless equipment
Backup power supplies and uninterruptible power systems (UPS)
DIY electronics and robotics projects
Technical Specifications
The following table outlines the key technical details of the 18650 7.4V 5000mAh battery:
Parameter
Specification
Nominal Voltage
7.4V
Capacity
5000mAh
Chemistry
Lithium-ion (Li-ion)
Configuration
2 cells in series (2S)
Maximum Charging Voltage
8.4V
Discharge Cut-off Voltage
6.0V
Maximum Discharge Current
10A (varies by manufacturer)
Charging Current
Standard: 1A, Max: 2.5A
Cycle Life
≥500 cycles
Operating Temperature
Charge: 0°C to 45°C
Discharge: -20°C to 60°C
Dimensions
~18mm (diameter) x 65mm (length per cell)
Weight
~90g (varies by manufacturer)
Pin Configuration
The 18650 7.4V 5000mAh battery pack typically has two terminals for connection:
Pin
Label
Description
1
+ (Positive)
Positive terminal for output voltage
2
- (Negative)
Negative terminal for output voltage
Some battery packs may include additional wires for features like battery management systems (BMS) or temperature monitoring.
Usage Instructions
How to Use the 18650 7.4V 5000mAh in a Circuit
Connection: Connect the positive terminal (+) to the positive rail of your circuit and the negative terminal (-) to the ground rail. Ensure proper polarity to avoid damage.
Charging: Use a compatible lithium-ion battery charger with a maximum charging voltage of 8.4V and a current limit of 1A to 2.5A. Overcharging can damage the battery or cause safety hazards.
Discharging: Ensure the load does not exceed the maximum discharge current (10A). Use a battery management system (BMS) to prevent over-discharge and short circuits.
Protection: Always use a BMS to monitor voltage, current, and temperature. This ensures safe operation and extends the battery's lifespan.
Important Considerations
Avoid Overcharging/Over-discharging: Overcharging beyond 8.4V or discharging below 6.0V can permanently damage the battery.
Temperature Monitoring: Operate the battery within the specified temperature range to prevent overheating or reduced performance.
Storage: Store the battery in a cool, dry place at ~50% charge for long-term storage.
Safety: Do not puncture, short-circuit, or expose the battery to fire or water.
Example: Using with Arduino UNO
The 18650 7.4V 5000mAh battery can power an Arduino UNO via the VIN pin. Below is an example of connecting the battery to an Arduino UNO and reading the battery voltage using a voltage divider.
Circuit Diagram
Connect the positive terminal of the battery to the VIN pin of the Arduino.
Connect the negative terminal of the battery to the GND pin of the Arduino.
Use a voltage divider to scale the battery voltage to a range readable by the Arduino's analog input (0-5V).
Arduino Code
// Define the analog pin connected to the voltage divider
const int voltagePin = A0;
// Voltage divider resistor values (in ohms)
const float R1 = 10000.0; // Resistor connected to battery +
const float R2 = 10000.0; // Resistor connected to GND
void setup() {
Serial.begin(9600); // Initialize serial communication
}
void loop() {
int rawValue = analogRead(voltagePin); // Read analog value
float voltage = (rawValue / 1023.0) * 5.0; // Convert to voltage (0-5V range)
// Calculate actual battery voltage using the voltage divider formula
float batteryVoltage = voltage * ((R1 + R2) / R2);
// Print the battery voltage to the Serial Monitor
Serial.print("Battery Voltage: ");
Serial.print(batteryVoltage);
Serial.println(" V");
delay(1000); // Wait for 1 second before the next reading
}
Troubleshooting and FAQs
Common Issues
Battery Not Charging
Cause: Faulty charger or damaged battery.
Solution: Verify the charger output voltage and current. Check for physical damage to the battery.
Battery Drains Quickly
Cause: Over-discharge, aging, or excessive load.
Solution: Use a BMS to prevent over-discharge. Replace the battery if it has reached the end of its cycle life.
Battery Overheats
Cause: High discharge current or charging outside the recommended temperature range.
Solution: Reduce the load or charge the battery within the specified temperature range.
Arduino Not Powering On
Cause: Insufficient voltage or incorrect wiring.
Solution: Ensure the battery voltage is above 6.0V and check the connections.
FAQs
Q1: Can I use this battery without a BMS?
A1: It is not recommended. A BMS ensures safe operation by preventing overcharging, over-discharging, and short circuits.
Q2: How long does it take to charge this battery?
A2: Charging time depends on the charger current. For a 1A charger, it takes approximately 5-6 hours.
Q3: Can I connect multiple 18650 7.4V 5000mAh batteries in parallel?
A3: Yes, but ensure all batteries are at the same voltage level before connecting and use a BMS designed for parallel configurations.
Q4: Is this battery safe for outdoor use?
A4: Yes, but avoid exposing it to water or extreme temperatures. Use a waterproof enclosure if necessary.
