How to Use LiFePO4 3.2V 6000mah: Examples, Pinouts, and Specs

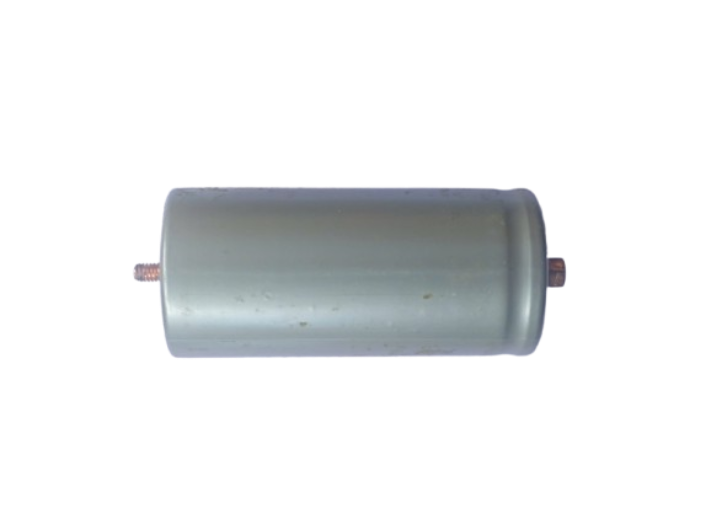

The LiFePO4 3.2V 6000mAh is a lithium iron phosphate rechargeable battery designed for high-performance and long-lasting energy storage. With a nominal voltage of 3.2 volts and a capacity of 6000 milliamp-hours (mAh), this battery is known for its excellent thermal stability, safety, and extended cycle life compared to other lithium-ion chemistries. It is an ideal choice for applications requiring reliable and efficient power delivery.

• Solar energy storage systems
• Uninterruptible power supplies (UPS)
• Electric vehicles (EVs) and e-bikes
• Portable electronics and power banks
• Robotics and IoT devices
• Backup power for embedded systems

The following table outlines the key technical details of the LiFePO4 3.2V 6000mAh battery:

The LiFePO4 battery typically has two terminals:

Note: Some LiFePO4 batteries may include additional terminals for battery management systems (BMS) or temperature sensors. Refer to the specific datasheet for details.

1. Charging the Battery:

   • Use a LiFePO4-compatible charger with a maximum charge voltage of 3.65V.
   • Ensure the charging current does not exceed the maximum charge current (6A for this battery).
   • Monitor the battery temperature during charging to avoid overheating.

2. Connecting the Battery:

   • Connect the positive terminal of the battery to the positive rail of your circuit.
   • Connect the negative terminal of the battery to the ground (GND) of your circuit.
   • If using a battery management system (BMS), connect the battery terminals to the BMS as per the manufacturer's instructions.

3. Discharging the Battery:

   • Ensure the load does not draw more than the maximum discharge current (12A for this battery).
   • Avoid discharging the battery below its minimum discharge voltage (2.5V) to prevent damage.

4. Safety Precautions:

   • Do not short-circuit the terminals.
   • Avoid exposing the battery to extreme temperatures or direct sunlight.
   • Use a BMS to protect the battery from overcharging, over-discharging, and overcurrent conditions.

• Always use a charger specifically designed for LiFePO4 batteries to ensure safe and efficient charging.
• Store the battery in a cool, dry place when not in use.
• Periodically check the battery's voltage and capacity to ensure optimal performance.
• If using the battery with an Arduino UNO or other microcontrollers, consider adding a voltage divider or a dedicated battery monitoring IC to measure the battery voltage safely.

To monitor the battery voltage with an Arduino UNO, you can use a voltage divider circuit to step down the voltage to a safe range for the Arduino's analog input pins (0-5V). Below is an example code snippet:

// Define the analog pin connected to the voltage divider
const int voltagePin = A0;

// Define the voltage divider resistors (in ohms)
const float R1 = 10000.0; // 10k ohms
const float R2 = 10000.0; // 10k ohms

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  // Read the analog value from the voltage divider
  int analogValue = analogRead(voltagePin);

  // Convert the analog value to voltage
  float voltage = (analogValue / 1023.0) * 5.0; // Arduino's reference voltage is 5V

  // Calculate the actual battery voltage using the voltage divider ratio
  float batteryVoltage = voltage * ((R1 + R2) / R2);

  // Print the battery voltage to the Serial Monitor
  Serial.print("Battery Voltage: ");
  Serial.print(batteryVoltage);
  Serial.println(" V");

  delay(1000); // Wait for 1 second before the next reading
}

Note: Adjust the resistor values in the voltage divider to suit your specific application. Ensure the voltage at the Arduino's analog pin does not exceed 5V.

1. Battery Not Charging:

   • Cause: Incorrect charger or damaged charging circuit.
   • Solution: Use a LiFePO4-compatible charger and check the connections.

2. Battery Drains Quickly:

   • Cause: High discharge current or aging battery.
   • Solution: Reduce the load or replace the battery if it has reached the end of its cycle life.

3. Overheating During Use:

   • Cause: Excessive current draw or poor ventilation.
   • Solution: Ensure the load does not exceed the maximum discharge current and improve ventilation.

4. Voltage Drops Below 2.5V:

   • Cause: Over-discharging the battery.
   • Solution: Use a BMS to prevent over-discharge and recharge the battery immediately.

• Always check the battery's voltage and connections before use.
• Use a multimeter to verify the battery's voltage and ensure it is within the safe operating range.
• If the battery is not performing as expected, inspect it for physical damage or swelling, and discontinue use if any issues are found.
• For long-term storage, charge the battery to approximately 50% capacity and store it in a cool, dry place.

By following these guidelines, you can ensure the safe and efficient use of the LiFePO4 3.2V 6000mAh battery in your projects.
