How to Use ESP32-S3 Feather: Examples, Pinouts, and Specs

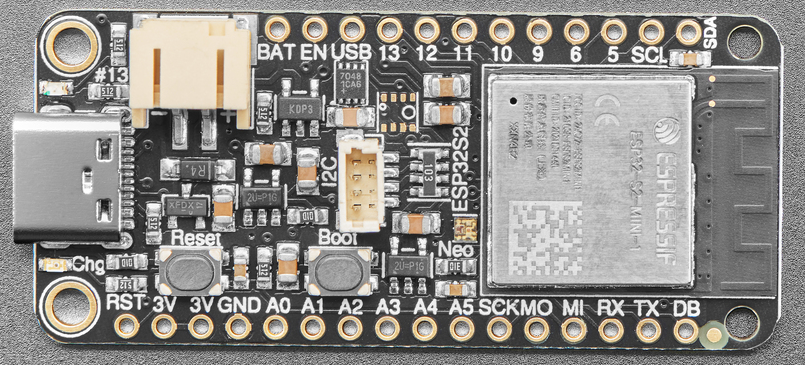

The ESP32-S3 Feather, manufactured by Adafruit, is a compact development board built around the ESP32-S3 microcontroller. This microcontroller features dual-core processing, integrated Wi-Fi, and Bluetooth Low Energy (BLE) capabilities, making it ideal for Internet of Things (IoT) applications, wireless communication, and rapid prototyping. The Feather form factor ensures compatibility with a wide range of FeatherWing add-ons, enabling easy expansion and customization.

• IoT devices and smart home automation
• Wireless sensor networks
• Wearable technology
• Prototyping for Wi-Fi and BLE-enabled projects
• Low-power data logging and monitoring systems

The ESP32-S3 Feather is packed with features that make it versatile and powerful for a variety of applications. Below are its key technical details:

The ESP32-S3 Feather features a standard Feather pinout. Below is the pin configuration:

The ESP32-S3 Feather is designed for ease of use in a variety of projects. Below are the steps and best practices for using this board effectively.

1. Powering the Board:
   • Connect the board via the USB-C port to a computer or USB power source.
   • Alternatively, connect a 3.7V LiPo battery to the BAT pin for portable applications.
2. Programming:
   • Install the latest version of the Arduino IDE or CircuitPython.
   • Add the ESP32-S3 board support package (BSP) to the Arduino IDE via the Board Manager.
   • Select "Adafruit ESP32-S3 Feather" as the target board.
3. Connecting Peripherals:
   • Use the GPIO pins for connecting sensors, actuators, or other peripherals.
   • For I2C devices, connect to the SDA and SCL pins.
   • For SPI devices, use the SCK, MOSI, and MISO pins.

• Voltage Levels: Ensure all connected peripherals operate at 3.3V logic levels to avoid damaging the board.
• Battery Charging: When using a LiPo battery, the onboard charging circuit will automatically charge the battery when connected to USB power.
• Wi-Fi and BLE: Avoid placing the board in metal enclosures, as this can interfere with wireless communication.
• Firmware Updates: Regularly check for updates to the ESP32-S3 BSP to ensure compatibility and access to new features.

Below is an example of how to use the ESP32-S3 Feather to connect to a Wi-Fi network and send data to a server:

#include <WiFi.h>

// Replace with your network credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";

void setup() {
  Serial.begin(115200); // Initialize serial communication
  delay(1000);

  // Connect to Wi-Fi
  Serial.print("Connecting to Wi-Fi");
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("\nWi-Fi connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP()); // Print the device's IP address
}

void loop() {
  // Add your main code here
  delay(1000);
}

1. Board Not Detected by Computer:

   • Ensure the USB-C cable is data-capable (not just a charging cable).
   • Check that the correct board and port are selected in the Arduino IDE.
   • Install the necessary USB drivers for the ESP32-S3.

2. Wi-Fi Connection Fails:

   • Double-check the SSID and password for typos.
   • Ensure the Wi-Fi network operates on the 2.4 GHz band (not 5 GHz).

3. Program Upload Fails:

   • Press and hold the BOOT button while clicking the upload button in the Arduino IDE.
   • Verify that the correct COM port is selected.

4. Battery Not Charging:

   • Confirm that the LiPo battery is properly connected to the BAT pin.
   • Check the USB power source for sufficient current (at least 500mA).

Q: Can I use the ESP32-S3 Feather with CircuitPython?
A: Yes, the ESP32-S3 Feather is fully compatible with CircuitPython. You can download the latest CircuitPython firmware from Adafruit's website.

Q: What is the maximum current draw of the ESP32-S3 Feather?
A: The ESP32-S3 Feather can draw up to 500mA during peak operation, especially when using Wi-Fi and BLE simultaneously.

Q: Can I use the board without a battery?
A: Yes, the board can be powered solely via the USB-C port.

Q: How do I reset the board?
A: Press the RST button on the board to perform a hardware reset.

This concludes the documentation for the Adafruit ESP32-S3 Feather. For additional support, visit the Adafruit Learning System.
