How to Use LCD 16x4: Examples, Pinouts, and Specs

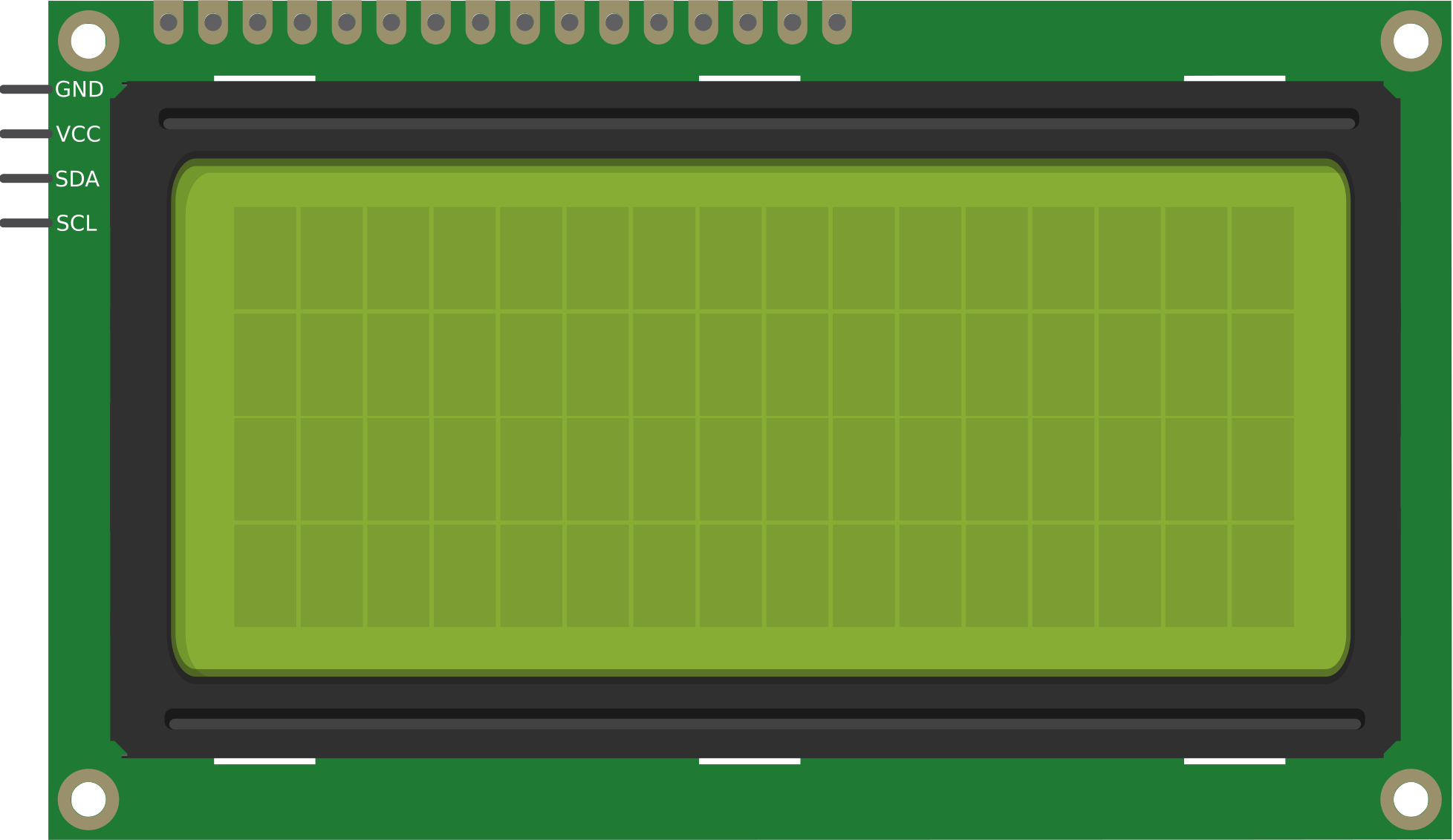

The LCD 16x4 is a Liquid Crystal Display module with 16 columns and 4 rows, designed for displaying alphanumeric characters and simple graphics. Manufactured by Arduino with the part ID "UNO," this display is widely used in embedded systems for providing a user interface or visual feedback. Its compact size, low power consumption, and ease of integration make it a popular choice for hobbyists and professionals alike.

• Microcontroller-based projects (e.g., Arduino, Raspberry Pi)
• Home automation systems
• Industrial control panels
• Digital clocks and timers
• Educational and prototyping projects
• IoT devices requiring visual feedback

The LCD 16x4 module is based on the HD44780 controller, which is compatible with most microcontrollers. Below are the key technical details:

The LCD 16x4 module has 16 pins, as described in the table below:

1. Power Supply: Connect the VSS pin to ground and the VDD pin to a 5V power source.
2. Contrast Adjustment: Connect the VO pin to the wiper of a 10kΩ potentiometer. Connect one end of the potentiometer to ground and the other to 5V. Adjust the potentiometer to set the desired contrast.
3. Control Pins: Connect the RS, RW, and E pins to digital pins on your microcontroller.
4. Data Pins: For 4-bit mode, connect D4-D7 to the microcontroller. For 8-bit mode, connect all data pins (D0-D7).
5. Backlight: Connect the A (LED+) pin to 5V (via a resistor if needed) and the K (LED-) pin to ground.

• Use a current-limiting resistor (typically 220Ω) for the backlight to prevent damage.
• Ensure proper grounding to avoid noise or flickering issues.
• Use 4-bit mode to save microcontroller pins unless 8-bit mode is required for faster data transfer.
• Avoid leaving the RW pin floating; connect it to ground if only writing to the display.

Below is an example of how to interface the LCD 16x4 with an Arduino UNO using the LiquidCrystal library in 4-bit mode:

#include <LiquidCrystal.h>

// Initialize the library with the pins connected to the LCD
// RS, E, D4, D5, D6, D7
LiquidCrystal lcd(7, 8, 9, 10, 11, 12);

void setup() {
  // Set up the LCD's number of columns and rows
  lcd.begin(16, 4);

  // Print a message to the LCD
  lcd.print("Hello, World!");
}

void loop() {
  // Move the cursor to the second row, first column
  lcd.setCursor(0, 1);

  // Print a dynamic message
  lcd.print("Arduino Rocks!");

  // Add a delay for readability
  delay(1000);

  // Clear the display
  lcd.clear();

  // Print another message
  lcd.print("LCD 16x4 Demo");
  delay(1000);
}

1. No Display or Blank Screen:

   • Ensure the power supply is connected properly.
   • Adjust the contrast using the potentiometer connected to the VO pin.
   • Verify the connections to the microcontroller.

2. Flickering or Unstable Display:

   • Check for loose connections or poor soldering.
   • Ensure proper grounding of the circuit.

3. Incorrect Characters Displayed:

   • Verify the data pin connections and ensure the correct mode (4-bit or 8-bit) is configured.
   • Ensure the LiquidCrystal library is correctly initialized with the appropriate pins.

4. Backlight Not Working:

   • Check the backlight connections (A and K pins).
   • Use a current-limiting resistor if the backlight is too dim or not functioning.

Q: Can I use the LCD 16x4 with a 3.3V microcontroller?
A: The LCD 16x4 is designed for 5V operation. To use it with a 3.3V microcontroller, you will need a level shifter or voltage translator for the control and data pins.

Q: How do I display custom characters?
A: The HD44780 controller supports custom characters. Use the createChar() function in the LiquidCrystal library to define and display custom characters.

Q: Can I use the LCD 16x4 without a potentiometer?
A: Yes, you can use a fixed resistor (e.g., 1kΩ) between the VO pin and ground, but a potentiometer provides better control over contrast.

Q: Is the LCD 16x4 compatible with I2C?
A: The LCD 16x4 itself is not natively I2C-compatible, but you can use an I2C backpack module to simplify wiring and reduce pin usage.
