How to Use ESP32C3 MINI: Examples, Pinouts, and Specs

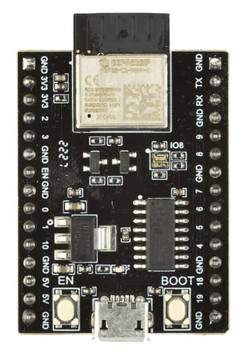

The ESP32C3 MINI is a compact, low-power microcontroller module developed by Espressif Systems. It features integrated Wi-Fi and Bluetooth Low Energy (BLE) capabilities, making it an excellent choice for Internet of Things (IoT) applications, smart devices, and embedded systems. The module is based on the ESP32-C3 chip, which is designed for high performance, low power consumption, and robust wireless connectivity.

• IoT devices and smart home automation
• Wearable electronics
• Wireless sensor networks
• Industrial automation
• Low-power Bluetooth applications
• Prototyping and development of embedded systems

The following table outlines the key technical specifications of the ESP32C3 MINI:

The ESP32C3 MINI has a total of 22 GPIO pins, which can be configured for various functions. Below is the pinout description:

1. Powering the Module:

   • Use a 5 V power supply via the USB-C connector or provide 3.3 V directly to the 3V3 pin.
   • Ensure the ground (GND) is connected to the circuit's ground.

2. Programming the Module:

   • The ESP32C3 MINI can be programmed using the Arduino IDE or Espressif's ESP-IDF framework.
   • Install the necessary board support package (BSP) for ESP32-C3 in the Arduino IDE.
   • Connect the module to your computer via USB and select the appropriate COM port.

3. Connecting Peripherals:

   • Use the GPIO pins for interfacing with sensors, actuators, and other peripherals.
   • Configure the pins in your code for the desired functionality (e.g., input, output, ADC, PWM).

4. Uploading Code:

   • Write your code in the Arduino IDE or ESP-IDF.
   • Click the upload button to flash the code to the ESP32C3 MINI.

• Voltage Levels: Ensure all connected peripherals operate at 3.3 V logic levels to avoid damaging the module.
• Deep Sleep Mode: Use deep sleep mode to minimize power consumption in battery-powered applications.
• Antenna Placement: Avoid placing metal objects near the onboard antenna to ensure optimal wireless performance.
• Pull-Up Resistors: Some GPIO pins may require external pull-up resistors for proper operation.

Below is an example of how to blink an LED connected to GPIO2 of the ESP32C3 MINI:

// Example: Blink an LED connected to GPIO2 of ESP32C3 MINI

#define LED_PIN 2  // Define the GPIO pin for the LED

void setup() {
  pinMode(LED_PIN, OUTPUT);  // Set GPIO2 as an output pin
}

void loop() {
  digitalWrite(LED_PIN, HIGH);  // Turn the LED on
  delay(1000);                  // Wait for 1 second
  digitalWrite(LED_PIN, LOW);   // Turn the LED off
  delay(1000);                  // Wait for 1 second
}

1. Module Not Detected by Computer:

   • Ensure the USB cable is functional and supports data transfer.
   • Verify that the correct COM port is selected in the Arduino IDE or ESP-IDF.

2. Code Upload Fails:

   • Check that the module is in bootloader mode by holding the BOOT button while pressing the RESET button.
   • Ensure the correct board and port are selected in the IDE.

3. Wi-Fi Connection Issues:

   • Verify the SSID and password in your code.
   • Ensure the Wi-Fi network operates on the 2.4 GHz band (not 5 GHz).

4. Bluetooth Not Working:

   • Confirm that the Bluetooth feature is enabled in your code.
   • Check for interference from other Bluetooth devices.

Q: Can the ESP32C3 MINI operate on battery power?
A: Yes, the module can be powered by a 3.7 V LiPo battery with a suitable voltage regulator to provide 3.3 V.

Q: How do I reset the module?
A: Press the RESET button on the board to restart the module.

Q: Can I use the ESP32C3 MINI with MicroPython?
A: Yes, the ESP32C3 MINI supports MicroPython. Flash the MicroPython firmware to the module and use a serial terminal to interact with it.

Q: What is the maximum range of Wi-Fi and Bluetooth?
A: The Wi-Fi range is approximately 50 meters indoors and 200 meters outdoors. Bluetooth range depends on the environment but typically extends up to 10 meters.
