The Maikrt QR Code Scanner is a compact and efficient device designed to read and decode QR codes. QR codes are two-dimensional barcodes that can store various types of information, such as URLs, text, or other data. This scanner uses advanced optical technology to capture and interpret QR codes quickly and accurately.
Explore Projects Built with Сканер QR-кода
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit is designed to function as a communication and control system with cellular capabilities, QR code scanning, and display output. It is built around an Arduino UNO microcontroller, interfaced with a SIM900A module, a QR code reader, and an I2C LCD screen, powered by a series of 18650 batteries through a boost converter. Tactile switches provide user interaction, and the Arduino's embedded code controls the operation of the circuit.

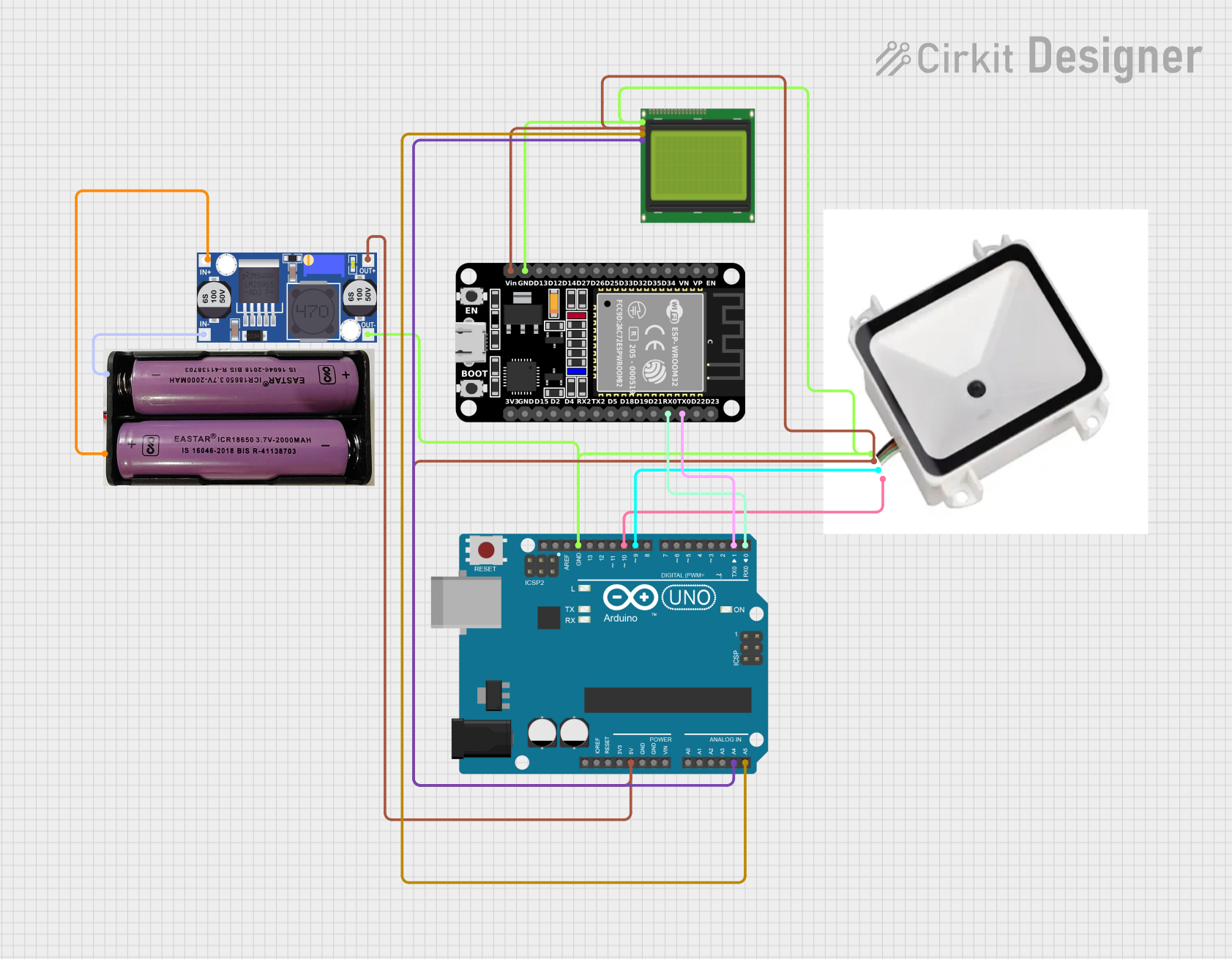

This circuit integrates an ESP32 and an Arduino UNO to interface with a QR code reader and a 20x4 I2C LCD display. The ESP32 communicates with the Arduino UNO via serial connections, while the Arduino UNO handles the QR code reader and displays the scanned data on the LCD. Power is supplied through a 7.4V battery regulated by a buck converter.
This circuit features an ESP32-CAM module connected to an HC-SR04 ultrasonic distance sensor and a red LED, powered by a 3xAAA battery pack. The ESP32-CAM reads QR codes and controls the LED based on the distance measured by the ultrasonic sensor, turning the LED on if an object is detected within 10 cm.
This circuit appears to be a simple interconnection of pins and points, with a 4-pin component serving as a central hub. The red and black pins of the 4-pin component are connected to various other pins and edge components, forming a basic network of connections without any active components or microcontroller logic.
Retail and Point-of-Sale (POS) systems for product scanning
Inventory management and logistics
Access control and ticket validation
Mobile payment systems
Marketing campaigns with QR code-based promotions
Educational tools for interactive learning
Technical Specifications
The Maikrt QR Code Scanner is designed for ease of use and high performance. Below are its key technical details:
General Specifications
Parameter
Value
Manufacturer
Maikrt
Part ID
Maikrt
Operating Voltage
5V DC
Communication Interface
USB or UART
Scan Speed
Up to 300 scans per second
Supported QR Code Types
QR Code, Data Matrix, Aztec
Operating Temperature
-10°C to 50°C
Dimensions
65mm x 45mm x 25mm
Weight
50g
Pin Configuration and Descriptions
The Maikrt QR Code Scanner typically connects via a USB or UART interface. Below is the pin configuration for the UART version:
Pin Number
Pin Name
Description
1
VCC
Power supply input (5V DC)
2
GND
Ground
3
TXD
Transmit data (UART output)
4
RXD
Receive data (UART input)
5
Trigger
External trigger for scanning (optional)
Usage Instructions
How to Use the Component in a Circuit
Power Supply: Connect the VCC pin to a 5V DC power source and the GND pin to ground.
Data Communication:
For UART: Connect the TXD pin to the RX pin of your microcontroller and the RXD pin to the TX pin of your microcontroller.
For USB: Simply plug the scanner into a USB port on your computer or microcontroller board.
Triggering a Scan:
The scanner can be set to continuous scanning mode or triggered manually using the Trigger pin.
Data Output: The decoded QR code data will be sent via the selected communication interface (UART or USB).
Important Considerations and Best Practices
Ensure the scanner is powered with a stable 5V DC supply to avoid malfunctions.
Place the scanner at an appropriate distance (typically 5-30 cm) from the QR code for optimal performance.
Avoid exposing the scanner to direct sunlight or reflective surfaces, as this may interfere with its ability to read QR codes.
Use a level surface or mount the scanner securely to prevent movement during operation.
Example: Connecting to an Arduino UNO
Below is an example of how to connect the Maikrt QR Code Scanner to an Arduino UNO using the UART interface:
Wiring
Maikrt Scanner Pin
Arduino UNO Pin
VCC
5V
GND
GND
TXD
RX (Pin 0)
RXD
TX (Pin 1)
Arduino Code
// Example code for interfacing the Maikrt QR Code Scanner with Arduino UNO
// This code reads data from the scanner and prints it to the Serial Monitor.
void setup() {
Serial.begin(9600); // Initialize Serial communication for Arduino
Serial1.begin(9600); // Initialize Serial1 for the QR Code Scanner
// Note: Serial1 is used for UART communication with the scanner
}
void loop() {
// Check if data is available from the scanner
if (Serial1.available()) {
String qrData = ""; // Variable to store the scanned QR code data
// Read all available data from the scanner
while (Serial1.available()) {
char c = Serial1.read(); // Read one character at a time
qrData += c; // Append the character to the qrData string
}
// Print the scanned QR code data to the Serial Monitor
Serial.println("QR Code Data: " + qrData);
}
}
Troubleshooting and FAQs
Common Issues and Solutions
No Data Output:
Ensure the scanner is properly powered and connected to the correct pins.
Verify that the baud rate of the scanner matches the baud rate set in your code (default is 9600).
Check for loose or faulty connections.
Scanner Not Triggering:
If using manual triggering, ensure the Trigger pin is connected and receiving the correct signal.
Verify that the scanner is not in continuous scanning mode if manual triggering is required.
Poor Scanning Performance:
Ensure the QR code is within the recommended scanning distance (5-30 cm).
Clean the scanner lens to remove dust or smudges.
Avoid scanning in environments with excessive glare or low light.
FAQs
Q: Can the scanner read barcodes other than QR codes?
A: Yes, the Maikrt QR Code Scanner supports other 2D barcodes such as Data Matrix and Aztec codes.
Q: How do I change the communication interface from USB to UART?
A: The scanner typically comes pre-configured for one interface. Refer to the manufacturer's manual for instructions on switching interfaces, if supported.
Q: What is the maximum size of a QR code the scanner can read?
A: The scanner can read QR codes up to 10 cm x 10 cm, depending on the resolution and distance.
Q: Can I use this scanner with a Raspberry Pi?
A: Yes, the scanner can be connected to a Raspberry Pi via USB or UART. Use the appropriate libraries (e.g., PySerial) for data communication.
This concludes the documentation for the Maikrt QR Code Scanner. For further assistance, refer to the manufacturer's user manual or contact technical support.
