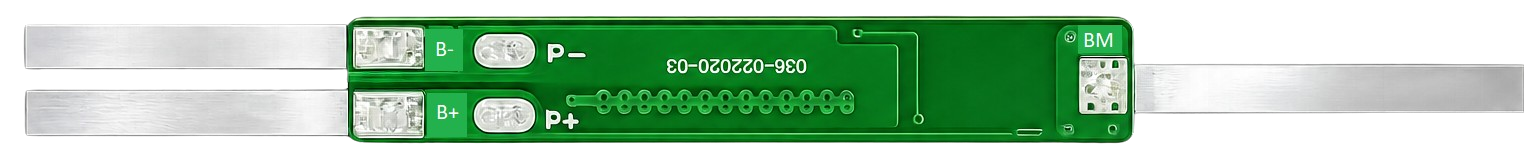

Image of BMS 2S 7.4V 9A 6MOS
Cirkit Designer LogoDesign with BMS 2S 7.4V 9A 6MOS in Cirkit Designer

Introduction

The BMS 2S 7.4V 9A 6MOS is a Battery Management System (BMS) designed by OEM for managing 2-cell lithium-ion battery packs. It ensures safe and efficient operation by providing critical protections such as overcharge, over-discharge, and short-circuit protection. With a maximum current rating of 9A and the use of 6 MOSFETs, this BMS is optimized for high-efficiency power management in compact and portable applications.

Explore Projects Built with BMS 2S 7.4V 9A 6MOS

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered Boost Converter with USB Type-C and BMS
Image of Weird Case: A project utilizing BMS 2S 7.4V 9A 6MOS in a practical application
This circuit is a power management and conversion system that includes a boost converter, battery management system (BMS), and various MOSFETs and passive components. It is designed to regulate and boost the voltage from a 2000mAh battery, providing stable power output through a USB Type C interface. The circuit also includes protection and switching mechanisms to ensure safe and efficient power delivery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Servo Control System with 2S 30A BMS and TP5100 Charger
Image of servo power supply: A project utilizing BMS 2S 7.4V 9A 6MOS in a practical application
This circuit is a battery management and charging system for a 2S lithium-ion battery pack, which powers multiple MG996R servos. The TP5100 module charges the battery pack from a 12V power supply, while the 2S 30A BMS ensures safe operation and distribution of power to the servos.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Adjustable Voltage Regulator with Li-ion 18650 Batteries and BMS
Image of mini ups: A project utilizing BMS 2S 7.4V 9A 6MOS in a practical application
This circuit is a power management system that uses four Li-ion 18650 batteries connected to a 2S 30A BMS for battery management and protection. The system includes step-up and step-down voltage regulators to provide adjustable output voltages, controlled by a rocker switch, and multiple DC jacks for power input and output.
Cirkit Designer LogoOpen Project in Cirkit Designer
18650 Li-ion Battery Pack with BMS for 5V Power Supply
Image of battary: A project utilizing BMS 2S 7.4V 9A 6MOS in a practical application
This circuit consists of a battery management system (BMS) connected to a series of 18650 Li-ion batteries arranged in a 4S configuration to provide a regulated output voltage. The BMS ensures safe charging and discharging of the batteries, while a connector provides a 5V output for external devices.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with BMS 2S 7.4V 9A 6MOS

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Weird Case: A project utilizing BMS 2S 7.4V 9A 6MOS in a practical application
Battery-Powered Boost Converter with USB Type-C and BMS
This circuit is a power management and conversion system that includes a boost converter, battery management system (BMS), and various MOSFETs and passive components. It is designed to regulate and boost the voltage from a 2000mAh battery, providing stable power output through a USB Type C interface. The circuit also includes protection and switching mechanisms to ensure safe and efficient power delivery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of servo power supply: A project utilizing BMS 2S 7.4V 9A 6MOS in a practical application
Battery-Powered Servo Control System with 2S 30A BMS and TP5100 Charger
This circuit is a battery management and charging system for a 2S lithium-ion battery pack, which powers multiple MG996R servos. The TP5100 module charges the battery pack from a 12V power supply, while the 2S 30A BMS ensures safe operation and distribution of power to the servos.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of mini ups: A project utilizing BMS 2S 7.4V 9A 6MOS in a practical application
Battery-Powered Adjustable Voltage Regulator with Li-ion 18650 Batteries and BMS
This circuit is a power management system that uses four Li-ion 18650 batteries connected to a 2S 30A BMS for battery management and protection. The system includes step-up and step-down voltage regulators to provide adjustable output voltages, controlled by a rocker switch, and multiple DC jacks for power input and output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of battary: A project utilizing BMS 2S 7.4V 9A 6MOS in a practical application
18650 Li-ion Battery Pack with BMS for 5V Power Supply
This circuit consists of a battery management system (BMS) connected to a series of 18650 Li-ion batteries arranged in a 4S configuration to provide a regulated output voltage. The BMS ensures safe charging and discharging of the batteries, while a connector provides a 5V output for external devices.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Lithium-ion battery packs for portable electronics
  • Electric bicycles and scooters
  • Power banks and backup power systems
  • Robotics and IoT devices
  • Solar energy storage systems

Technical Specifications

The following table outlines the key technical specifications of the BMS 2S 7.4V 9A 6MOS:

Parameter Value
Manufacturer OEM
Part ID BMS
Battery Configuration 2S (2 cells in series)
Nominal Voltage 7.4V
Maximum Continuous Current 9A
Overcharge Protection Yes
Over-discharge Protection Yes
Short-circuit Protection Yes
MOSFET Count 6
Operating Temperature Range -20°C to 60°C
Dimensions 45mm x 20mm x 3mm

Pin Configuration and Descriptions

The BMS 2S 7.4V 9A 6MOS has the following pin configuration:

Pin Name Description
B+ Positive terminal of the battery pack
B- Negative terminal of the battery pack
P+ Positive terminal of the load or charger
P- Negative terminal of the load or charger
BM Connection point between the two cells in the 2S battery pack (middle terminal)

Usage Instructions

How to Use the Component in a Circuit

  1. Connect the Battery Pack:

    • Connect the positive terminal of the battery pack to the B+ pin.
    • Connect the negative terminal of the battery pack to the B- pin.
    • Connect the midpoint between the two cells to the BM pin.
  2. Connect the Load or Charger:

    • Connect the positive terminal of the load or charger to the P+ pin.
    • Connect the negative terminal of the load or charger to the P- pin.
  3. Verify Connections:

    • Double-check all connections to ensure proper polarity and secure contacts.
    • Ensure the battery pack voltage is within the supported range (7.4V nominal).
  4. Power On:

    • Once all connections are verified, the BMS will automatically manage the battery pack's operation, including charging, discharging, and protection.

Important Considerations and Best Practices

  • Battery Compatibility: Ensure the BMS is used with a 2S lithium-ion battery pack only. Using it with other configurations may damage the BMS or the batteries.
  • Current Rating: Do not exceed the maximum continuous current rating of 9A to avoid overheating or damage.
  • Heat Dissipation: Ensure adequate ventilation or heat sinking if the BMS operates near its maximum current rating for extended periods.
  • Wiring: Use appropriately rated wires to handle the current and minimize voltage drops.
  • Testing: Before connecting to a load, test the BMS with a multimeter to confirm proper operation.

Arduino Integration Example

The BMS 2S 7.4V 9A 6MOS can be used with an Arduino to monitor battery voltage. Below is an example code snippet for reading the voltage of a 2S battery pack using an Arduino UNO:

// Define the analog pin connected to the voltage divider
const int voltagePin = A0;

// Define the voltage divider ratio (e.g., 10:1)
const float voltageDividerRatio = 10.0;

// Define the reference voltage of the Arduino (5V for most boards)
const float referenceVoltage = 5.0;

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  // Read the raw analog value from the voltage divider
  int rawValue = analogRead(voltagePin);

  // Convert the raw value to a voltage
  float batteryVoltage = (rawValue * referenceVoltage / 1023.0) * voltageDividerRatio;

  // Print the battery voltage to the Serial Monitor
  Serial.print("Battery Voltage: ");
  Serial.print(batteryVoltage);
  Serial.println(" V");

  delay(1000); // Wait for 1 second before the next reading
}

Note: Use a voltage divider circuit to step down the battery voltage to a safe range for the Arduino's analog input (0-5V). Adjust the voltageDividerRatio in the code to match your circuit.

Troubleshooting and FAQs

Common Issues and Solutions

  1. BMS Not Powering On:

    • Cause: Incorrect wiring or insufficient battery voltage.
    • Solution: Verify all connections and ensure the battery pack voltage is within the supported range (7.4V nominal).
  2. Overheating:

    • Cause: Exceeding the maximum current rating of 9A.
    • Solution: Reduce the load current or improve heat dissipation with a heatsink or better ventilation.
  3. Load Not Receiving Power:

    • Cause: Over-discharge protection has been triggered.
    • Solution: Recharge the battery pack to reset the protection circuit.
  4. Charger Not Working:

    • Cause: Overcharge protection has been triggered.
    • Solution: Disconnect the charger and verify the battery voltage. Ensure the charger is compatible with a 2S lithium-ion battery pack.

FAQs

  • Q: Can this BMS be used with a 3S battery pack?
    A: No, this BMS is specifically designed for 2S (7.4V nominal) lithium-ion battery packs. Using it with a 3S pack may damage the BMS or the batteries.

  • Q: What happens if the load exceeds 9A?
    A: The BMS will trigger overcurrent protection to prevent damage. Reduce the load to within the 9A limit.

  • Q: Can I use this BMS for LiFePO4 batteries?
    A: No, this BMS is designed for lithium-ion batteries. LiFePO4 batteries have different voltage thresholds and require a dedicated BMS.

  • Q: How do I reset the BMS after a protection event?
    A: Disconnect the load or charger, then reconnect the battery pack. The BMS will reset automatically.

This concludes the documentation for the BMS 2S 7.4V 9A 6MOS. For further assistance, refer to the manufacturer's support resources.
