How to Use 9V Battery: Examples, Pinouts, and Specs

Introduction

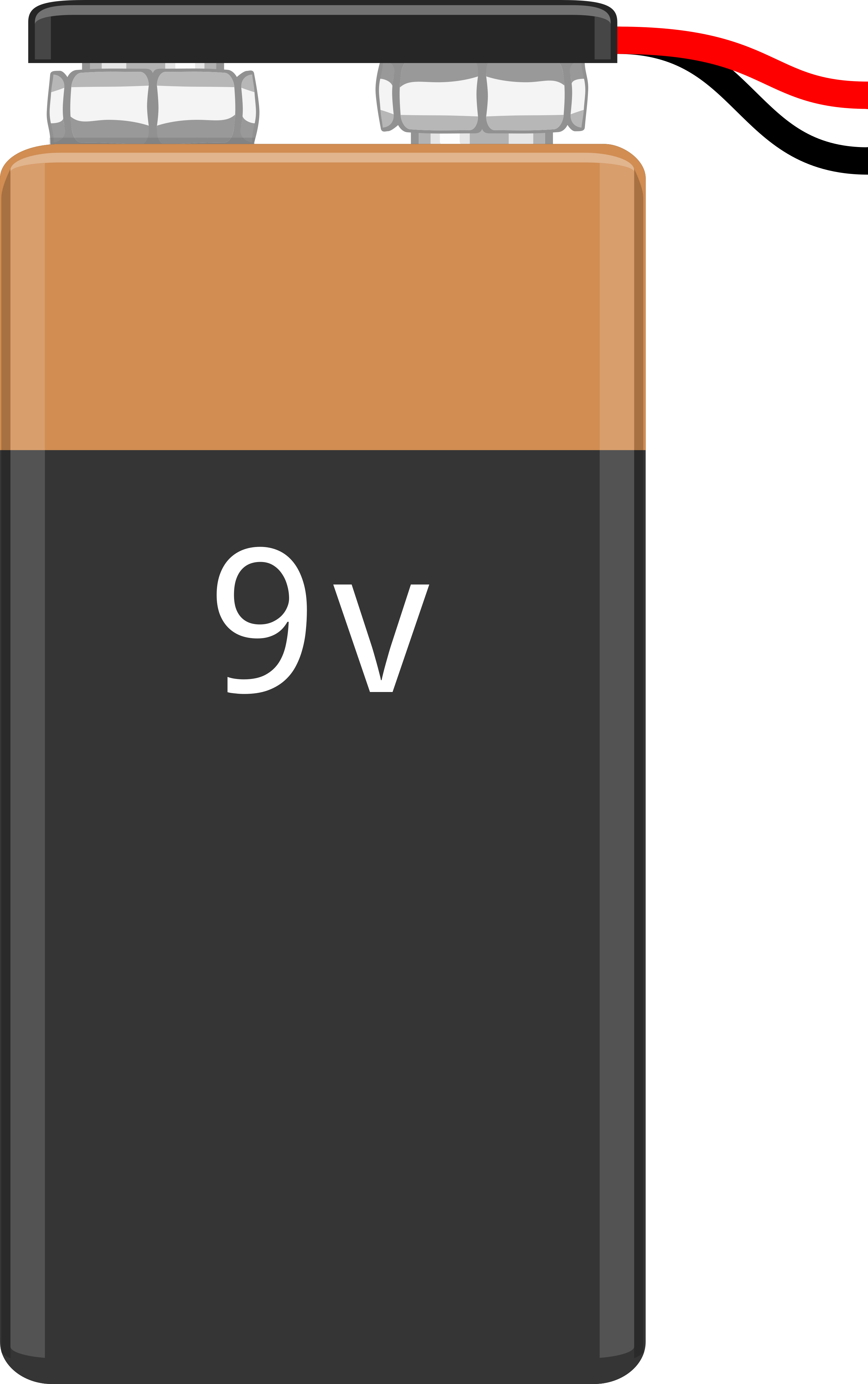

The 9V battery is a compact power source that provides a nominal voltage of 9 volts. It is widely used in various electronic devices and circuits due to its portability and ease of use. Common applications include powering small electronic projects, smoke detectors, portable radios, and Arduino-based systems. Its rectangular shape and snap connector make it a convenient choice for hobbyists and professionals alike.

Explore Projects Built with 9V Battery

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

Battery-Powered Multi-Voltage Supply with Barrel Jack Connectors

This circuit consists of multiple 9V batteries connected in series and parallel configurations to provide power to three separate 2.1mm barrel jacks. Each barrel jack receives a different combination of series and parallel battery connections to achieve the desired voltage and current levels.

Open Project in Cirkit Designer

Battery-Powered Fan with Rocker Switch Control

This circuit consists of a 9V battery powering a fan through a rocker switch. The switch controls the connection between the battery and the fan, allowing the user to turn the fan on and off.

Open Project in Cirkit Designer

Battery-Powered LED Circuit with Toggle Switch and Voltmeter

This circuit consists of a 9V battery powering a red LED through a 2k Ohm resistor and a toggle switch. Additionally, a 7-segment panel voltmeter is connected across the battery to display the voltage.

Open Project in Cirkit Designer

Battery-Powered Fan Circuit

This circuit consists of a 9V battery connected to a fan. The positive terminal of the battery is connected to the 5V pin of the fan, and the negative terminal of the battery is connected to the GND pin of the fan, providing the necessary power for the fan to operate.

Open Project in Cirkit Designer

Technical Specifications

• Nominal Voltage: 9V
• Capacity: Typically ranges from 400mAh to 600mAh (varies by manufacturer and type)
• Chemistry: Alkaline, Lithium, or Rechargeable (NiMH or Li-ion)
• Dimensions: 48.5mm x 26.5mm x 17.5mm (standard size)
• Weight: Approximately 45g (varies by type)
• Connector Type: Snap connector (male and female terminals)

Pin Configuration and Descriptions

The 9V battery has two terminals: a positive (+) terminal and a negative (-) terminal. These terminals are accessed via the snap connector.

Usage Instructions

How to Use the 9V Battery in a Circuit

1. Connect the Snap Connector: Use a 9V battery snap connector to attach the battery to your circuit. Ensure the polarity is correct: the red wire connects to the positive terminal (+), and the black wire connects to the negative terminal (-).
2. Powering a Circuit: Connect the battery's positive terminal to the circuit's VCC or power input and the negative terminal to the ground (GND).
3. Voltage Regulation: If your circuit requires a voltage lower than 9V, use a voltage regulator (e.g., LM7805 for 5V output) to step down the voltage safely.

Important Considerations and Best Practices

• Avoid Short Circuits: Ensure the positive and negative terminals do not come into direct contact, as this can cause overheating or damage to the battery.
• Monitor Battery Life: Replace or recharge the battery when the voltage drops significantly below 9V to avoid performance issues in your circuit.
• Storage: Store the battery in a cool, dry place and disconnect it from the circuit when not in use to prevent leakage or discharge.
• Rechargeable Batteries: If using a rechargeable 9V battery, use a compatible charger to avoid overcharging or damaging the battery.

Example: Using a 9V Battery with an Arduino UNO

The 9V battery can be used to power an Arduino UNO via its DC barrel jack or VIN pin. Below is an example of connecting the battery to the Arduino and running a simple LED blink program.

Circuit Setup

1. Connect the positive terminal of the 9V battery to the Arduino's VIN pin (or DC barrel jack).
2. Connect the negative terminal of the battery to the Arduino's GND pin.
3. Connect an LED to pin 13 of the Arduino with a 220-ohm resistor in series.

Arduino Code

// Simple LED Blink Program
// This program blinks an LED connected to pin 13 of the Arduino UNO.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues

1. Battery Drains Quickly:

   • Cause: High current draw from the circuit or a faulty component.
   • Solution: Check the circuit for excessive current consumption and replace any faulty components. Use a battery with a higher capacity if needed.

2. Circuit Does Not Power On:

   • Cause: Incorrect polarity or loose connections.
   • Solution: Verify that the positive and negative terminals are connected correctly and securely.

3. Battery Overheats:

   • Cause: Short circuit or excessive current draw.
   • Solution: Disconnect the battery immediately and inspect the circuit for shorts or high-power components.

FAQs

• Can I use a 9V battery to power a 5V circuit?

  • Yes, but you must use a voltage regulator (e.g., LM7805) to step down the voltage to 5V.

• How long will a 9V battery last?

  • Battery life depends on the current draw of your circuit. For example, a 500mAh battery powering a circuit that draws 50mA will last approximately 10 hours.

• Can I recharge an alkaline 9V battery?

  • No, alkaline batteries are not rechargeable. Use a rechargeable NiMH or Li-ion 9V battery instead.

• Is it safe to leave a 9V battery connected to a circuit?

  • It is safe as long as the circuit is designed to handle the battery's voltage and current. However, disconnect the battery when not in use to prevent unnecessary discharge.
