How to Use Splicing connector WAGO 221: Examples, Pinouts, and Specs
Design with Splicing connector WAGO 221 in Cirkit DesignerIntroduction

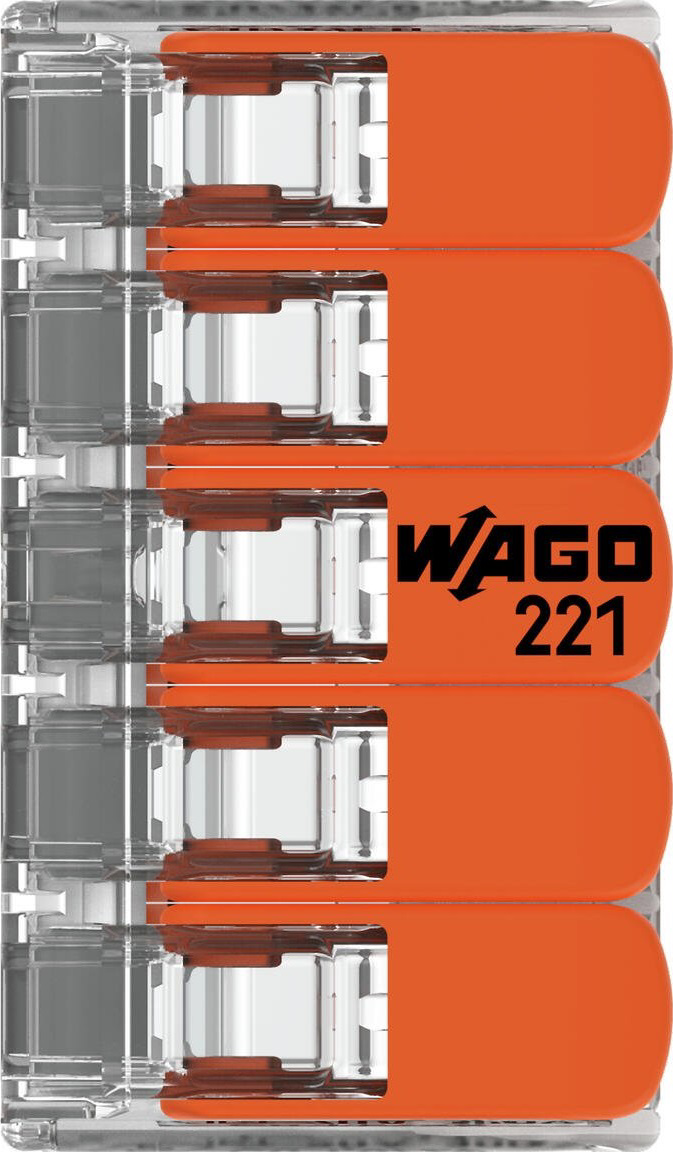

The WAGO 221-415 splicing connector is a compact, versatile, and user-friendly solution for connecting electrical wires. Designed for quick and reliable splicing, it features a transparent housing that allows for visual inspection of the connections. This connector supports a wide range of wire types and sizes, making it ideal for various electrical applications.
Explore Projects Built with Splicing connector WAGO 221
Open Project in Cirkit Designer
Open Project in Cirkit Designer
Open Project in Cirkit Designer
Open Project in Cirkit DesignerExplore Projects Built with Splicing connector WAGO 221
Open Project in Cirkit DesignerOpen Project in Cirkit DesignerOpen Project in Cirkit DesignerOpen Project in Cirkit DesignerCommon Applications and Use Cases
- Electrical wiring in residential, commercial, and industrial installations
- Temporary or permanent wire connections in prototyping and testing
- Connecting solid, stranded, or fine-stranded wires
- Use in junction boxes, lighting systems, and control panels
Technical Specifications
The WAGO 221-415 splicing connector is designed to meet the needs of modern electrical installations. Below are its key technical details:
General Specifications
| Parameter | Value |
|---|---|
| Manufacturer | WAGO |
| Part Number | 221-415 |
| Wire Type Compatibility | Solid, stranded, and fine-stranded wires |
| Wire Size Range | 0.14 mm² to 4 mm² (24–12 AWG) |
| Voltage Rating | 450 V AC |
| Current Rating | 32 A |
| Operating Temperature | -20°C to +85°C |
| Housing Material | Polycarbonate (transparent) |
| Flammability Rating | UL94 V-2 |
| Number of Connections | 5 |
Pin Configuration and Descriptions
The WAGO 221-415 has five connection points, each designed to accommodate a single wire. The table below describes the pin configuration:
| Pin Number | Description |
|---|---|
| 1 | Wire connection point 1 |
| 2 | Wire connection point 2 |
| 3 | Wire connection point 3 |
| 4 | Wire connection point 4 |
| 5 | Wire connection point 5 |
Usage Instructions
The WAGO 221-415 splicing connector is designed for ease of use, even for those with minimal experience in electrical wiring. Follow the steps below to use the connector effectively:
Steps for Connecting Wires
- Prepare the Wires: Strip approximately 10–12 mm of insulation from the end of each wire.
- Open the Lever: Lift the orange lever on the connector to open the clamping mechanism.
- Insert the Wire: Insert the stripped end of the wire into the connection point until it reaches the stop.
- Close the Lever: Push the orange lever back down to secure the wire in place. Ensure the wire is firmly clamped.
- Inspect the Connection: Use the transparent housing to visually confirm that the wire is properly inserted and clamped.
Important Considerations and Best Practices
- Ensure that the wire insulation is not clamped inside the connector.
- Do not exceed the voltage and current ratings specified for the connector.
- Use the appropriate wire size range (0.14 mm² to 4 mm²) for optimal performance.
- Avoid using the connector in environments exceeding its operating temperature range (-20°C to +85°C).
- For stranded or fine-stranded wires, ensure all strands are properly inserted into the connector.
Example: Connecting to an Arduino UNO
While the WAGO 221-415 is not directly programmable, it can be used to connect wires from sensors, actuators, or power supplies to an Arduino UNO. Below is an example of wiring a 5V power supply to an Arduino UNO using the WAGO 221-415:
// Example: Powering an Arduino UNO using a WAGO 221-415 connector
// Ensure the 5V power supply is properly connected to the Arduino's VIN and GND pins.
// Steps:
// 1. Use the WAGO 221-415 to connect the positive wire of the power supply to the VIN pin.
// 2. Use another connection point to connect the negative wire to the GND pin.
// 3. Verify the connections using the transparent housing of the connector.
Troubleshooting and FAQs
Common Issues and Solutions
Wire Slips Out of the Connector
- Cause: The wire was not fully inserted or the lever was not properly closed.
- Solution: Reopen the lever, reinsert the wire fully, and close the lever securely.
Poor Electrical Contact
- Cause: The wire size is outside the supported range or the wire strands are not properly inserted.
- Solution: Verify the wire size and ensure all strands are inserted into the connector.
Connector Overheats
- Cause: The current exceeds the 32 A rating.
- Solution: Reduce the load current or use a connector with a higher current rating.
Lever Feels Stiff
- Cause: Dust or debris in the clamping mechanism.
- Solution: Clean the connector and ensure the lever moves freely.
FAQs
Q: Can the WAGO 221-415 be reused?
A: Yes, the connector is designed for multiple uses. Simply open the lever, remove the wire, and reuse the connector.
Q: Is the WAGO 221-415 suitable for outdoor use?
A: The connector is not waterproof. For outdoor applications, use it in a weatherproof enclosure.
Q: Can I connect wires of different sizes in the same connector?
A: Yes, the WAGO 221-415 supports mixed wire sizes as long as they fall within the 0.14 mm² to 4 mm² range.
Q: How do I know if the wire is properly connected?
A: Use the transparent housing to visually inspect the connection. Ensure the stripped wire is fully inserted and clamped.
This concludes the documentation for the WAGO 221-415 splicing connector.
