How to Use Airspeed Sensor MS4525DO: Examples, Pinouts, and Specs

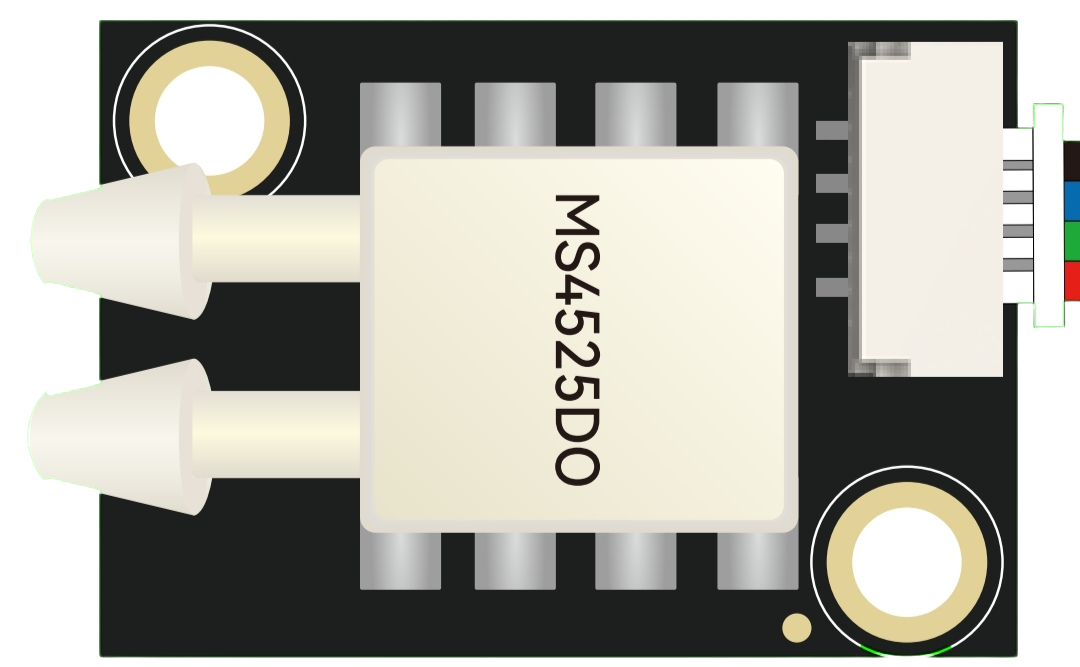

The MS4525DO is a high-precision differential pressure sensor designed for measuring airspeed in a variety of applications. It operates by detecting pressure differences and converting them into a digital signal, making it ideal for use in drones, RC aircraft, weather monitoring systems, and other airspeed measurement systems. Its compact design, high accuracy, and digital output make it a popular choice for both hobbyists and professionals.

• Airspeed measurement in drones and RC aircraft
• Weather monitoring and environmental sensing
• Industrial flow measurement systems
• HVAC (Heating, Ventilation, and Air Conditioning) systems

The MS4525DO is a digital pressure sensor with the following key specifications:

The MS4525DO has a 4-pin interface for power, ground, and communication. The pinout is as follows:

1. Power Supply: Connect the VDD pin to a 3.3V or 5.0V power source, and the GND pin to the ground of your circuit.
2. I²C Communication: Connect the SDA and SCL pins to the corresponding I²C data and clock lines of your microcontroller. Use pull-up resistors (typically 4.7kΩ) on the SDA and SCL lines if they are not already present in your circuit.
3. Pressure Ports: Attach the positive and negative pressure ports to the appropriate locations in your system to measure differential pressure.

• Ensure the supply voltage matches the sensor's requirements (3.3V or 5.0V).
• Avoid exposing the sensor to pressures beyond its specified range to prevent damage.
• Use proper filtering and decoupling capacitors on the power supply line to reduce noise.
• Keep the I²C bus length as short as possible to maintain signal integrity.

Below is an example of how to interface the MS4525DO with an Arduino UNO using the I²C protocol:

#include <Wire.h>

// I2C address of the MS4525DO sensor
#define MS4525DO_ADDRESS 0x28

void setup() {
  Wire.begin(); // Initialize I2C communication
  Serial.begin(9600); // Initialize serial communication for debugging
  Serial.println("MS4525DO Airspeed Sensor Test");
}

void loop() {
  Wire.beginTransmission(MS4525DO_ADDRESS); // Start communication with sensor
  Wire.write(0x00); // Request data from the sensor
  Wire.endTransmission(false); // End transmission but keep I2C active

  Wire.requestFrom(MS4525DO_ADDRESS, 2); // Request 2 bytes of data
  if (Wire.available() == 2) {
    uint8_t msb = Wire.read(); // Read the most significant byte
    uint8_t lsb = Wire.read(); // Read the least significant byte

    // Combine the two bytes into a 14-bit pressure value
    int16_t rawPressure = ((msb & 0x3F) << 8) | lsb;

    // Convert raw pressure to a meaningful value (example calculation)
    float pressure = (rawPressure - 8192) / 16384.0 * 1.0; // Adjust scale as needed

    Serial.print("Pressure: ");
    Serial.print(pressure);
    Serial.println(" psi");
  } else {
    Serial.println("Error: No data received from sensor");
  }

  delay(1000); // Wait 1 second before the next reading
}

• The I²C address of the MS4525DO is typically 0x28, but verify this in your specific setup.
• The pressure conversion formula may vary depending on the sensor's model and range. Refer to the datasheet for exact calculations.

1. No Data Received from the Sensor

   • Ensure the sensor is powered correctly (check VDD and GND connections).
   • Verify the I²C address matches the sensor's default or configured address.
   • Check for proper pull-up resistors on the SDA and SCL lines.

2. Incorrect Pressure Readings

   • Confirm the pressure ports are connected correctly (positive and negative ports).
   • Ensure the pressure range of the sensor matches your application.
   • Check for leaks or blockages in the pressure lines.

3. I²C Communication Errors

   • Verify the I²C bus speed is compatible with the sensor (typically 100kHz or 400kHz).
   • Ensure the SDA and SCL lines are not too long or noisy.

Q: Can the MS4525DO measure absolute pressure?
A: No, the MS4525DO is a differential pressure sensor and measures the difference between two pressure inputs.

Q: What is the maximum I²C bus length for this sensor?
A: The maximum bus length depends on the pull-up resistor values and the capacitance of the bus. For reliable communication, keep the bus length as short as possible (typically less than 1 meter).

Q: Can I use the MS4525DO with a 5V microcontroller?
A: Yes, the MS4525DO supports a supply voltage of up to 5.0V and is compatible with 5V logic levels.

By following this documentation, you can successfully integrate the MS4525DO airspeed sensor into your projects and achieve accurate airspeed measurements.
