How to Use NRF24L01: Examples, Pinouts, and Specs

Introduction

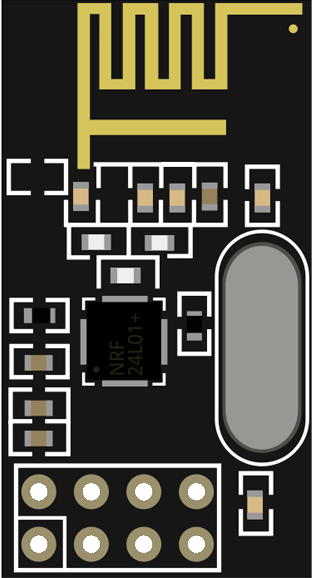

The NRF24L01 is a low-power, 2.4 GHz wireless transceiver module designed for short-range communication. It is widely used in applications such as remote controls, wireless sensors, and IoT devices. This module supports multiple data rates (250 kbps, 1 Mbps, and 2 Mbps) and features a built-in packet handling system, making it a reliable and efficient choice for wireless communication.

Explore Projects Built with NRF24L01

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

Arduino 101 with NRF24L01 Wireless Communication Module

This circuit connects an Arduino 101 microcontroller to an NRF24L01 wireless transceiver module. The Arduino provides power, ground, and SPI communication lines to the NRF24L01, enabling wireless data transmission capabilities. The connections suggest that the Arduino can control the NRF24L01 to send and receive data wirelessly, likely for remote sensing or control applications.

Open Project in Cirkit Designer

Arduino Nano and NRF24L01 Based Wireless Remote Control

This circuit features an Arduino Nano microcontroller interfaced with an NRF24L01 wireless transceiver module, powered by a 4 x AAA battery mount. Four pushbuttons are connected to the Arduino's digital inputs with pull-up resistors, and they are used to send different wireless commands via the NRF24L01 module when pressed. The Arduino's SPI interface (D11/MOSI, D12/MISO, D13/SCK) is used for communication with the NRF24L01, and digital pins D9 and D10 are used for the module's CE and CSN pins, respectively.

Open Project in Cirkit Designer

Arduino Nano Wireless Communication System with nRF24L01 Module

This circuit connects an nRF24L01 wireless transceiver module to an Arduino Nano microcontroller through an adapter board. The Arduino Nano is configured to communicate with the nRF24L01 via SPI (Serial Peripheral Interface), using pins D9 and D10 for chip enable (CE) and chip select (CSN), and pins D11 to D13 for the SPI bus (MOSI, MISO, SCK). An electrolytic capacitor is connected across the power supply lines likely for power stabilization.

Open Project in Cirkit Designer

Arduino UNO with NRF24L01 Wireless Communication Module

This circuit connects an Arduino UNO with an NRF24L01 wireless transceiver module. The Arduino provides power and SPI communication lines to the NRF24L01, enabling wireless data transmission. The code for the Arduino is currently a template with empty setup and loop functions, indicating that the specific functionality for the wireless communication has yet to be implemented.

Open Project in Cirkit Designer

Common Applications:

• Wireless sensor networks
• Home automation systems
• Remote controls for drones, toys, and appliances
• Internet of Things (IoT) devices
• Industrial monitoring and control systems

Technical Specifications

Below are the key technical details of the NRF24L01 module:

Pin Configuration and Descriptions

The NRF24L01 module typically has 8 pins. Below is the pinout and description:

Usage Instructions

How to Use the NRF24L01 in a Circuit

1. Power Supply: Connect the VCC pin to a 3.3V power source. Do not connect it directly to 5V as it may damage the module.
2. SPI Communication: Connect the SPI pins (CSN, SCK, MOSI, MISO) to the corresponding SPI pins on your microcontroller.
3. CE Pin: Use a GPIO pin on your microcontroller to control the CE pin. Set it high to enable data transmission or reception.
4. IRQ Pin: Optionally connect the IRQ pin to a GPIO pin on your microcontroller to handle interrupts.
5. Antenna: Ensure the module has a proper antenna for optimal range and performance.

Important Considerations:

• Use a 10 µF capacitor across the VCC and GND pins to stabilize the power supply.
• Keep the module away from sources of interference, such as motors or high-frequency circuits.
• For longer range, consider using the NRF24L01+PA+LNA variant with an external antenna.

Example Code for Arduino UNO

Below is an example of how to use the NRF24L01 module with an Arduino UNO to send and receive data. This example uses the popular RF24 library.

Transmitter Code:

#include <SPI.h>
#include <nRF24L01.h>
#include <RF24.h>

// Define the CE and CSN pins for the NRF24L01 module
#define CE_PIN 9
#define CSN_PIN 10

// Create an RF24 object
RF24 radio(CE_PIN, CSN_PIN);

// Define the address for communication
const byte address[6] = "00001";

void setup() {
  Serial.begin(9600); // Initialize serial communication
  radio.begin();      // Initialize the NRF24L01 module
  radio.openWritingPipe(address); // Set the address for the transmitter
  radio.setPALevel(RF24_PA_LOW);  // Set power level to low
  radio.stopListening();          // Set the module to transmit mode
}

void loop() {
  const char text[] = "Hello, World!"; // Data to send
  bool success = radio.write(&text, sizeof(text)); // Send data
  if (success) {
    Serial.println("Message sent successfully!");
  } else {
    Serial.println("Message failed to send.");
  }
  delay(1000); // Wait 1 second before sending the next message
}

Receiver Code:

#include <SPI.h>
#include <nRF24L01.h>
#include <RF24.h>

// Define the CE and CSN pins for the NRF24L01 module
#define CE_PIN 9
#define CSN_PIN 10

// Create an RF24 object
RF24 radio(CE_PIN, CSN_PIN);

// Define the address for communication
const byte address[6] = "00001";

void setup() {
  Serial.begin(9600); // Initialize serial communication
  radio.begin();      // Initialize the NRF24L01 module
  radio.openReadingPipe(0, address); // Set the address for the receiver
  radio.setPALevel(RF24_PA_LOW);     // Set power level to low
  radio.startListening();            // Set the module to receive mode
}

void loop() {
  if (radio.available()) { // Check if data is available
    char text[32] = "";    // Buffer to store received data
    radio.read(&text, sizeof(text)); // Read the data
    Serial.print("Received: ");
    Serial.println(text);  // Print the received data
  }
}

Notes:

• Install the RF24 library in the Arduino IDE before using the code.
• Ensure both the transmitter and receiver use the same address and data rate.

Troubleshooting and FAQs

Common Issues:

1. No Communication Between Modules:

   • Ensure both modules are powered correctly (3.3V).
   • Verify the CE and CSN pins are connected to the correct GPIO pins.
   • Check that both modules use the same address and data rate.

2. Short Range or Unstable Connection:

   • Use a capacitor (10 µF) across VCC and GND to stabilize the power supply.
   • Ensure the antenna is properly connected and not obstructed.

3. Module Not Responding:

   • Verify the SPI connections and ensure the microcontroller's SPI pins are correctly configured.
   • Check for loose or faulty wiring.

FAQs:

Q: Can I use the NRF24L01 with a 5V microcontroller?
A: Yes, but you must use a 3.3V regulator or level shifter to step down the voltage for the NRF24L01 module.

Q: What is the maximum range of the NRF24L01?
A: The range is up to 100 meters in line-of-sight conditions. For longer range, use the NRF24L01+PA+LNA variant.

Q: How many devices can communicate simultaneously?
A: The NRF24L01 supports up to 6 data pipes, allowing communication with up to 6 devices.

Q: Why is my module consuming too much power?
A: Ensure the module is in standby mode when not transmitting or receiving data to reduce power consumption.
