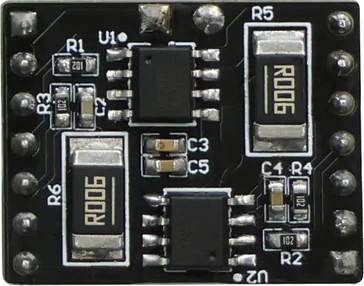

Image of AT8236
Cirkit Designer LogoDesign with AT8236 in Cirkit Designer

Introduction

The AT8236 is a high-performance, low-power operational amplifier (op-amp) designed for precision signal processing applications. It offers a wide bandwidth, low noise, and high slew rate, making it ideal for use in a variety of analog circuits. The AT8236 is commonly used in audio processing, sensor signal conditioning, active filters, and instrumentation amplifiers. Its robust design ensures reliable performance in both commercial and industrial environments.

Explore Projects Built with AT8236

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

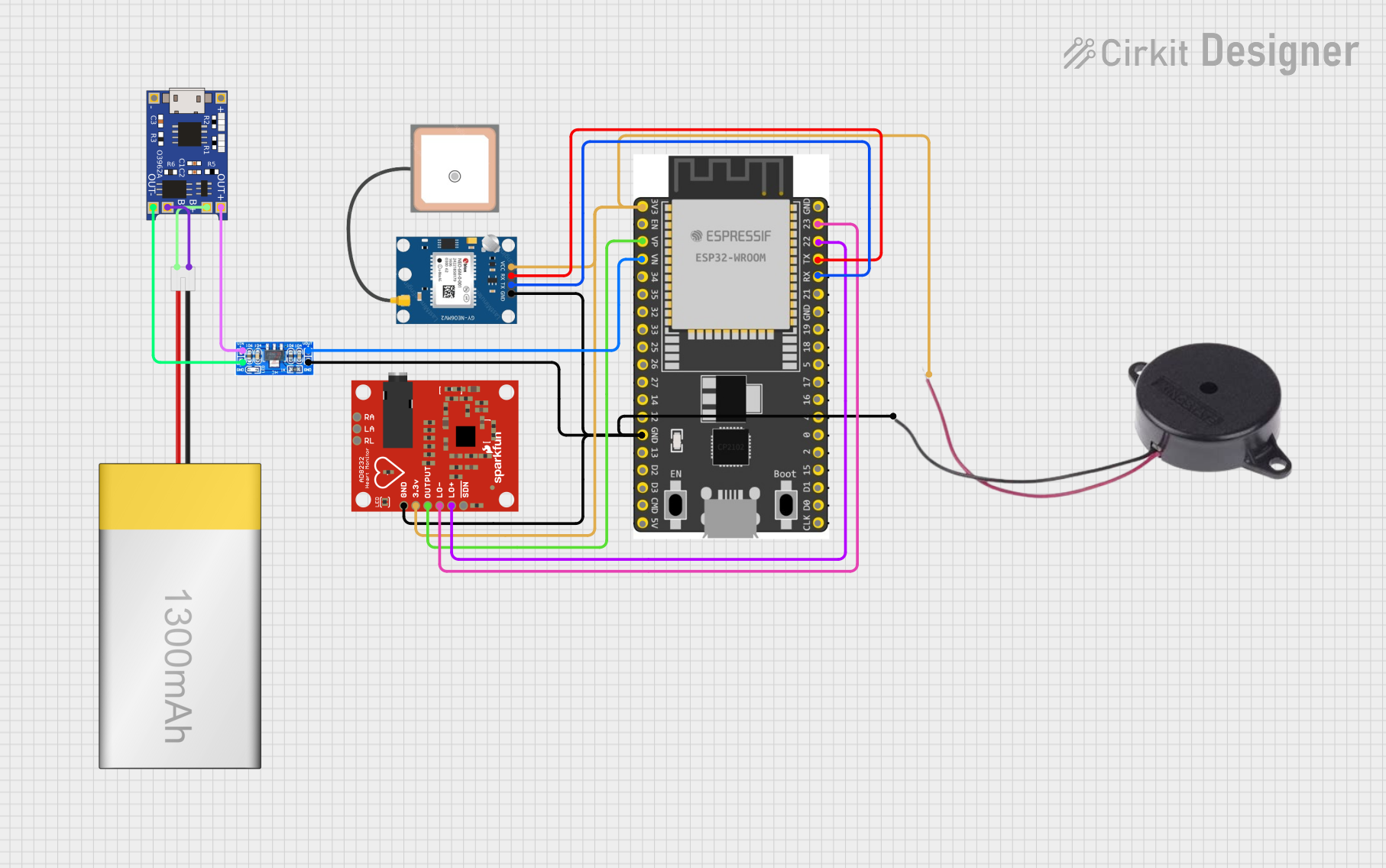

ESP32-Based GPS and Heart Rate Monitoring System with Battery Management
Image of tes1: A project utilizing AT8236 in a practical application
This circuit features an ESP32 microcontroller interfaced with a GPS NEO 6M module for location tracking and an AD8232 Heart Rate Monitor for biometric data collection. The ESP32 reads the heart rate signal and monitors the leads-off detection (LO+/LO-) from the AD8232, and communicates with the GPS module via UART (TX/RX). Power management is handled by an AMS1117 voltage regulator and a TP4056 charge controller, which together with a LiPoly battery, provide a regulated power supply to the circuit components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Micro and AD8232 Heart Rate Monitor with Lead-Off Detection
Image of ecg : A project utilizing AT8236 in a practical application
This circuit is a heart rate monitoring system that uses an AD8232 Heart Rate Monitor module connected to an Arduino Micro (Rev3). The Arduino reads the heart rate signal from the AD8232 and prints the analog values to the Serial Monitor, while also checking for lead-off detection.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Battery-Powered Heart Rate Monitor with SD Card Storage
Image of ECG Recorder: A project utilizing AT8236 in a practical application
This circuit is a portable heart rate monitoring system that uses an ESP32 microcontroller to read data from an AD8232 heart rate monitor and store it on an SD card module. The system is powered by a 3.7V LiPo battery with a TP4056 module for battery charging and protection.
Cirkit Designer LogoOpen Project in Cirkit Designer

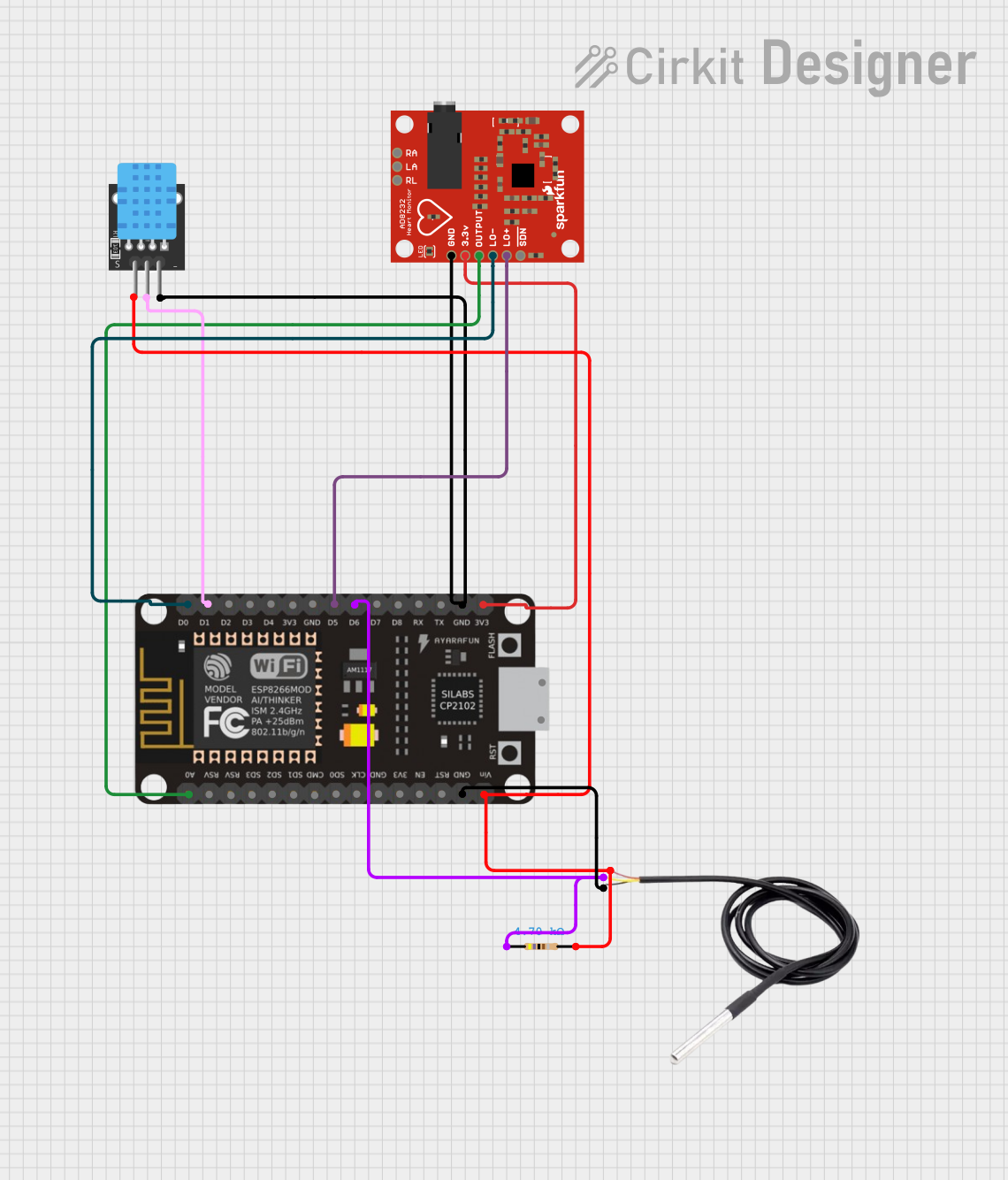

ESP-8266 Based Health Monitoring System with Heart Rate and Temperature Sensing
Image of leston: A project utilizing AT8236 in a practical application
This circuit features an ESP-8266 microcontroller interfaced with an AD8232 heart rate monitor, a KY-015 DHT11 temperature and humidity sensor, and a DS18B20 waterproof temperature sensor. The ESP-8266 reads the heart rate signal from the AD8232, temperature and humidity data from the DHT11, and temperature data from the DS18B20. A 4.7k Ohm resistor is used in the connection with the DS18B20 sensor, likely as a pull-up resistor for the data line.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with AT8236

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of tes1: A project utilizing AT8236 in a practical application
ESP32-Based GPS and Heart Rate Monitoring System with Battery Management
This circuit features an ESP32 microcontroller interfaced with a GPS NEO 6M module for location tracking and an AD8232 Heart Rate Monitor for biometric data collection. The ESP32 reads the heart rate signal and monitors the leads-off detection (LO+/LO-) from the AD8232, and communicates with the GPS module via UART (TX/RX). Power management is handled by an AMS1117 voltage regulator and a TP4056 charge controller, which together with a LiPoly battery, provide a regulated power supply to the circuit components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ecg : A project utilizing AT8236 in a practical application
Arduino Micro and AD8232 Heart Rate Monitor with Lead-Off Detection
This circuit is a heart rate monitoring system that uses an AD8232 Heart Rate Monitor module connected to an Arduino Micro (Rev3). The Arduino reads the heart rate signal from the AD8232 and prints the analog values to the Serial Monitor, while also checking for lead-off detection.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ECG Recorder: A project utilizing AT8236 in a practical application
ESP32-Based Battery-Powered Heart Rate Monitor with SD Card Storage
This circuit is a portable heart rate monitoring system that uses an ESP32 microcontroller to read data from an AD8232 heart rate monitor and store it on an SD card module. The system is powered by a 3.7V LiPo battery with a TP4056 module for battery charging and protection.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of leston: A project utilizing AT8236 in a practical application
ESP-8266 Based Health Monitoring System with Heart Rate and Temperature Sensing
This circuit features an ESP-8266 microcontroller interfaced with an AD8232 heart rate monitor, a KY-015 DHT11 temperature and humidity sensor, and a DS18B20 waterproof temperature sensor. The ESP-8266 reads the heart rate signal from the AD8232, temperature and humidity data from the DHT11, and temperature data from the DS18B20. A 4.7k Ohm resistor is used in the connection with the DS18B20 sensor, likely as a pull-up resistor for the data line.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

The following table outlines the key technical specifications of the AT8236 operational amplifier:

Parameter Value
Supply Voltage Range ±2.5V to ±15V
Input Offset Voltage 0.5 mV (typical)
Input Bias Current 10 nA (typical)
Gain Bandwidth Product 10 MHz
Slew Rate 5 V/µs
Input Noise Voltage 4 nV/√Hz
Output Voltage Swing ±(Vcc - 1.5V)
Operating Temperature -40°C to +85°C
Package Options SOIC-8, DIP-8

Pin Configuration and Descriptions

The AT8236 is typically available in an 8-pin package. The pin configuration and descriptions are as follows:

Pin Number Pin Name Description
1 Offset Null 1 Offset voltage adjustment (connect to a pot)
2 Inverting Input Inverting input terminal (-)
3 Non-Inverting Input Non-inverting input terminal (+)
4 V- (GND) Negative power supply or ground
5 Offset Null 2 Offset voltage adjustment (connect to a pot)
6 Output Output terminal
7 V+ Positive power supply
8 NC (No Connect) Not connected internally

Usage Instructions

How to Use the AT8236 in a Circuit

  1. Power Supply: Connect the AT8236 to a dual power supply (e.g., ±5V or ±12V) or a single supply (e.g., 5V) depending on your application. Ensure the supply voltage is within the specified range.
  2. Input Connections:
    • Connect the signal source to the non-inverting input (Pin 3) or the inverting input (Pin 2), depending on the desired configuration (e.g., non-inverting or inverting amplifier).
    • Use appropriate resistors and capacitors to set the gain and bandwidth of the circuit.
  3. Output Connection: Connect the output (Pin 6) to the load or the next stage of the circuit. Ensure the load impedance is within the recommended range to avoid distortion.
  4. Offset Adjustment: If precise offset voltage adjustment is required, connect a potentiometer between Offset Null 1 (Pin 1) and Offset Null 2 (Pin 5), with the wiper connected to V+.

Important Considerations and Best Practices

  • Decoupling Capacitors: Place decoupling capacitors (e.g., 0.1 µF ceramic and 10 µF electrolytic) close to the power supply pins (V+ and V-) to minimize noise and ensure stable operation.
  • Thermal Management: Ensure adequate ventilation or heat dissipation if the op-amp operates in high-power applications.
  • Input Protection: Use series resistors or clamping diodes to protect the input pins from voltage spikes or excessive currents.
  • PCB Layout: Keep the traces for the input and output signals as short as possible to reduce noise and interference.

Example: Connecting the AT8236 to an Arduino UNO

The AT8236 can be used to amplify an analog signal before feeding it into the Arduino UNO's analog input. Below is an example circuit and code:

Circuit Description

  • Connect the AT8236 in a non-inverting amplifier configuration.
  • The input signal is connected to the non-inverting input (Pin 3).
  • A resistor divider network sets the gain of the amplifier.
  • The output of the AT8236 is connected to the Arduino's analog input (e.g., A0).

Arduino Code Example

// Example code to read an amplified signal from the AT8236 using Arduino UNO

const int analogPin = A0; // Analog pin connected to AT8236 output
int sensorValue = 0;      // Variable to store the analog reading

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
}

void loop() {
  sensorValue = analogRead(analogPin); // Read the analog value from A0
  float voltage = sensorValue * (5.0 / 1023.0); // Convert to voltage
  Serial.print("Amplified Signal Voltage: ");
  Serial.println(voltage); // Print the voltage to the Serial Monitor
  delay(500); // Wait for 500 ms before the next reading
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Signal:

    • Cause: Incorrect power supply connections.
    • Solution: Verify that V+ and V- are connected to the correct voltage levels.
  2. Distorted Output:

    • Cause: Load impedance is too low.
    • Solution: Ensure the load impedance is within the recommended range.
  3. High Noise in Output:

    • Cause: Insufficient decoupling or poor PCB layout.
    • Solution: Add decoupling capacitors near the power supply pins and improve PCB layout.
  4. Offset Voltage Too High:

    • Cause: Offset adjustment not configured.
    • Solution: Use a potentiometer to adjust the offset voltage.

FAQs

Q1: Can the AT8236 operate with a single power supply?
A1: Yes, the AT8236 can operate with a single supply (e.g., 5V), but the input and output signals must remain within the specified voltage range.

Q2: What is the maximum gain I can achieve with the AT8236?
A2: The maximum gain depends on the external resistor configuration and the bandwidth of the op-amp. For high gains, ensure the bandwidth is sufficient for your application.

Q3: Is the AT8236 suitable for audio applications?
A3: Yes, the AT8236's low noise and high slew rate make it an excellent choice for audio signal amplification.

Q4: How do I protect the AT8236 from voltage spikes?
A4: Use clamping diodes or transient voltage suppressors (TVS) at the input and power supply pins to protect the op-amp from voltage spikes.
