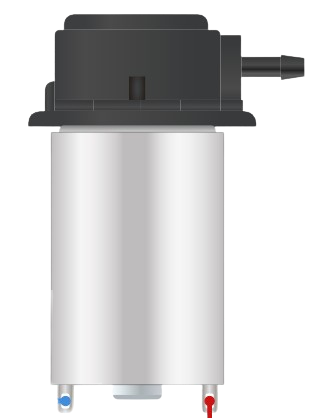

Image of Kamoer     CKP-DC-S08     NKP-DC-S08 Peristaltic Pump  12V-0.25A 55ml/min    [Bill Ludwig]
Cirkit Designer LogoDesign with Kamoer CKP-DC-S08 NKP-DC-S08 Peristaltic Pump 12V-0.25A 55ml/min [Bill Ludwig] in Cirkit Designer

Introduction

The Kamoer CKP-DC-S08 / NKP-DC-S08 Peristaltic Pump is a compact and efficient pump designed for precise fluid delivery. It operates at 12V DC with a current of 0.25A and delivers a flow rate of 55ml/min. This pump is ideal for applications requiring accurate and contamination-free fluid transfer, such as laboratory experiments, medical devices, food processing, and industrial automation.
