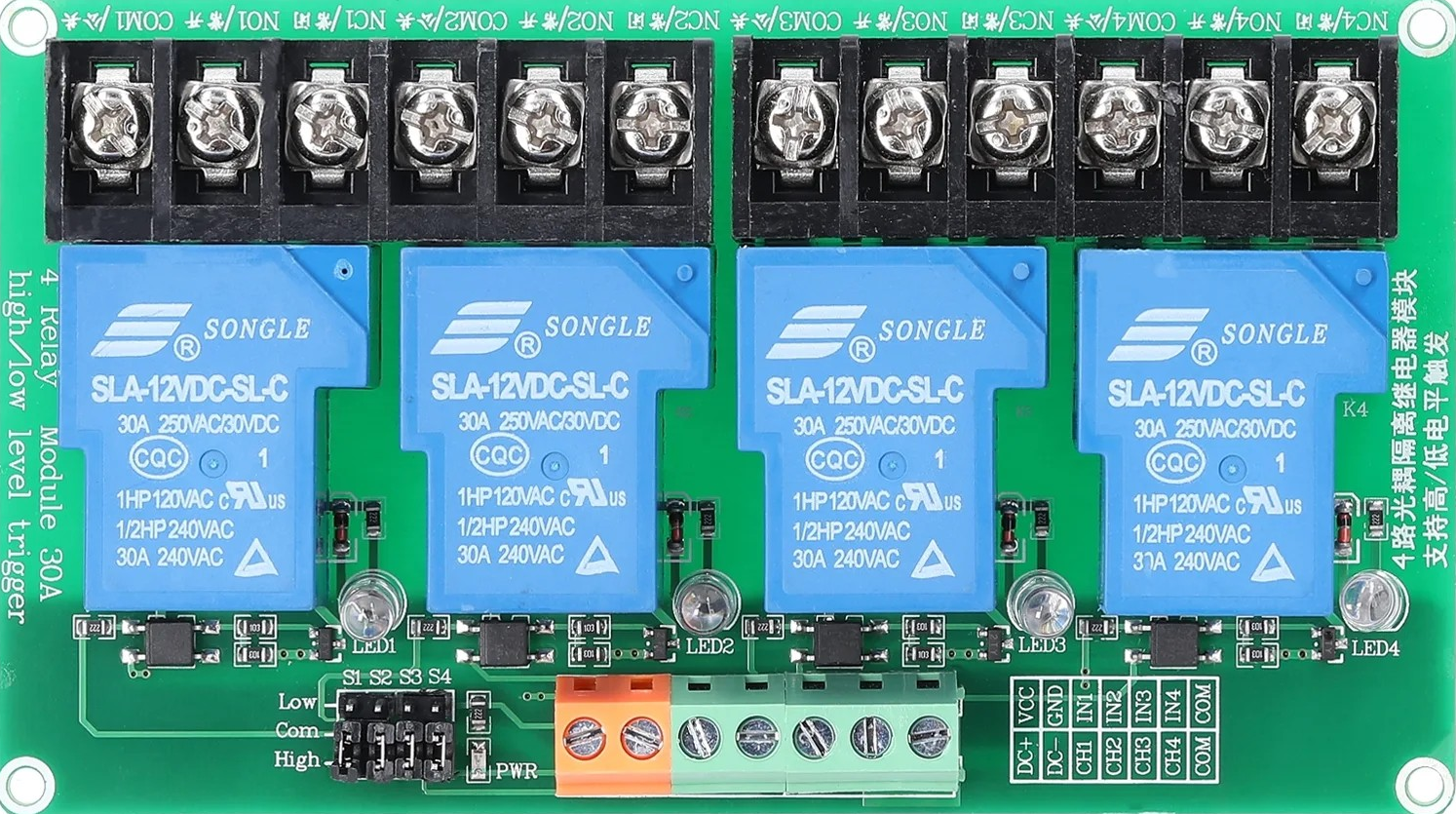

Image of Relay Module 5V 4 CH 30A
Cirkit Designer LogoDesign with Relay Module 5V 4 CH 30A in Cirkit Designer

Introduction

The Relay Module 5V 4 CH 30A is a versatile electronic component designed to control high-power devices using low-power control signals. This module features four independent relay channels, each capable of switching loads up to 30A at 250V AC or 30V DC. It is widely used in home automation, industrial control systems, and DIY projects to interface microcontrollers or low-voltage circuits with high-power devices such as motors, lights, and appliances.
