How to Use esp32 38p typec cp2102: Examples, Pinouts, and Specs

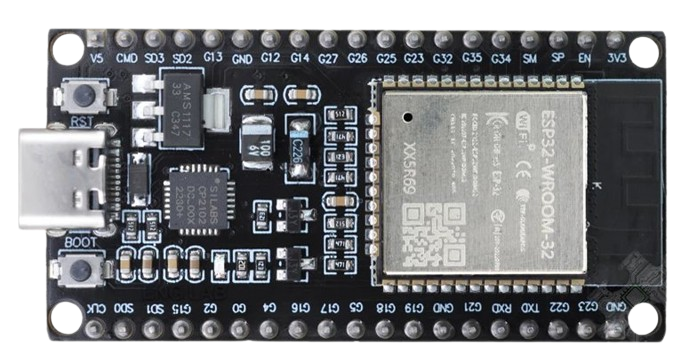

The ESP32 38P Type-C CP2102 is a versatile and powerful microcontroller module developed by Espressif Systems. It is based on the ESP32 dual-core processor, which integrates Wi-Fi and Bluetooth capabilities, making it ideal for IoT (Internet of Things) applications. This module features a USB Type-C interface for easy programming and power supply, along with the CP2102 USB-to-UART bridge for seamless communication with a computer.

Common applications of the ESP32 38P Type-C CP2102 include:

• IoT devices and smart home automation
• Wireless sensor networks
• Wearable electronics
• Robotics and drones
• Prototyping and development of connected devices

The ESP32 38P Type-C CP2102 module is packed with features that make it suitable for a wide range of applications. Below are its key technical specifications:

The ESP32 38P Type-C CP2102 module has 38 pins, each with specific functions. Below is a table summarizing the pin configuration:

Refer to the ESP32 datasheet for detailed pin multiplexing and alternate functions.

1. Powering the Module:

   • Connect the module to a computer or power source using a USB Type-C cable. The onboard voltage regulator will convert the 5V input to 3.3V for the ESP32.
   • Alternatively, supply 3.3V directly to the 3V3 pin.

2. Programming the Module:

   • Install the CP2102 USB-to-UART driver on your computer (if not already installed).
   • Use the Arduino IDE or Espressif's ESP-IDF to write and upload code to the ESP32.
   • Select the correct board (ESP32 Dev Module) and port in the Arduino IDE.

3. Connecting Peripherals:

   • Use the GPIO pins to connect sensors, actuators, or other peripherals. Ensure that the voltage levels are compatible with the ESP32's 3.3V logic.

4. Boot Mode Selection:

   • To upload code, hold the BOOT button (connected to GPIO0) while pressing the EN button to reset the module.

• Voltage Levels: Avoid applying voltages higher than 3.3V to the GPIO pins to prevent damage.
• Deep Sleep Mode: Use deep sleep mode to minimize power consumption in battery-powered applications.
• Antenna Placement: Ensure that the onboard antenna has sufficient clearance from metal objects to maintain optimal wireless performance.
• Heat Management: The ESP32 can get warm during operation. Ensure proper ventilation if used in an enclosed space.

Below is an example of how to use the ESP32 38P Type-C CP2102 with the Arduino IDE to blink an LED connected to GPIO2:

// Blink an LED connected to GPIO2 on the ESP32

// Define the GPIO pin for the LED
#define LED_PIN 2

void setup() {
  // Initialize the LED pin as an output
  pinMode(LED_PIN, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(LED_PIN, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(LED_PIN, LOW);
  delay(1000); // Wait for 1 second
}

1. ESP32 Not Detected by Computer:

   • Ensure the CP2102 driver is installed correctly.
   • Try a different USB Type-C cable (some cables are power-only and do not support data transfer).

2. Code Upload Fails:

   • Check that the correct board and port are selected in the Arduino IDE.
   • Hold the BOOT button while pressing the EN button to enter bootloader mode.

3. Wi-Fi Connection Issues:

   • Verify the SSID and password in your code.
   • Ensure the ESP32 is within range of the Wi-Fi router.

4. Overheating:

   • Avoid overloading the GPIO pins with excessive current.
   • Use a heatsink or improve ventilation if necessary.

Q: Can I power the ESP32 module with a battery?
A: Yes, you can use a 3.7V LiPo battery connected to the 3V3 pin or a 5V power source connected to the VIN pin.

Q: How do I reset the ESP32?
A: Press the EN button to reset the module.

Q: Can I use the ESP32 with 5V logic devices?
A: No, the ESP32 operates at 3.3V logic. Use a level shifter to interface with 5V devices.

Q: What is the maximum current output of the GPIO pins?
A: Each GPIO pin can source or sink up to 12 mA safely. Avoid exceeding this limit to prevent damage.

This concludes the documentation for the ESP32 38P Type-C CP2102 module. For further details, refer to the official Espressif Systems datasheet and technical resources.
