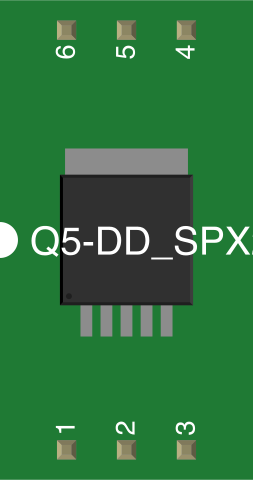

How to Use SPX29302: Examples, Pinouts, and Specs

The SPX29302 is a low-dropout (LDO) voltage regulator designed to provide a stable and accurate output voltage with minimal noise. It supports an output current of up to 3A and operates over a wide input voltage range, making it ideal for power management in various electronic systems. Its low dropout voltage and high efficiency make it suitable for applications such as microcontroller power supplies, battery-powered devices, and industrial equipment.

• Power supplies for microcontrollers and digital circuits
• Battery-powered devices
• Industrial and automotive electronics
• Low-noise analog circuits
• Communication systems

1. Input Capacitor: Connect a capacitor (typically 10µF or higher) between the VIN pin and ground to stabilize the input voltage.
2. Output Capacitor: Place a low-ESR capacitor (10µF or higher) between the VOUT pin and ground to ensure stable operation and reduce output noise.
3. Adjustable Output Voltage: For adjustable versions, connect a resistor divider network between the VOUT, ADJ, and GND pins to set the desired output voltage. Use the formula: [ V_{OUT} = V_{REF} \times \left(1 + \frac{R_1}{R_2}\right) + I_{ADJ} \times R_1 ] where ( V_{REF} ) is typically 1.25V, and ( I_{ADJ} ) is the adjustable pin current (typically 50µA).
4. Thermal Considerations: Ensure proper heat dissipation by using a heatsink or PCB thermal pads, especially when operating at high currents.

The SPX29302 can be used to power an Arduino UNO with a stable 5V supply. Below is an example circuit and code:

• Connect the VIN pin of the SPX29302 to a 9V DC power source.
• Connect the VOUT pin to the 5V pin of the Arduino UNO.
• Place a 10µF capacitor between VIN and GND, and another 10µF capacitor between VOUT and GND.

// Example code to blink an LED using Arduino UNO powered by SPX29302
const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

• Use low-ESR capacitors for stable operation.
• Avoid exceeding the maximum input voltage (16V) or output current (3A).
• Ensure proper thermal management to prevent overheating.
• For adjustable versions, use precision resistors in the feedback network for accurate output voltage.

1. Output Voltage is Unstable

   • Ensure the input and output capacitors meet the recommended values and are low-ESR.
   • Check for loose connections or poor solder joints.

2. Excessive Heat Generation

   • Verify that the input voltage is not excessively higher than the output voltage.
   • Use a heatsink or improve PCB thermal dissipation.

3. No Output Voltage

   • Confirm that the input voltage is within the specified range.
   • Check the connections and ensure the capacitors are properly installed.

4. Incorrect Output Voltage

   • For adjustable versions, verify the resistor divider values.
   • Check for short circuits or incorrect wiring.

Q: Can the SPX29302 be used with a battery?
A: Yes, the SPX29302 is suitable for battery-powered applications due to its low dropout voltage and high efficiency.

Q: What is the minimum load current required for stable operation?
A: The SPX29302 requires a minimum load current of approximately 10mA for proper regulation.

Q: Can I use ceramic capacitors with the SPX29302?
A: Yes, ceramic capacitors with low ESR are recommended for both input and output to ensure stability.

Q: How do I calculate the power dissipation?
A: Power dissipation can be calculated as: [ P_{DISS} = (V_{IN} - V_{OUT}) \times I_{OUT} ] Ensure the total power dissipation does not exceed the thermal limits of the package.

By following this documentation, users can effectively integrate the SPX29302 into their designs for reliable and efficient voltage regulation.
