How to Use 12v 7ah Battery: Examples, Pinouts, and Specs

Introduction

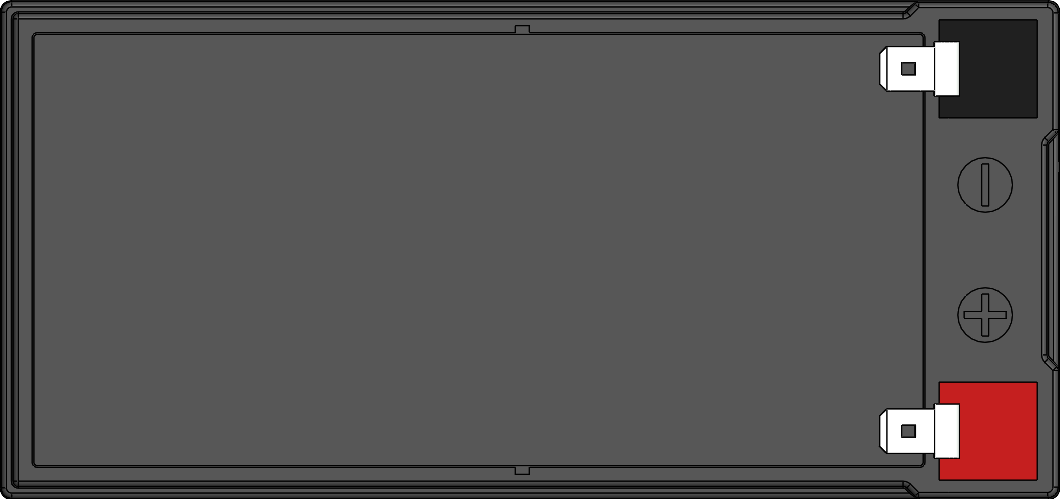

The 12V 7Ah battery is a rechargeable sealed lead-acid (SLA) battery that provides a nominal voltage of 12 volts and a capacity of 7 amp-hours (Ah). It is widely used in applications requiring reliable and consistent power delivery. This battery is known for its durability, low maintenance, and ability to deliver high current for short periods, making it suitable for backup power systems, uninterruptible power supplies (UPS), alarm systems, emergency lighting, and small-scale renewable energy setups.

Explore Projects Built with 12v 7ah Battery

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

12V Battery-Powered Fan System

This circuit connects a 120mm 12V DC fan to a 12V 7Ah battery. The fan's positive and negative terminals are directly connected to the corresponding positive and negative terminals of the battery, allowing the fan to operate at its rated voltage.

Open Project in Cirkit Designer

Solar-Powered ESP32 IoT Device with Battery Backup

This circuit is designed to charge a 12v 7ah battery using a solar panel, with a charge controller managing the charging process to ensure safe operation. A voltage regulator is used to provide a stable 3.3V output, which is likely used to power an ESP-WROOM-32 microcontroller module. Capacitors are included for voltage smoothing and noise reduction on the power supply lines.

Open Project in Cirkit Designer

Solar-Powered Environmental Monitoring System with ESP32-C3 and MPPT Charge Control

This circuit is designed for solar energy management and monitoring. It includes a 12V AGM battery charged by solar panels through an MPPT charge controller, with voltage monitoring provided by an INA3221 sensor. Additionally, a 3.7V battery is connected to an ESP32-C3 microcontroller and an AHT21 sensor for environmental data collection, with power management handled by a Waveshare Solar Manager.

Open Project in Cirkit Designer

12V Power Supply with HX-M350 Backup Battery Switching

This circuit is designed to provide a backup power solution using a 12V 200Ah battery and a 12V power supply, with the HX-M350 module managing the switching between these power sources. The HX-M350 module automatically switches to the battery power when the main 12V power supply fails or is unavailable, ensuring uninterrupted power to the load. There is no microcontroller or additional control logic involved, indicating that the switching mechanism is likely handled entirely by the HX-M350 module itself.

Open Project in Cirkit Designer

Common Applications

• Uninterruptible Power Supplies (UPS)
• Emergency lighting systems
• Security and alarm systems
• Small solar power systems
• Portable electronic devices
• Electric scooters and toys

Technical Specifications

The following table outlines the key technical specifications of the 12V 7Ah battery:

Terminal Configuration

The 12V 7Ah battery typically features two terminals for electrical connections. The table below describes the terminal configuration:

Usage Instructions

How to Use the 12V 7Ah Battery in a Circuit

1. Determine the Load Requirements: Ensure the connected load does not exceed the battery's capacity (7Ah) or its maximum discharge current.
2. Connect the Terminals:
   • Identify the positive (+) and negative (-) terminals.
   • Use appropriate connectors or cables to securely attach the battery to your circuit.
3. Charging the Battery:
   • Use a compatible SLA battery charger with the correct voltage and current ratings.
   • Set the charger to the recommended charging voltage (14.4V - 14.7V for cyclic use or 13.5V - 13.8V for float use).
   • Avoid overcharging or deep discharging the battery to prolong its lifespan.
4. Monitor the Battery:
   • Use a voltmeter to periodically check the battery voltage.
   • Disconnect the battery from the load if the voltage drops below 10.5V to prevent deep discharge.

Important Considerations and Best Practices

• Ventilation: Ensure proper ventilation during charging to prevent heat buildup.
• Polarity: Always connect the positive terminal to the positive side of the circuit and the negative terminal to the negative side.
• Storage: Store the battery in a cool, dry place when not in use. Recharge every 3-6 months to prevent self-discharge.
• Safety: Avoid short-circuiting the terminals, as this can cause sparks or damage the battery.

Example: Connecting to an Arduino UNO

The 12V 7Ah battery can be used to power an Arduino UNO via a voltage regulator (e.g., LM7805) to step down the voltage to 5V. Below is an example circuit and code:

Circuit Setup

1. Connect the positive terminal of the battery to the input pin of the LM7805 voltage regulator.
2. Connect the output pin of the LM7805 to the 5V pin of the Arduino UNO.
3. Connect the ground terminal of the battery to the ground pin of the Arduino UNO.

Arduino Code Example

// Example code to blink an LED using an Arduino UNO powered by a 12V 7Ah battery
// Ensure the battery is connected via a voltage regulator to provide 5V to the Arduino

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

FAQs

1. Can I use this battery in parallel or series configurations?

   • Yes, you can connect multiple 12V 7Ah batteries in parallel to increase capacity or in series to increase voltage. Ensure all batteries are of the same type and charge level.

2. How long will the battery last on a full charge?

   • The runtime depends on the load. For example, a 7Ah battery can theoretically power a 7A load for 1 hour or a 1A load for 7 hours.

3. Is it safe to leave the battery on a charger?

   • Only if the charger is designed for SLA batteries with float charging capability. Otherwise, overcharging can damage the battery.

4. What is the recommended depth of discharge?

   • For optimal lifespan, avoid discharging the battery below 50% of its capacity (approximately 12V).

By following these guidelines and best practices, you can ensure the safe and efficient use of your 12V 7Ah battery in various applications.
