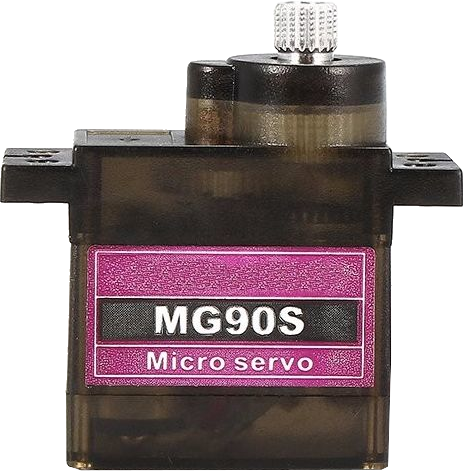

The Servo MG90S is a small, lightweight servo motor widely used in robotics, RC vehicles, and hobby projects. It features a 180-degree range of motion, making it ideal for applications requiring precise angular positioning. With a torque rating of approximately 2.5 kg/cm, the MG90S is capable of handling moderate loads while maintaining compact dimensions. Its metal gear construction ensures durability and reliability, even under continuous use.
Explore Projects Built with Servo MG90S
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit is a control system utilizing an Arduino Mega 2560 to manage multiple MG90S servos, an LCD display, a DS3231 RTC module, a SIM900A GSM module, and an ESP32 for communication. It also includes a relay module to control a 12V solenoid lock, an IR sensor for input, and a Li-ion battery for power supply.
This circuit is designed for a remote-controlled vehicle or drone, featuring a flight controller that manages a brushless motor, servomotors for actuation, telemetry for data communication, and a GPS module for positioning. It is powered by a lipo battery and includes a receiver for remote control inputs.
This circuit is designed around an ESP8266 NodeMCU microcontroller, which interfaces with a variety of sensors and a servo motor. It includes a PIR motion sensor to detect movement, a sound sensor for audio detection, and a water level sensor for monitoring liquid levels. The MG90S servo motor is controlled by the microcontroller, and the entire system is powered by a battery pack.
This is a servo control system featuring an Arduino UNO that processes input from a dual-axis joystick and push switches to operate multiple MG996R servo motors. It is designed for precise multi-axis control, potentially for applications like robotics or remote-controlled mechanisms.
The Servo MG90S is designed for ease of use and compatibility with a wide range of microcontrollers and power sources. Below are its key technical details:
Parameter
Specification
Operating Voltage
4.8V to 6.0V
Stall Torque
2.2 kg/cm (4.8V), 2.5 kg/cm (6.0V)
Operating Speed
0.1 sec/60° (4.8V), 0.08 sec/60° (6.0V)
Range of Motion
0° to 180°
Gear Type
Metal
Weight
13.4 g
Dimensions
22.8 x 12.2 x 28.5 mm
Connector Type
3-pin female header
Pin Configuration
The MG90S servo motor has a 3-pin connector for power, ground, and signal. Below is the pinout:
Pin
Wire Color
Description
1
Brown
Ground (GND)
2
Red
Power (VCC, 4.8V–6.0V)
3
Orange
Signal (PWM input)
Usage Instructions
Connecting the Servo MG90S
Power Supply: Connect the red wire to a 5V power source (or 6V for higher torque). Ensure the power supply can provide sufficient current (at least 1A per servo).
Ground: Connect the brown wire to the ground (GND) of your circuit.
Signal: Connect the orange wire to a PWM-capable pin on your microcontroller (e.g., Arduino).
Controlling the Servo with Arduino UNO
The Servo MG90S can be controlled using the Arduino Servo library, which simplifies generating PWM signals. Below is an example code to control the servo:
#include <Servo.h> // Include the Servo library
Servo myServo; // Create a Servo object to control the MG90S
void setup() {
myServo.attach(9); // Attach the servo to pin 9 on the Arduino
}
void loop() {
myServo.write(0); // Move the servo to 0 degrees
delay(1000); // Wait for 1 second
myServo.write(90); // Move the servo to 90 degrees
delay(1000); // Wait for 1 second
myServo.write(180); // Move the servo to 180 degrees
delay(1000); // Wait for 1 second
}
Important Considerations
Power Supply: Avoid powering the servo directly from the Arduino's 5V pin, as it may not provide sufficient current. Use an external power source with a common ground.
PWM Signal: Ensure the PWM signal frequency is approximately 50 Hz (standard for servos).
Mechanical Limits: Do not force the servo beyond its 0°–180° range to prevent damage to the gears.
Troubleshooting and FAQs
Common Issues
Servo Not Moving
Cause: Insufficient power supply or incorrect wiring.
Solution: Verify the power source provides 4.8V–6.0V and check all connections.
Servo Jittering
Cause: Electrical noise or unstable power supply.
Solution: Use a capacitor (e.g., 100 µF) across the power and ground lines to stabilize the voltage.
Servo Overheating
Cause: Prolonged stall condition or excessive load.
Solution: Reduce the load or avoid holding the servo in a stalled position.
Limited Range of Motion
Cause: Incorrect PWM signal or mechanical obstruction.
Solution: Ensure the PWM signal corresponds to the full 0°–180° range and check for physical obstructions.
FAQs
Q: Can I use the MG90S with a 3.3V microcontroller?
A: Yes, but you must provide a separate 5V–6V power source for the servo. Connect the grounds of the microcontroller and the servo power supply.
Q: How much current does the MG90S draw?
A: The MG90S typically draws 150–200 mA during normal operation and up to 1A during stall conditions.
Q: Can I control multiple MG90S servos with one Arduino?
A: Yes, but ensure your power supply can handle the combined current draw of all servos.
Q: What is the lifespan of the MG90S?
A: The lifespan depends on usage conditions, but the metal gears provide better durability compared to plastic-geared servos.
By following this documentation, you can effectively integrate the Servo MG90S into your projects and troubleshoot common issues with ease.
