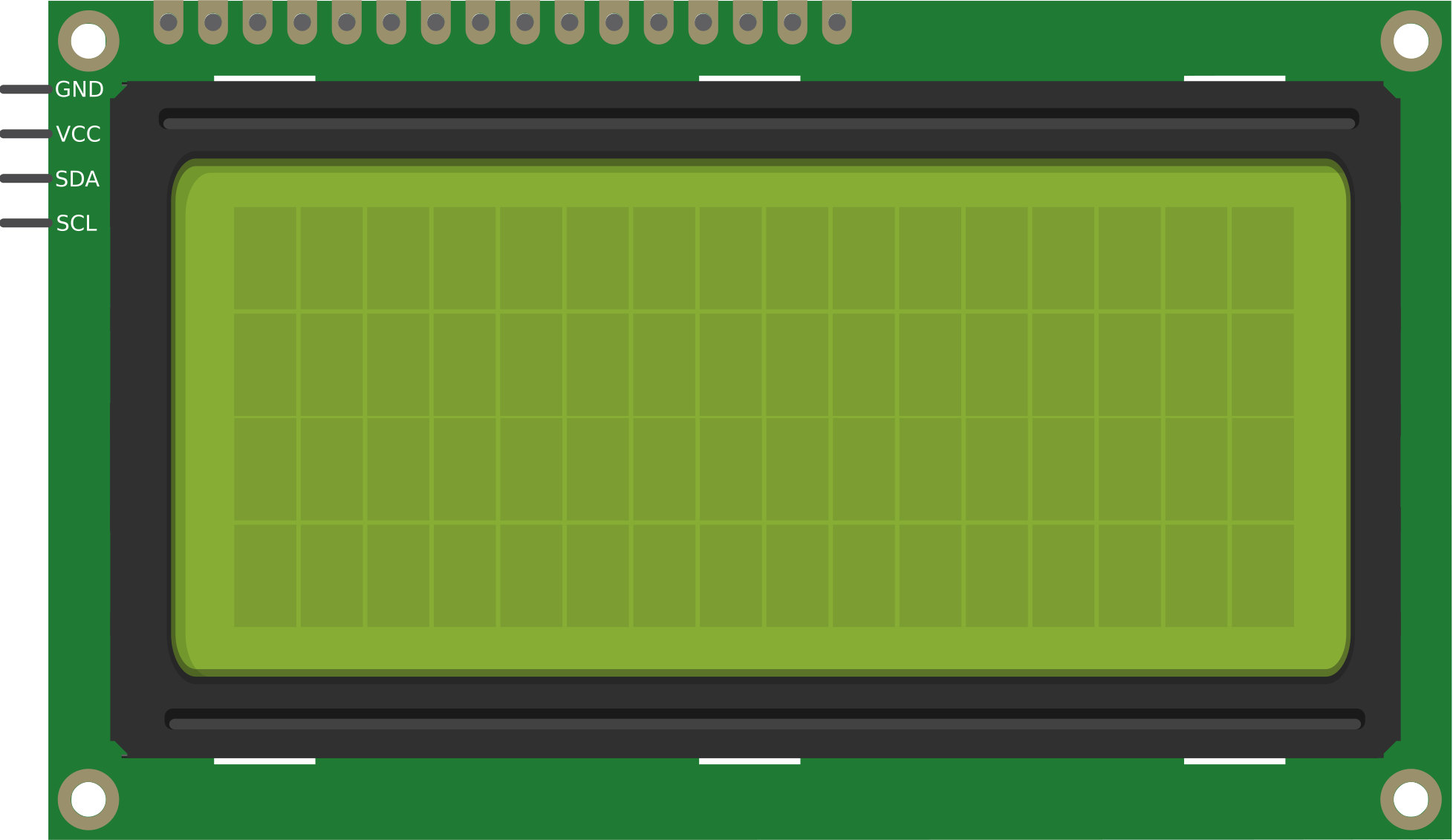

Image of LCD 20X4
Cirkit Designer LogoDesign with LCD 20X4 in Cirkit Designer

Introduction

The LCD 20X4 is a 20-character by 4-line Liquid Crystal Display (LCD) module designed for use in embedded systems and microcontroller projects. Manufactured by Arduino with the part ID "UNO," this display is ideal for presenting text, numbers, and simple symbols in a clear and organized manner. Its compact design and ease of integration make it a popular choice for hobbyists and professionals alike.

Explore Projects Built with LCD 20X4

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO I2C 20x4 LCD Display Project
Image of sample: A project utilizing LCD 20X4 in a practical application
This circuit consists of an Arduino UNO microcontroller connected to a 20x4 I2C LCD display. The Arduino provides power and communicates with the LCD via I2C protocol to display static text messages across its four rows.
Cirkit Designer LogoOpen Project in Cirkit Designer
I2C LCD Display Module with Power Supply Interface
Image of J8 +j22 lcd closeup: A project utilizing LCD 20X4 in a practical application
This circuit interfaces a 20x4 I2C LCD display with a power source and an I2C communication bus. The LCD is powered by a 4.2V supply from a connector and communicates via I2C through another connector, which provides the SCL and SDA lines as well as ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano and I2C LCD Display Power Supply Project
Image of lcd display: A project utilizing LCD 20X4 in a practical application
This circuit features an Arduino Nano microcontroller interfaced with a 20x4 I2C LCD panel for display purposes. The LCD panel is powered by a 5V AC-DC power supply unit, and the Arduino Nano communicates with the LCD via I2C protocol using its A5 (SDA) and A1 (SCL) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Controlled I2C LCD Display
Image of LCD_I2C: A project utilizing LCD 20X4 in a practical application
This circuit connects an ESP32 microcontroller to a 20x4 LCD display with an I2C interface. The ESP32 powers the LCD and communicates with it using the I2C protocol, with D21 and D22 pins serving as the data (SDA) and clock (SCL) lines, respectively. The circuit is designed to display information or user interface elements controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with LCD 20X4

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of sample: A project utilizing LCD 20X4 in a practical application
Arduino UNO I2C 20x4 LCD Display Project
This circuit consists of an Arduino UNO microcontroller connected to a 20x4 I2C LCD display. The Arduino provides power and communicates with the LCD via I2C protocol to display static text messages across its four rows.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of J8 +j22 lcd closeup: A project utilizing LCD 20X4 in a practical application
I2C LCD Display Module with Power Supply Interface
This circuit interfaces a 20x4 I2C LCD display with a power source and an I2C communication bus. The LCD is powered by a 4.2V supply from a connector and communicates via I2C through another connector, which provides the SCL and SDA lines as well as ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of lcd display: A project utilizing LCD 20X4 in a practical application
Arduino Nano and I2C LCD Display Power Supply Project
This circuit features an Arduino Nano microcontroller interfaced with a 20x4 I2C LCD panel for display purposes. The LCD panel is powered by a 5V AC-DC power supply unit, and the Arduino Nano communicates with the LCD via I2C protocol using its A5 (SDA) and A1 (SCL) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of LCD_I2C: A project utilizing LCD 20X4 in a practical application
ESP32-Controlled I2C LCD Display
This circuit connects an ESP32 microcontroller to a 20x4 LCD display with an I2C interface. The ESP32 powers the LCD and communicates with it using the I2C protocol, with D21 and D22 pins serving as the data (SDA) and clock (SCL) lines, respectively. The circuit is designed to display information or user interface elements controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Displaying sensor data in real-time
  • User interfaces for embedded systems
  • Menu-driven applications
  • Status monitoring in industrial systems
  • Educational and prototyping projects

Technical Specifications

The LCD 20X4 module is based on the HD44780 controller, which is widely supported by microcontroller platforms, including Arduino. Below are the key technical details:

Parameter Specification
Display Type 20 characters x 4 lines
Controller HD44780
Operating Voltage 4.7V to 5.3V
Operating Current 1.5mA (without backlight)
Backlight Voltage 4.2V to 4.6V
Backlight Current 120mA (typical)
Character Size 2.95mm x 4.75mm
Communication Interface Parallel (4-bit or 8-bit mode)
Operating Temperature -20°C to 70°C
Dimensions 98mm x 60mm x 12mm

Pin Configuration and Descriptions

The LCD 20X4 module has 16 pins, as described in the table below:

Pin Number Pin Name Description
1 VSS Ground (0V)
2 VDD Power supply (4.7V to 5.3V)
3 VO Contrast adjustment (connect to a potentiometer)
4 RS Register Select (0: Command, 1: Data)
5 RW Read/Write (0: Write, 1: Read)
6 E Enable signal (triggers data read/write)
7 D0 Data bit 0 (used in 8-bit mode only)
8 D1 Data bit 1 (used in 8-bit mode only)
9 D2 Data bit 2 (used in 8-bit mode only)
10 D3 Data bit 3 (used in 8-bit mode only)
11 D4 Data bit 4
12 D5 Data bit 5
13 D6 Data bit 6
14 D7 Data bit 7
15 A (LED+) Backlight anode (connect to 5V via a resistor)
16 K (LED-) Backlight cathode (connect to ground)

Usage Instructions

How to Use the LCD 20X4 in a Circuit

  1. Power Connections: Connect VSS to ground and VDD to a 5V power supply.
  2. Contrast Adjustment: Connect VO to the wiper of a 10kΩ potentiometer. Connect one end of the potentiometer to ground and the other to 5V. Adjust the potentiometer to set the display contrast.
  3. Data Connections: Use either 4-bit or 8-bit mode for communication:
    • For 4-bit mode, connect D4 to D7 to the microcontroller and leave D0 to D3 unconnected.
    • For 8-bit mode, connect all data pins (D0 to D7) to the microcontroller.
  4. Control Pins: Connect RS, RW, and E to the microcontroller. For write-only operation, connect RW to ground.
  5. Backlight: Connect A (LED+) to 5V through a current-limiting resistor (e.g., 220Ω) and K (LED-) to ground.

Arduino UNO Example Code

Below is an example of how to use the LCD 20X4 with an Arduino UNO in 4-bit mode:

#include <LiquidCrystal.h>

// Initialize the library with the pins connected to the LCD
// RS, E, D4, D5, D6, D7
LiquidCrystal lcd(7, 8, 9, 10, 11, 12);

void setup() {
  // Set up the LCD's number of columns and rows
  lcd.begin(20, 4);

  // Print a message to the LCD
  lcd.setCursor(0, 0); // Set cursor to column 0, row 0
  lcd.print("Hello, World!");

  lcd.setCursor(0, 1); // Set cursor to column 0, row 1
  lcd.print("LCD 20x4 Demo");

  lcd.setCursor(0, 2); // Set cursor to column 0, row 2
  lcd.print("Line 3 Example");

  lcd.setCursor(0, 3); // Set cursor to column 0, row 3
  lcd.print("Line 4 Example");
}

void loop() {
  // No actions in the loop
}

Important Considerations and Best Practices

  • Contrast Adjustment: Ensure the contrast is properly set using the potentiometer. If the text is not visible, adjust the potentiometer until the characters appear clearly.
  • Backlight Resistor: Always use a current-limiting resistor for the backlight to prevent damage.
  • 4-bit vs. 8-bit Mode: Use 4-bit mode to save microcontroller pins unless 8-bit mode is specifically required.
  • Power Supply: Ensure a stable 5V power supply to avoid flickering or malfunctioning of the display.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Display on the Screen:

    • Check the power connections (VSS and VDD).
    • Verify the contrast adjustment using the potentiometer.
    • Ensure the backlight is connected properly.
  2. Garbled or Incorrect Characters:

    • Verify the data connections (D4 to D7 in 4-bit mode or D0 to D7 in 8-bit mode).
    • Ensure the RS, RW, and E pins are correctly connected and controlled in the code.
  3. Backlight Not Working:

    • Check the connections to A (LED+) and K (LED-).
    • Ensure the current-limiting resistor is of the correct value.
  4. Text Not Updating:

    • Verify the lcd.print() and lcd.setCursor() commands in the code.
    • Ensure the lcd.begin() function is called in the setup() function.

FAQs

Q: Can I use the LCD 20X4 with a 3.3V microcontroller?
A: The LCD 20X4 is designed for 5V operation. To use it with a 3.3V microcontroller, you will need a level shifter or a 5V-tolerant microcontroller.

Q: How do I clear the display?
A: Use the lcd.clear() function in your Arduino code to clear the screen.

Q: Can I display custom characters?
A: Yes, the HD44780 controller supports custom characters. Use the lcd.createChar() function to define and display custom characters.

Q: Is the LCD 20X4 compatible with I2C modules?
A: Yes, you can use an I2C backpack module to simplify wiring and reduce the number of pins required.
