How to Use ESP32 Dev: Examples, Pinouts, and Specs

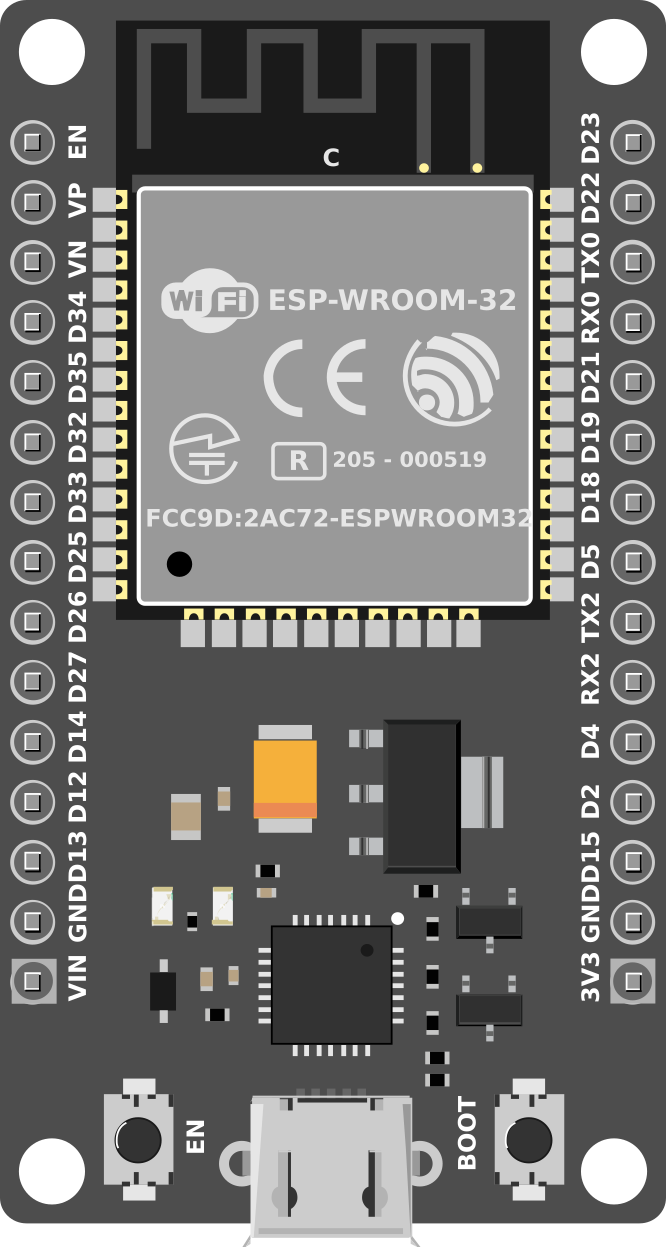

Image of ESP32 Dev
Cirkit Designer LogoDesign with ESP32 Dev in Cirkit Designer

Introduction

The ESP32 Dev is a versatile microcontroller board designed for a wide range of applications, particularly in the fields of IoT (Internet of Things) and embedded systems. It features built-in Wi-Fi and Bluetooth capabilities, making it an excellent choice for wireless communication projects. The board includes multiple GPIO pins, ADCs (Analog-to-Digital Converters), and supports various programming environments such as Arduino IDE, MicroPython, and ESP-IDF. Its flexibility and robust feature set make it suitable for both beginners and advanced developers.

Explore Projects Built with ESP32 Dev

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor
Image of gps projekt circuit: A project utilizing ESP32 Dev in a practical application
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Monitoring System with Water Flow Sensing
Image of Water: A project utilizing ESP32 Dev in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to a DHT22 temperature and humidity sensor and a water flow sensor. The ESP32 reads environmental data from the DHT22 via a digital input pin (D33) and monitors water flow through the water flow sensor connected to another digital input pin (D23). The ESP32 is powered through its VIN pin, and both sensors are powered by the ESP32's 3V3 output, with common ground connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Weather and Health Monitoring System with Wi-Fi Connectivity
Image of Health Monitoring System: A project utilizing ESP32 Dev in a practical application
This circuit uses an ESP32 Devkit V1 microcontroller to interface with multiple sensors, including a DHT11 temperature and humidity sensor, a DS18B20 temperature sensor, and a MAX30102 pulse oximeter and heart-rate sensor. The ESP32 reads data from these sensors and can process or transmit the information for further use.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Monitoring and Alert System with Solar Charging
Image of mark: A project utilizing ESP32 Dev in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to various sensors and modules for monitoring and communication purposes. It includes an MQ-2 gas sensor and a DHT11 temperature and humidity sensor, both interfaced with the ESP32 for environmental data collection. The circuit is powered by a 12V battery, regulated to 5V by step-down converters, and includes a solar charge controller connected to a solar panel for battery charging, a UPS module for power management, and a SIM900A module for GSM communication. Additionally, there is a WS2812 RGB LED strip for visual feedback and a piezo buzzer for audio alerts, both controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP32 Dev

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of gps projekt circuit: A project utilizing ESP32 Dev in a practical application
ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Water: A project utilizing ESP32 Dev in a practical application
ESP32-Based Environmental Monitoring System with Water Flow Sensing
This circuit features an ESP32 Devkit V1 microcontroller connected to a DHT22 temperature and humidity sensor and a water flow sensor. The ESP32 reads environmental data from the DHT22 via a digital input pin (D33) and monitors water flow through the water flow sensor connected to another digital input pin (D23). The ESP32 is powered through its VIN pin, and both sensors are powered by the ESP32's 3V3 output, with common ground connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Health Monitoring System: A project utilizing ESP32 Dev in a practical application
ESP32-Based Smart Weather and Health Monitoring System with Wi-Fi Connectivity
This circuit uses an ESP32 Devkit V1 microcontroller to interface with multiple sensors, including a DHT11 temperature and humidity sensor, a DS18B20 temperature sensor, and a MAX30102 pulse oximeter and heart-rate sensor. The ESP32 reads data from these sensors and can process or transmit the information for further use.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of mark: A project utilizing ESP32 Dev in a practical application
ESP32-Based Environmental Monitoring and Alert System with Solar Charging
This circuit features an ESP32 Devkit V1 microcontroller connected to various sensors and modules for monitoring and communication purposes. It includes an MQ-2 gas sensor and a DHT11 temperature and humidity sensor, both interfaced with the ESP32 for environmental data collection. The circuit is powered by a 12V battery, regulated to 5V by step-down converters, and includes a solar charge controller connected to a solar panel for battery charging, a UPS module for power management, and a SIM900A module for GSM communication. Additionally, there is a WS2812 RGB LED strip for visual feedback and a piezo buzzer for audio alerts, both controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices and smart home automation
  • Wireless sensor networks
  • Wearable technology
  • Robotics and automation systems
  • Data logging and remote monitoring
  • Prototyping and educational projects

Technical Specifications

Below are the key technical details of the ESP32 Dev board:

Specification Details
Microcontroller Tensilica Xtensa LX6 dual-core processor
Clock Speed Up to 240 MHz
Flash Memory 4 MB (varies by model)
SRAM 520 KB
Wi-Fi 802.11 b/g/n
Bluetooth Bluetooth 4.2 and BLE (Bluetooth Low Energy)
Operating Voltage 3.3V
Input Voltage 5V (via USB) or 7-12V (via VIN pin)
GPIO Pins 30+ (varies by board version)
ADC Channels Up to 18 channels (12-bit resolution)
DAC Channels 2 channels (8-bit resolution)
Communication Interfaces UART, SPI, I2C, I2S, CAN, PWM
Power Consumption Ultra-low power consumption in deep sleep mode (as low as 10 µA)
Dimensions Typically 25.4mm x 50.8mm (varies by manufacturer)

Pin Configuration and Descriptions

The ESP32 Dev board has a variety of pins for different functionalities. Below is a general pinout description:

Pin Function
VIN Input voltage (7-12V)
GND Ground
3V3 3.3V output
GPIO0-GPIO39 General-purpose input/output pins
ADC1/ADC2 Analog-to-digital converter channels
DAC1/DAC2 Digital-to-analog converter channels
TX/RX UART communication pins
SCL/SDA I2C communication pins
MOSI/MISO/SCK SPI communication pins
EN Enable pin (used to reset the board)
BOOT Boot mode selection pin (used for flashing firmware)

Note: The exact pinout may vary depending on the specific ESP32 Dev board model. Always refer to the datasheet or schematic provided by the manufacturer.

Usage Instructions

How to Use the ESP32 Dev in a Circuit

  1. Powering the Board:

    • Connect the board to your computer via a micro-USB cable for power and programming.
    • Alternatively, supply 7-12V to the VIN pin or 3.3V to the 3V3 pin.
  2. Programming the Board:

    • Install the Arduino IDE or another supported environment (e.g., MicroPython or ESP-IDF).
    • Add the ESP32 board support package to your IDE.
    • Select the correct board and port in the IDE settings.
  3. Connecting Peripherals:

    • Use GPIO pins for digital input/output.
    • Connect sensors to ADC pins for analog input.
    • Use communication interfaces (UART, SPI, I2C) for external modules.
  4. Uploading Code:

    • Write your code in the IDE and upload it to the board.
    • Press the BOOT button if required during the upload process.

Important Considerations and Best Practices

  • Voltage Levels: Ensure all connected peripherals operate at 3.3V logic levels to avoid damaging the board.
  • Deep Sleep Mode: Use deep sleep mode for battery-powered applications to minimize power consumption.
  • Pin Multiplexing: Some pins have multiple functions (e.g., ADC, DAC, PWM). Check the datasheet to avoid conflicts.
  • Wi-Fi and Bluetooth: Avoid using GPIO pins 1, 3, 6-11 for general I/O, as they are used internally for flash and communication.

Example Code for Arduino IDE

Below is an example of how to blink an LED connected to GPIO2:

// Define the GPIO pin for the LED
const int ledPin = 2;

void setup() {
  // Set the LED pin as an output
  pinMode(ledPin, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(ledPin, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(ledPin, LOW);
  delay(1000); // Wait for 1 second
}

Tip: GPIO2 is commonly used for onboard LEDs on many ESP32 Dev boards. Check your board's documentation to confirm.

Troubleshooting and FAQs

Common Issues and Solutions

  1. Problem: The board is not detected by the computer.
    Solution:

    • Ensure the USB cable is functional and supports data transfer.
    • Install the correct USB-to-serial driver (e.g., CP2102 or CH340).
  2. Problem: Code upload fails with a timeout error.
    Solution:

    • Press and hold the BOOT button while uploading the code.
    • Check that the correct board and port are selected in the IDE.
  3. Problem: Wi-Fi connection is unstable.
    Solution:

    • Ensure the Wi-Fi signal strength is adequate.
    • Avoid using GPIO pins 1, 3, 6-11 for other purposes, as they may interfere with Wi-Fi.
  4. Problem: The board overheats during operation.
    Solution:

    • Verify that the input voltage does not exceed the recommended range.
    • Avoid drawing excessive current from the GPIO pins.

FAQs

  • Q: Can I power the ESP32 Dev board with a battery?
    A: Yes, you can use a LiPo battery connected to the VIN pin or a 3.3V source connected to the 3V3 pin.

  • Q: What is the maximum current output of the GPIO pins?
    A: Each GPIO pin can source or sink up to 12 mA. However, it is recommended to stay below this limit for prolonged use.

  • Q: Can I use the ESP32 Dev board with MicroPython?
    A: Yes, the ESP32 supports MicroPython. You need to flash the MicroPython firmware to the board before use.

  • Q: How do I reset the board?
    A: Press the EN (Enable) button to reset the board.

By following this documentation, you can effectively utilize the ESP32 Dev board for your projects.
