How to Use A2212 motor 930KV: Examples, Pinouts, and Specs

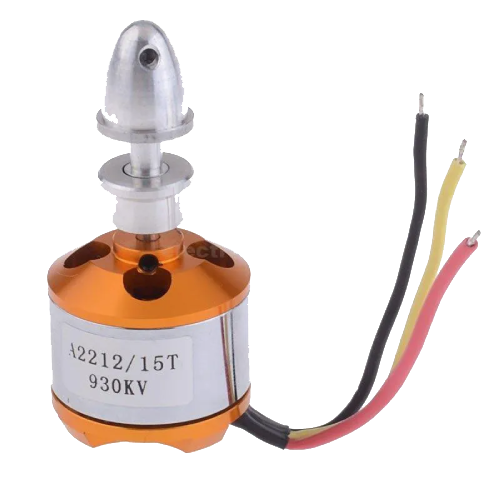

The A2212 Motor 930KV is a brushless DC motor designed for high-performance applications such as drones, RC vehicles, and other remote-controlled devices. Its 930KV rating signifies that the motor will spin at 930 revolutions per minute (RPM) for every volt applied, making it ideal for applications requiring high efficiency and a superior power-to-weight ratio. This motor is widely used due to its reliability, lightweight design, and ability to deliver consistent performance under demanding conditions.

• Quadcopters, hexacopters, and other drones
• Remote-controlled cars, boats, and airplanes
• DIY robotics projects
• Educational and hobbyist electronics

The A2212 Motor 930KV has three wires for connection, as it is a three-phase brushless motor. These wires are typically color-coded for easy identification.

Note: The wire colors may vary depending on the manufacturer. Always refer to the specific motor's datasheet or test the connections to ensure proper operation.

1. Connect to an ESC (Electronic Speed Controller):

   • The A2212 Motor 930KV requires an ESC to control its speed and direction. Connect the motor's three wires (Phase A, B, and C) to the corresponding output terminals of the ESC.
   • The ESC should be compatible with the motor's voltage and current ratings.

2. Power Supply:

   • Use a 2S (7.4V) or 3S (11.1V) LiPo battery to power the ESC. Ensure the battery's discharge rate (C-rating) can handle the motor's current draw.

3. Control Signal:

   • The ESC receives a PWM signal from a microcontroller (e.g., Arduino) or a remote receiver to control the motor's speed.

4. Mounting:

   • Secure the motor to your drone or RC vehicle using the provided mounting holes. Ensure proper alignment to avoid vibrations.

5. Propeller Installation:

   • Attach a compatible propeller to the motor shaft. Tighten the propeller securely but avoid over-tightening, which could damage the shaft.

• Cooling: Ensure adequate airflow around the motor to prevent overheating during operation.
• ESC Calibration: Calibrate the ESC before use to ensure smooth and accurate motor control.
• Propeller Selection: Use a propeller size recommended for the motor's KV rating and power output to avoid overloading the motor.
• Wiring: Double-check all connections to avoid short circuits or incorrect wiring.
• Testing: Test the motor at low speeds before full operation to verify proper functionality.

Below is an example of how to control the A2212 Motor 930KV using an Arduino UNO and a compatible ESC.

#include <Servo.h> // Include the Servo library to control the ESC

Servo esc; // Create a Servo object to represent the ESC

void setup() {
  esc.attach(9); // Connect the ESC signal wire to Arduino pin 9
  esc.writeMicroseconds(1000); // Send minimum throttle signal to arm the ESC
  delay(2000); // Wait for 2 seconds to allow the ESC to initialize
}

void loop() {
  esc.writeMicroseconds(1500); // Set throttle to 50% (1500 µs)
  delay(5000); // Run the motor at 50% throttle for 5 seconds

  esc.writeMicroseconds(1000); // Set throttle to 0% (1000 µs)
  delay(5000); // Stop the motor for 5 seconds
}

Note: Always remove the propeller during testing to avoid accidents.

1. Motor Does Not Spin:

   • Cause: Incorrect wiring or ESC not armed.
   • Solution: Verify the motor-to-ESC connections and ensure the ESC is properly armed.

2. Motor Spins in the Wrong Direction:

   • Cause: Incorrect phase wiring.
   • Solution: Swap any two of the motor's three wires connected to the ESC to reverse the direction.

3. Motor Overheats:

   • Cause: Overloading or insufficient cooling.
   • Solution: Use a smaller propeller or improve airflow around the motor.

4. Vibrations During Operation:

   • Cause: Misaligned motor or unbalanced propeller.
   • Solution: Check the motor mounting and balance the propeller.

Q1: Can I use a 4S LiPo battery with this motor?
A1: No, the A2212 Motor 930KV is designed for 2S-3S LiPo batteries. Using a 4S battery may damage the motor or ESC.

Q2: What is the maximum propeller size for this motor?
A2: The recommended propeller size is 10x4.5 or smaller. Larger propellers may overload the motor.

Q3: How do I know if the motor is overloaded?
A3: If the motor becomes excessively hot or the ESC shuts down, it may indicate overloading. Reduce the propeller size or throttle.

Q4: Can I use this motor for a fixed-wing RC airplane?
A4: Yes, the A2212 Motor 930KV is suitable for fixed-wing RC airplanes, provided the propeller and power system are appropriately matched.

By following this documentation, you can effectively integrate and operate the A2212 Motor 930KV in your projects.
