How to Use LCD I2C: Examples, Pinouts, and Specs

Introduction

The LCD I2C is a Liquid Crystal Display module that utilizes the I2C (Inter-Integrated Circuit) protocol for communication. This module simplifies the process of connecting and controlling an LCD with microcontrollers by reducing the number of pins required. Instead of using multiple data and control pins, the I2C interface requires only two pins: SDA (data line) and SCL (clock line). This makes it an excellent choice for projects with limited GPIO availability.

Explore Projects Built with LCD I2C

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

I2C LCD Display Module with Power Supply Interface

This circuit interfaces a 20x4 I2C LCD display with a power source and an I2C communication bus. The LCD is powered by a 4.2V supply from a connector and communicates via I2C through another connector, which provides the SCL and SDA lines as well as ground.

Open Project in Cirkit Designer

ESP32 and I2C LCD Display for Data Visualization

This circuit consists of an ESP32 Devkit V1 microcontroller connected to a 20x4 I2C LCD display. The ESP32 controls the LCD via I2C communication, with the SCL and SDA lines connected to GPIO pins D22 and D21, respectively, and provides power and ground connections to the display.

Open Project in Cirkit Designer

A-Star 32U4 Mini and I2C LCD Screen Battery-Powered Display

This circuit features an A-Star 32U4 Mini microcontroller connected to a 16x2 I2C LCD screen. The microcontroller provides power and ground to the LCD, and communicates with it via the I2C protocol using the A4 (SDA) and A5 (SCL) pins.

Open Project in Cirkit Designer

ESP32-Controlled I2C LCD Display

This circuit connects an ESP32 microcontroller to an I2C LCD 16x2 display. The ESP32 powers the LCD and communicates with it via the I2C protocol using its SDA and SCL lines connected to the corresponding pins on the LCD. The embedded code on the ESP32 is programmed to display messages on the LCD screen in a loop, which can be used for user interface or status display purposes.

Open Project in Cirkit Designer

Common Applications and Use Cases

• Displaying text, numbers, or custom characters in embedded systems
• User interfaces for IoT devices
• Real-time data monitoring (e.g., temperature, humidity, or sensor readings)
• Educational and prototyping projects with microcontrollers like Arduino or Raspberry Pi

Technical Specifications

Key Technical Details

• Display Type: 16x2 or 20x4 character LCD
• Communication Protocol: I2C
• Operating Voltage: 5V (typical)
• Backlight: LED with adjustable brightness
• I2C Address: Typically 0x27 or 0x3F (configurable via solder jumpers)
• Current Consumption: ~20mA (with backlight on)
• Contrast Adjustment: Potentiometer on the I2C backpack

Pin Configuration and Descriptions

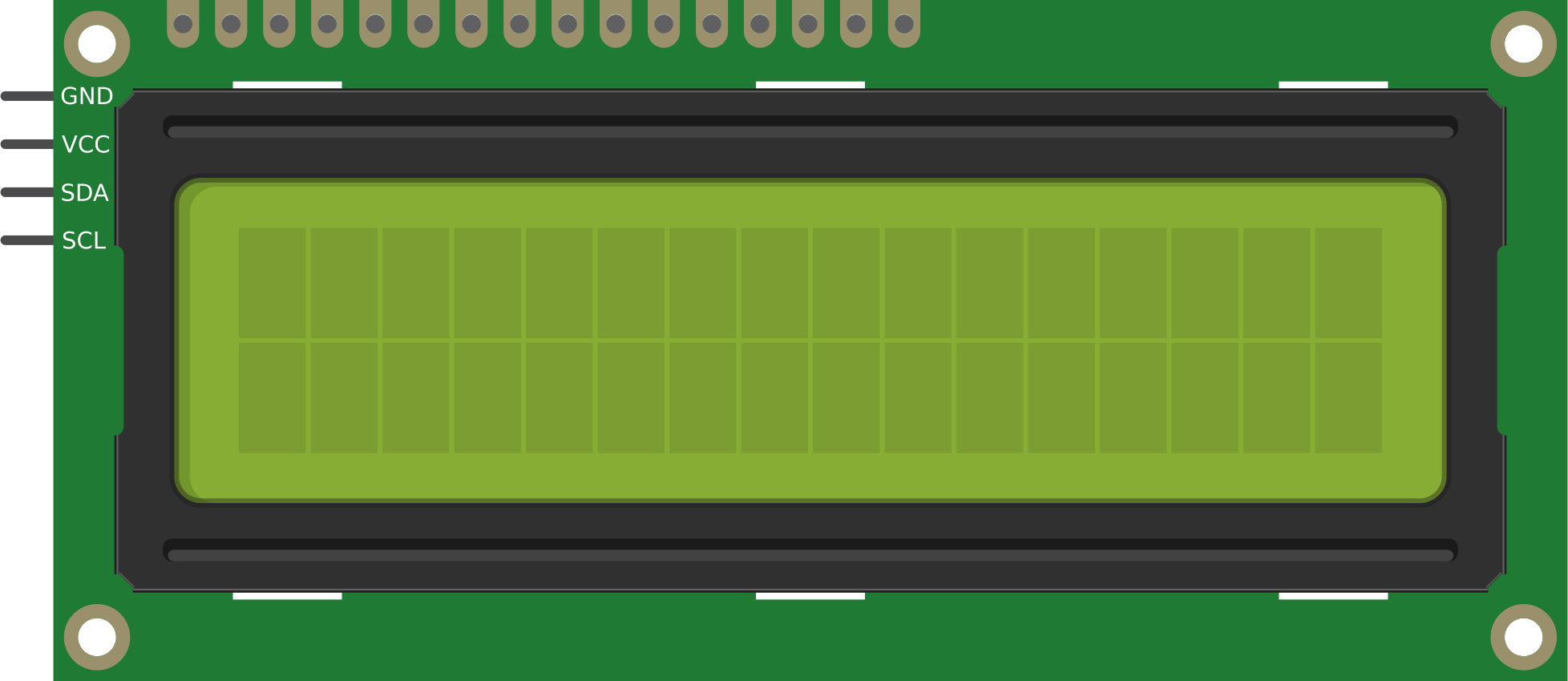

The LCD I2C module has a 4-pin header for connection to a microcontroller. The pinout is as follows:

Usage Instructions

How to Use the LCD I2C in a Circuit

1. Connect the Pins:

   • Connect the GND pin of the LCD I2C module to the ground of your microcontroller.
   • Connect the VCC pin to a 5V power supply.
   • Connect the SDA pin to the SDA pin of your microcontroller.
   • Connect the SCL pin to the SCL pin of your microcontroller.

2. Install Required Libraries:

   • For Arduino, install the LiquidCrystal_I2C library. This can be done via the Arduino IDE Library Manager:
     • Go to Sketch > Include Library > Manage Libraries.
     • Search for LiquidCrystal_I2C and install it.

3. Write and Upload Code:

   • Use the example code below to initialize and display text on the LCD.

Example Code for Arduino UNO

#include <Wire.h>
#include <LiquidCrystal_I2C.h>

// Initialize the LCD with I2C address 0x27 and a 16x2 display size
LiquidCrystal_I2C lcd(0x27, 16, 2);

void setup() {
  lcd.begin(); // Initialize the LCD
  lcd.backlight(); // Turn on the backlight

  // Display a message on the LCD
  lcd.setCursor(0, 0); // Set cursor to the first row, first column
  lcd.print("Hello, World!"); // Print text on the first row

  lcd.setCursor(0, 1); // Set cursor to the second row, first column
  lcd.print("LCD I2C Demo"); // Print text on the second row
}

void loop() {
  // No actions in the loop for this example
}

Important Considerations and Best Practices

• I2C Address: Ensure the I2C address of your LCD matches the one in your code. If unsure, use an I2C scanner sketch to detect the address.
• Power Supply: Use a stable 5V power source to avoid flickering or malfunctioning of the display.
• Contrast Adjustment: Use the potentiometer on the I2C backpack to adjust the contrast for optimal visibility.
• Pull-Up Resistors: Some I2C modules include built-in pull-up resistors. If not, you may need to add external pull-up resistors (typically 4.7kΩ) on the SDA and SCL lines.

Troubleshooting and FAQs

Common Issues and Solutions

1. LCD Not Displaying Anything:

   • Verify the wiring connections (GND, VCC, SDA, SCL).
   • Check the I2C address in your code. Use an I2C scanner sketch to confirm the address.
   • Adjust the contrast potentiometer on the I2C backpack.

2. Flickering or Unstable Display:

   • Ensure a stable 5V power supply.
   • Check for loose connections or faulty jumper wires.

3. Backlight Not Turning On:

   • Confirm that the lcd.backlight() function is called in your code.
   • Check the solder joints on the I2C backpack for any issues.

4. Text Not Displaying Correctly:

   • Ensure the correct display size (e.g., 16x2 or 20x4) is specified in the LiquidCrystal_I2C initialization.
   • Verify that the SDA and SCL lines are not swapped.

FAQs

Q: How do I find the I2C address of my LCD module?
A: Use an I2C scanner sketch to detect the address. Upload the sketch to your microcontroller, and it will print the detected address in the Serial Monitor.

Q: Can I use the LCD I2C with a 3.3V microcontroller?
A: Yes, but ensure the module is compatible with 3.3V logic levels or use a level shifter.

Q: Can I connect multiple I2C devices to the same SDA and SCL lines?
A: Yes, as long as each device has a unique I2C address. Check for address conflicts and resolve them if necessary.

Q: How do I display custom characters on the LCD?
A: Use the createChar() function in the LiquidCrystal_I2C library to define and display custom characters.

By following this documentation, you can effectively integrate and troubleshoot the LCD I2C module in your projects.
