How to Use buck converter: Examples, Pinouts, and Specs

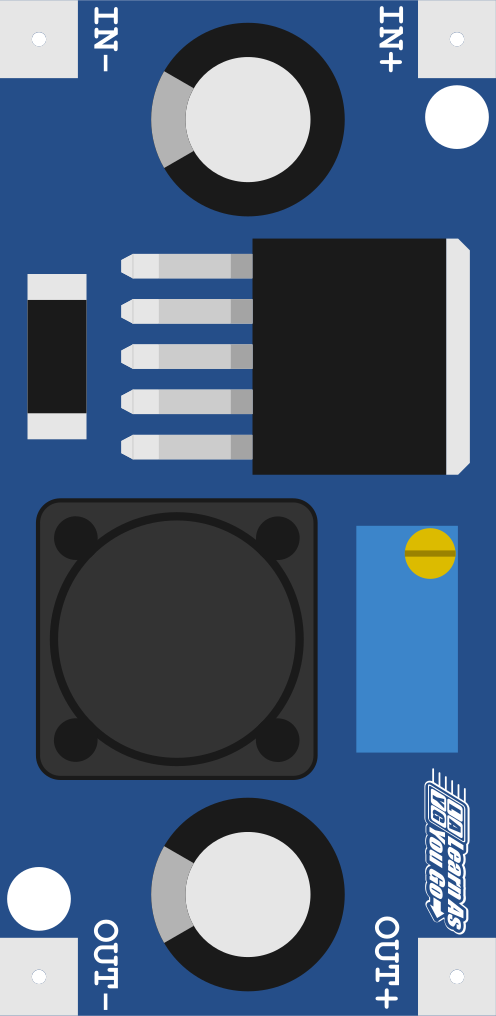

Image of buck converter
Cirkit Designer LogoDesign with buck converter in Cirkit Designer

Introduction

A buck converter is a DC-DC power converter designed to step down voltage while stepping up current. It achieves this by using a combination of a switching element (such as a transistor), a diode, an inductor, and a capacitor. Buck converters are highly efficient and are widely used in applications where a stable, lower voltage is required from a higher voltage source.

Explore Projects Built with buck converter

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Multi-Stage Voltage Regulation and Indicator LED Circuit
Image of Subramanyak_Power_Circuit: A project utilizing buck converter in a practical application
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Dual Motor Control Circuit with Directional Switching and Voltage Regulation
Image of Pencuci Kipas: A project utilizing buck converter in a practical application
This circuit features a 12V battery connected through a rocker switch to two buck converters, one of which steps down the voltage to power two DC mini metal gear motors, and the other is connected to a directional switch that controls a third DC mini metal gear motor. The XL4015 5A DC Buck Step-down converter's output is connected to two motors, allowing them to run at a reduced voltage, while the other buck converter's output is routed through a directional switch to control the direction of the third motor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered DC Generator with XL4015 Buck Converter
Image of conveyor: A project utilizing buck converter in a practical application
This circuit consists of a 12V battery connected to a rocker switch, which controls the input to an XL4015 DC Buck Step-down converter. The converter steps down the voltage to power a DC generator, with the generator's output connected back to the converter to form a feedback loop.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered UPS with Step-Down Buck Converter and BMS
Image of Mini ups: A project utilizing buck converter in a practical application
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with buck converter

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Subramanyak_Power_Circuit: A project utilizing buck converter in a practical application
Multi-Stage Voltage Regulation and Indicator LED Circuit
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Pencuci Kipas: A project utilizing buck converter in a practical application
Dual Motor Control Circuit with Directional Switching and Voltage Regulation
This circuit features a 12V battery connected through a rocker switch to two buck converters, one of which steps down the voltage to power two DC mini metal gear motors, and the other is connected to a directional switch that controls a third DC mini metal gear motor. The XL4015 5A DC Buck Step-down converter's output is connected to two motors, allowing them to run at a reduced voltage, while the other buck converter's output is routed through a directional switch to control the direction of the third motor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of conveyor: A project utilizing buck converter in a practical application
Battery-Powered DC Generator with XL4015 Buck Converter
This circuit consists of a 12V battery connected to a rocker switch, which controls the input to an XL4015 DC Buck Step-down converter. The converter steps down the voltage to power a DC generator, with the generator's output connected back to the converter to form a feedback loop.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Mini ups: A project utilizing buck converter in a practical application
Battery-Powered UPS with Step-Down Buck Converter and BMS
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Powering microcontrollers and low-voltage devices from higher voltage sources
  • Battery-powered systems to regulate voltage levels
  • Voltage regulation in renewable energy systems (e.g., solar panels)
  • Automotive electronics for stepping down 12V to lower voltages
  • LED drivers and portable electronic devices

Technical Specifications

Below are the general technical specifications for a typical buck converter. Note that actual values may vary depending on the specific model or design.

Parameter Typical Range
Input Voltage Range 4.5V to 40V
Output Voltage Range 0.8V to 36V
Output Current Up to 10A (depending on the model)
Efficiency 85% to 95%
Switching Frequency 100 kHz to 1 MHz
Operating Temperature -40°C to +125°C

Pin Configuration and Descriptions

The pin configuration of a buck converter module (e.g., LM2596-based module) is as follows:

Pin Name Description
VIN Input voltage pin. Connect the higher voltage source here.
GND Ground pin. Connect to the ground of the circuit.
VOUT Output voltage pin. Provides the stepped-down voltage.
EN (optional) Enable pin. Used to turn the converter on/off (active high).
FB (optional) Feedback pin. Used for voltage regulation by connecting to a resistor divider.

Usage Instructions

How to Use the Buck Converter in a Circuit

  1. Connect the Input Voltage (VIN):

    • Connect the positive terminal of the input voltage source to the VIN pin.
    • Connect the negative terminal of the input voltage source to the GND pin.
  2. Set the Output Voltage (if adjustable):

    • If the buck converter has an adjustable output, use the onboard potentiometer to set the desired output voltage.
    • Measure the output voltage using a multimeter while adjusting the potentiometer.
  3. Connect the Load:

    • Connect the positive terminal of the load to the VOUT pin.
    • Connect the negative terminal of the load to the GND pin.
  4. Enable the Converter (if applicable):

    • If the module has an EN (enable) pin, ensure it is connected to a HIGH signal or left floating (depending on the module design).

Important Considerations and Best Practices

  • Input Voltage Range: Ensure the input voltage is within the specified range of the buck converter to avoid damage.
  • Output Current Limit: Do not exceed the maximum output current rating of the converter.
  • Heat Dissipation: For high-power applications, use a heatsink or active cooling to prevent overheating.
  • Inductor Selection: If designing a custom buck converter, choose an inductor with appropriate current ratings and low resistance.
  • Capacitor Selection: Use low-ESR capacitors for better performance and reduced ripple.

Example: Using a Buck Converter with Arduino UNO

Below is an example of using a buck converter to power an Arduino UNO from a 12V source:

  1. Connect the 12V source to the VIN and GND pins of the buck converter.
  2. Adjust the output voltage of the buck converter to 5V using the potentiometer.
  3. Connect the VOUT pin of the buck converter to the 5V pin of the Arduino UNO.
  4. Connect the GND pin of the buck converter to the GND pin of the Arduino UNO.
// Example Arduino code to blink an LED powered by a buck converter
// Ensure the buck converter is providing 5V to the Arduino UNO

const int ledPin = 13; // Built-in LED pin on Arduino UNO

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Check the input voltage and ensure it is within the specified range.
    • Verify all connections, especially VIN, GND, and VOUT.
    • If the module has an EN pin, ensure it is enabled (HIGH).
  2. Output Voltage is Incorrect:

    • Adjust the potentiometer to set the correct output voltage.
    • Verify the feedback resistor values if using a custom design.
  3. Overheating:

    • Ensure the load current does not exceed the maximum rating.
    • Use a heatsink or active cooling for high-power applications.
  4. High Output Ripple:

    • Use low-ESR capacitors on the input and output.
    • Check the inductor value and ensure it is appropriate for the design.

FAQs

Q: Can I use a buck converter to power a 3.3V device from a 12V source?
A: Yes, as long as the buck converter supports an output voltage of 3.3V and the load current is within its capacity.

Q: What happens if I reverse the input polarity?
A: Most buck converters do not have reverse polarity protection. Reversing the input polarity can damage the module. Use a diode for protection.

Q: Can I use a buck converter for AC input?
A: No, buck converters are designed for DC input only. Use a rectifier and filter circuit to convert AC to DC before using a buck converter.

Q: How do I calculate the efficiency of a buck converter?
A: Efficiency (%) = (Output Power / Input Power) × 100. Measure the input and output voltage and current to calculate power.
