How to Use JST SM 3: Examples, Pinouts, and Specs

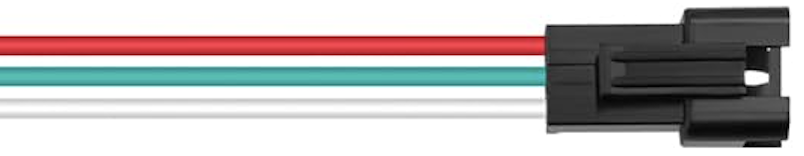

The JST SM 3 is a compact and reliable 3-pin connector manufactured by JST. It is widely used in electronic circuits for connecting wires securely, thanks to its robust locking mechanism. This connector is designed to ensure stable and durable connections, making it ideal for applications where vibration or movement might otherwise compromise the connection.

• LED strip connections
• RC vehicles and drones
• Battery packs and power distribution
• Small electronic devices and appliances
• Robotics and prototyping projects

The JST SM 3 connector is designed for ease of use and durability. Below are its key technical details:

The JST SM 3 connector consists of three pins, typically used for power, ground, and signal connections. Below is the pin configuration:

The JST SM 3 connector is straightforward to use and can be integrated into a variety of circuits. Follow the steps below to use it effectively:

1. Prepare the Wires: Strip the insulation from the ends of the wires you intend to connect. Ensure the exposed wire length matches the connector's crimp terminal specifications.
2. Crimp the Terminals: Use a crimping tool to attach the crimp terminals to the stripped wire ends. Ensure a secure and firm crimp for reliable connections.
3. Insert the Terminals: Insert the crimped terminals into the connector housing until they click into place. The locking mechanism ensures they remain secure.
4. Connect the Mating Connector: Align the male and female connectors and push them together until the locking mechanism engages.
5. Verify the Connection: Gently tug on the wires to ensure the connection is secure.

• Wire Gauge: Use wires within the specified 22-28 AWG range for optimal performance.
• Crimping Tool: Always use a compatible crimping tool to avoid damaging the terminals.
• Polarity: Double-check the pin configuration to ensure correct polarity and signal connections.
• Environmental Conditions: Avoid exposing the connector to temperatures or voltages beyond its rated limits.

The JST SM 3 connector can be used to connect peripherals like LED strips to an Arduino UNO. Below is an example of how to connect and control an LED strip:

• Pin 1 (VCC) connects to the Arduino's 5V pin.
• Pin 2 (Signal) connects to a PWM-capable pin (e.g., Pin 9).
• Pin 3 (GND) connects to the Arduino's GND pin.

// Example code to control an LED strip using a JST SM 3 connector
// Ensure the LED strip is connected to the correct pins as described above.

const int ledPin = 9; // PWM pin connected to the signal line of the JST SM 3

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  analogWrite(ledPin, 128); // Set LED brightness to 50% (128 out of 255)
  delay(1000);              // Wait for 1 second
  analogWrite(ledPin, 0);   // Turn off the LED
  delay(1000);              // Wait for 1 second
}

1. Loose Connections: If the connection is loose, check that the terminals are fully inserted into the housing and the locking mechanism is engaged.
2. Incorrect Polarity: Reversing the VCC and GND pins can damage your circuit. Always verify the pin configuration before powering the circuit.
3. Damaged Terminals: Improper crimping can damage the terminals, leading to poor connections. Use a proper crimping tool and technique.

• Issue: The connector does not lock securely.
  • Solution: Ensure the terminals are fully inserted into the housing. You should hear a click when they lock in place.
• Issue: The circuit is not functioning as expected.
  • Solution: Double-check the wiring and ensure the pin configuration matches your circuit design.
• Issue: Overheating of the connector.
  • Solution: Verify that the current and voltage do not exceed the connector's rated limits.

By following these guidelines, you can ensure reliable and efficient use of the JST SM 3 connector in your electronic projects.
