How to Use ESP32 38 PINS: Examples, Pinouts, and Specs

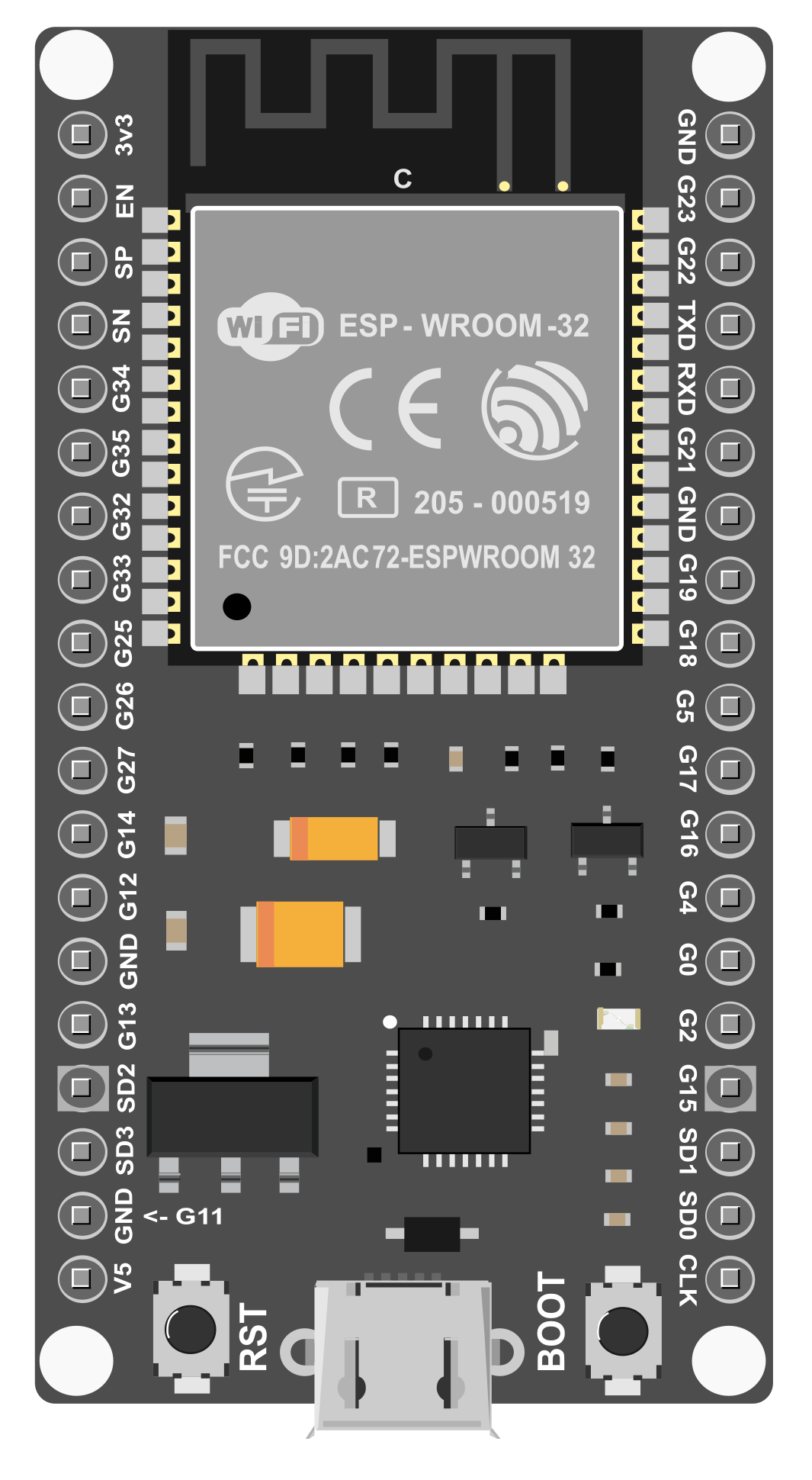

Image of ESP32 38 PINS
Cirkit Designer LogoDesign with ESP32 38 PINS in Cirkit Designer

Introduction

The ESP32 38 Pins is a powerful and versatile microcontroller designed for IoT, embedded systems, and automation projects. It features integrated Wi-Fi and Bluetooth capabilities, making it ideal for wireless communication and control. With 38 GPIO pins, the ESP32 provides extensive interfacing options for sensors, actuators, and other peripherals. Its high processing power and low energy consumption make it suitable for a wide range of applications.

Explore Projects Built with ESP32 38 PINS

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based OLED Display Interface
Image of d: A project utilizing ESP32 38 PINS in a practical application
This circuit features an ESP32 microcontroller connected to an OLED 1.3" display. The ESP32's GPIO pins 21 and 22 are used for I2C communication (SDA and SCL respectively) with the OLED display. The display is powered by the 5V output from the ESP32, and both devices share a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Wi-Fi Controlled LED System
Image of PIR Tester: A project utilizing ESP32 38 PINS in a practical application
This circuit features two ESP32 microcontrollers communicating via UART, with one controlling an LED through a resistor. The primary ESP32 (ESP32 38 PINS) handles I2C communication and processes serial input to control the LED, while the secondary ESP32 (pocket esp32-c3) sends periodic data over UART.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Controlled Multi-Display Interface with Pushbutton Interaction
Image of Info-Orbs: A project utilizing ESP32 38 PINS in a practical application
This circuit features an ESP32 microcontroller interfaced with multiple round TFT displays, controlled via shared serial communication lines, and several pushbuttons connected to individual GPIOs for input. The ESP32 coordinates the display of information and responds to user inputs from the pushbuttons.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Display with Camera and Audio Alert System
Image of cam_circuit_design: A project utilizing ESP32 38 PINS in a practical application
This circuit features two ESP32 microcontrollers, one standard 30-pin version and one ESP32-CAM module, both sharing a common ground and power supply. The 30-pin ESP32 is interfaced with an I2C LCD 16x2 Screen for display purposes, using its I2C pins (D21 for SDA and D22 for SCL), and controls a buzzer connected to pin D23. Additionally, the ESP32-CAM is connected to the 30-pin ESP32 via serial communication through pins TX2 and RX2 for potential image data transfer.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP32 38 PINS

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of d: A project utilizing ESP32 38 PINS in a practical application
ESP32-Based OLED Display Interface
This circuit features an ESP32 microcontroller connected to an OLED 1.3" display. The ESP32's GPIO pins 21 and 22 are used for I2C communication (SDA and SCL respectively) with the OLED display. The display is powered by the 5V output from the ESP32, and both devices share a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of PIR Tester: A project utilizing ESP32 38 PINS in a practical application
ESP32-Based Wi-Fi Controlled LED System
This circuit features two ESP32 microcontrollers communicating via UART, with one controlling an LED through a resistor. The primary ESP32 (ESP32 38 PINS) handles I2C communication and processes serial input to control the LED, while the secondary ESP32 (pocket esp32-c3) sends periodic data over UART.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Info-Orbs: A project utilizing ESP32 38 PINS in a practical application
ESP32-Controlled Multi-Display Interface with Pushbutton Interaction
This circuit features an ESP32 microcontroller interfaced with multiple round TFT displays, controlled via shared serial communication lines, and several pushbuttons connected to individual GPIOs for input. The ESP32 coordinates the display of information and responds to user inputs from the pushbuttons.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of cam_circuit_design: A project utilizing ESP32 38 PINS in a practical application
ESP32-Based Smart Display with Camera and Audio Alert System
This circuit features two ESP32 microcontrollers, one standard 30-pin version and one ESP32-CAM module, both sharing a common ground and power supply. The 30-pin ESP32 is interfaced with an I2C LCD 16x2 Screen for display purposes, using its I2C pins (D21 for SDA and D22 for SCL), and controls a buzzer connected to pin D23. Additionally, the ESP32-CAM is connected to the 30-pin ESP32 via serial communication through pins TX2 and RX2 for potential image data transfer.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices and smart home automation
  • Wireless sensor networks
  • Robotics and motor control
  • Data logging and monitoring systems
  • Wearable devices
  • Industrial automation

Technical Specifications

Key Technical Details

  • Microcontroller: Tensilica Xtensa LX6 dual-core processor
  • Clock Speed: Up to 240 MHz
  • Flash Memory: 4 MB (varies by model)
  • SRAM: 520 KB
  • Wi-Fi: 802.11 b/g/n
  • Bluetooth: v4.2 BR/EDR and BLE
  • Operating Voltage: 3.3V
  • GPIO Pins: 38 (multipurpose, including ADC, DAC, PWM, I2C, SPI, UART)
  • ADC Channels: 18 (12-bit resolution)
  • DAC Channels: 2
  • PWM Channels: 16
  • Power Supply: 5V via USB or 3.3V via VIN pin
  • Operating Temperature: -40°C to 125°C

Pin Configuration and Descriptions

The ESP32 38 Pins has a total of 38 GPIO pins, each with multiple functions. Below is a summary of the pin configuration:

Pin Number Pin Name Function
1 EN Enable pin (active high)
2 IO0 GPIO0, boot mode selection
3 IO1 (TX0) GPIO1, UART0 TX
4 IO3 (RX0) GPIO3, UART0 RX
5 IO4 GPIO4, PWM, ADC
6 IO5 GPIO5, PWM, ADC
7 IO12 GPIO12, ADC, touch sensor
8 IO13 GPIO13, ADC, touch sensor
9 IO14 GPIO14, PWM, ADC
10 IO15 GPIO15, PWM, ADC
... ... ... (Refer to the datasheet for full details)

Note: Some GPIO pins have specific restrictions or are used during boot. Refer to the ESP32 datasheet for detailed pin functionality.

Usage Instructions

How to Use the ESP32 38 Pins in a Circuit

  1. Powering the ESP32:

    • Connect the ESP32 to a 5V power source via the USB port or supply 3.3V to the VIN pin.
    • Ensure the power supply is stable and capable of providing at least 500 mA.
  2. Programming the ESP32:

    • Use the Arduino IDE or ESP-IDF (Espressif IoT Development Framework) to program the ESP32.
    • Install the necessary board support package (BSP) for ESP32 in the Arduino IDE.
  3. Connecting Peripherals:

    • Use the GPIO pins to interface with sensors, actuators, and other devices.
    • Configure the pins in your code according to the required functionality (e.g., input, output, ADC, PWM).
  4. Uploading Code:

    • Connect the ESP32 to your computer via a USB cable.
    • Select the correct board and COM port in the Arduino IDE.
    • Press the "Upload" button to flash your code to the ESP32.

Important Considerations and Best Practices

  • Voltage Levels: The ESP32 operates at 3.3V logic levels. Avoid connecting 5V signals directly to GPIO pins.
  • Boot Mode: GPIO0 must be pulled low during boot to enter programming mode.
  • Power Consumption: Use deep sleep mode to reduce power consumption in battery-powered applications.
  • Pin Conflicts: Avoid using GPIO6–GPIO11 for general-purpose I/O, as these are connected to the internal flash memory.

Example Code for Arduino UNO Integration

Below is an example of using the ESP32 to read a temperature sensor and send data via Wi-Fi:

#include <WiFi.h> // Include the Wi-Fi library

// Replace with your network credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";

void setup() {
  Serial.begin(115200); // Initialize serial communication
  WiFi.begin(ssid, password); // Connect to Wi-Fi

  // Wait for connection
  while (WiFi.status() != WL_CONNECTED) {
    delay(1000);
    Serial.println("Connecting to Wi-Fi...");
  }
  Serial.println("Connected to Wi-Fi!");
}

void loop() {
  // Example: Read a sensor value (replace with actual sensor code)
  int sensorValue = analogRead(34); // Read from GPIO34 (ADC1 channel 6)
  Serial.print("Sensor Value: ");
  Serial.println(sensorValue);

  delay(1000); // Wait for 1 second
}

Note: Replace Your_SSID and Your_PASSWORD with your Wi-Fi network credentials.

Troubleshooting and FAQs

Common Issues and Solutions

  1. ESP32 Not Connecting to Wi-Fi:

    • Ensure the SSID and password are correct.
    • Check if the Wi-Fi network is within range.
    • Verify that the ESP32 is powered properly.
  2. Code Upload Fails:

    • Ensure the correct board and COM port are selected in the Arduino IDE.
    • Press and hold the "BOOT" button on the ESP32 while uploading the code.
  3. GPIO Pin Not Working:

    • Check if the pin is being used for another function (e.g., boot mode).
    • Verify that the pin is configured correctly in the code.
  4. Overheating:

    • Ensure the ESP32 is not drawing excessive current.
    • Use a heat sink or proper ventilation if necessary.

FAQs

  • Q: Can the ESP32 operate on 5V logic?
    A: No, the ESP32 operates on 3.3V logic. Use a level shifter for 5V signals.

  • Q: How do I reset the ESP32?
    A: Press the "EN" button on the board to reset the ESP32.

  • Q: Can I use the ESP32 with a battery?
    A: Yes, you can power the ESP32 using a 3.7V LiPo battery connected to the VIN pin.

For more detailed information, refer to the official ESP32 datasheet and programming guide.
