How to Use Power Distribution Board: Examples, Pinouts, and Specs

A Power Distribution Board (PDB) is a crucial electronic component designed to distribute electrical power efficiently to various components in a system. It ensures that each connected device receives the appropriate voltage and current, enabling seamless operation. PDBs are commonly used in applications such as drones, robotics, RC vehicles, and other systems requiring multiple power outputs. Many PDBs also include built-in safety features like fuses or circuit breakers to protect against overcurrent or short circuits.

• Multirotor drones (e.g., quadcopters) for powering ESCs and motors
• Robotics systems for distributing power to sensors, actuators, and controllers
• RC vehicles for managing power to servos, motors, and receivers
• DIY electronics projects requiring multiple power outputs

• Input Voltage Range: 7V to 26V (2S to 6S LiPo batteries)
• Maximum Current Rating: 100A (total), 20A per output (varies by model)
• Number of Outputs: Typically 4 to 8 outputs
• Built-in Protection: Overcurrent protection, short-circuit protection, and reverse polarity protection
• Additional Features (optional): Voltage regulators (e.g., 5V, 12V outputs), LED indicators, and current sensors

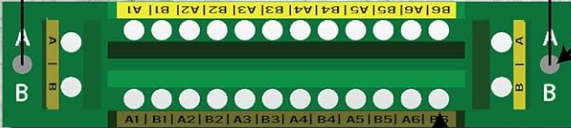

Below is a typical pin configuration for a Power Distribution Board:

Note: The exact pin configuration may vary depending on the PDB model. Always refer to the manufacturer's datasheet for specific details.

1. Connect the Power Source:

   • Attach the positive and negative terminals of your power source (e.g., LiPo battery) to the PDB's input connectors. Ensure proper polarity to avoid damage.

2. Connect the Outputs:

   • Connect the devices (e.g., ESCs, motors, or other components) to the PDB's output terminals. Match the positive and negative terminals correctly.

3. Optional Connections:

   • If your PDB includes regulated outputs (e.g., 5V or 12V), use these to power low-voltage components like microcontrollers or cameras.
   • If the PDB has a current sensor pin, connect it to a compatible flight controller or monitoring device.

4. Secure the Connections:

   • Use appropriate connectors or solder the wires securely to the PDB to ensure reliable operation.

5. Test the Setup:

   • Before powering the system, double-check all connections for proper polarity and secure attachment.
   • Power on the system and verify that all components receive the correct voltage and function as expected.

• Avoid Overloading: Ensure that the total current draw does not exceed the PDB's maximum current rating.
• Heat Dissipation: If the PDB operates under high current loads, ensure adequate ventilation or cooling to prevent overheating.
• Polarity Check: Always verify the polarity of connections to avoid damaging the PDB or connected components.
• Fuse Replacement: If the PDB includes fuses, replace blown fuses with ones of the same rating.

If your PDB includes a 5V regulated output, you can use it to power an Arduino UNO. Below is an example of how to connect and use the PDB with an Arduino UNO:

1. Connect the PDB's 5V output to the Arduino's 5V pin.
2. Connect the PDB's ground (GND) to the Arduino's GND pin.
3. Use the Arduino to control other components powered by the PDB.

Here is a simple Arduino code example to blink an LED connected to the PDB:

// Define the pin connected to the LED
const int ledPin = 13; // Onboard LED on Arduino UNO

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Note: Ensure the PDB's 5V output is stable and within the Arduino's operating voltage range.

1. No Power Output:

   • Cause: Incorrect input connection or blown fuse.
   • Solution: Verify the input connections and replace any blown fuses.

2. Overheating:

   • Cause: Excessive current draw or poor ventilation.
   • Solution: Reduce the load on the PDB or improve airflow around the board.

3. Voltage Drop:

   • Cause: High resistance in connections or overloaded outputs.
   • Solution: Check and secure all connections. Ensure the total load is within the PDB's capacity.

4. Short Circuit:

   • Cause: Miswiring or damaged components.
   • Solution: Disconnect power immediately, inspect the wiring, and replace any damaged parts.

• Q: Can I use a PDB with a 3S LiPo battery?
  A: Yes, most PDBs support a wide input voltage range, including 3S (11.1V) LiPo batteries. Check the specifications of your PDB to confirm compatibility.

• Q: How do I know if the PDB is overloaded?
  A: Monitor the current draw using a current sensor or check for signs of overheating. If the PDB includes LED indicators, they may signal an overload condition.

• Q: Can I power multiple devices with different voltage requirements?
  A: Yes, if your PDB includes regulated outputs (e.g., 5V and 12V), you can power devices with different voltage requirements simultaneously.

By following this documentation, you can effectively integrate and troubleshoot a Power Distribution Board in your electronic projects.
