How to Use Buzzer: Examples, Pinouts, and Specs

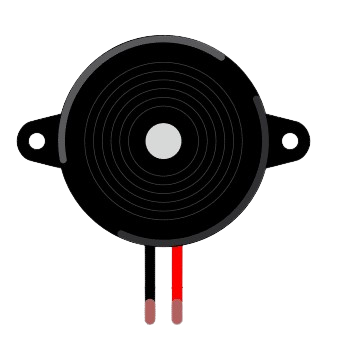

Image of Buzzer
Cirkit Designer LogoDesign with Buzzer in Cirkit Designer

Introduction

A buzzer is an audio signaling device that produces sound when an electric current passes through it. It is widely used in various applications such as alarms, timers, and notifications. Buzzers are available in two main types: active and passive. Active buzzers generate sound when powered, while passive buzzers require an external signal to produce sound. Their simplicity, low cost, and reliability make them a popular choice in electronic projects.

Explore Projects Built with Buzzer

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO Controlled School Bell System with DS3231 RTC and Relay Module
Image of automatic bell system: A project utilizing Buzzer in a practical application
This circuit is designed as an automatic school bell system controlled by an Arduino UNO microcontroller. The Arduino is programmed to ring a buzzer at the start of each school period, with a total of 6 periods defined in the code. The DS3231 Real-Time Clock (RTC) module is used for accurate timekeeping, and a relay module interfaces the Arduino with the buzzer to handle the higher current required to drive the buzzer.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered IR Sensor and Buzzer Alarm System
Image of blindstick: A project utilizing Buzzer in a practical application
This circuit consists of an IR sensor and a buzzer powered by a 9V battery. The IR sensor detects an object and triggers the buzzer to sound an alarm when an object is detected.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Buzzer Circuit
Image of  Buzzer with AA battery: A project utilizing Buzzer in a practical application
This circuit consists of a simple buzzer connected to a 3V battery source. The positive terminal of the battery is connected to the buzzer's power input, and the negative terminal is connected to the buzzer's ground. The circuit is designed to power the buzzer continuously, producing a constant sound or tone as long as the battery provides sufficient voltage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Voice-Controlled Buzzer System with VC-02 Module
Image of vc: A project utilizing Buzzer in a practical application
This circuit features a VC-02 voice recognition module connected to a buzzer and powered by a 5V battery. The VC-02 module is programmed to listen for specific voice commands and, upon recognizing the command 'can you make a sound', it activates the buzzer for one second. The circuit is designed for voice-activated sound generation, with the VC-02 module handling voice recognition and serial communication, and the buzzer providing audible feedback.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Buzzer

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of automatic bell system: A project utilizing Buzzer in a practical application
Arduino UNO Controlled School Bell System with DS3231 RTC and Relay Module
This circuit is designed as an automatic school bell system controlled by an Arduino UNO microcontroller. The Arduino is programmed to ring a buzzer at the start of each school period, with a total of 6 periods defined in the code. The DS3231 Real-Time Clock (RTC) module is used for accurate timekeeping, and a relay module interfaces the Arduino with the buzzer to handle the higher current required to drive the buzzer.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of blindstick: A project utilizing Buzzer in a practical application
Battery-Powered IR Sensor and Buzzer Alarm System
This circuit consists of an IR sensor and a buzzer powered by a 9V battery. The IR sensor detects an object and triggers the buzzer to sound an alarm when an object is detected.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of  Buzzer with AA battery: A project utilizing Buzzer in a practical application
Battery-Powered Buzzer Circuit
This circuit consists of a simple buzzer connected to a 3V battery source. The positive terminal of the battery is connected to the buzzer's power input, and the negative terminal is connected to the buzzer's ground. The circuit is designed to power the buzzer continuously, producing a constant sound or tone as long as the battery provides sufficient voltage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of vc: A project utilizing Buzzer in a practical application
Voice-Controlled Buzzer System with VC-02 Module
This circuit features a VC-02 voice recognition module connected to a buzzer and powered by a 5V battery. The VC-02 module is programmed to listen for specific voice commands and, upon recognizing the command 'can you make a sound', it activates the buzzer for one second. The circuit is designed for voice-activated sound generation, with the VC-02 module handling voice recognition and serial communication, and the buzzer providing audible feedback.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Alarm systems (e.g., burglar alarms, fire alarms)
  • Timers and reminders
  • Notification systems in appliances (e.g., microwave ovens, washing machines)
  • Electronic toys and gadgets
  • Arduino and microcontroller-based projects

Technical Specifications

Below are the general technical specifications for a typical buzzer. Note that specific values may vary depending on the model and manufacturer.

Parameter Specification
Operating Voltage 3V to 12V (commonly 5V)
Current Consumption 10mA to 50mA
Sound Output Level 85dB to 100dB (at 10cm distance)
Frequency Range 2kHz to 4kHz
Operating Temperature -20°C to +60°C
Dimensions Varies (e.g., 12mm diameter for small buzzers)

Pin Configuration

Buzzers typically have two pins:

Pin Description
Positive (+) Connect to the positive terminal of the power supply or signal source.
Negative (-) Connect to the ground (GND) of the circuit.

For active buzzers, simply applying a DC voltage will produce sound. For passive buzzers, an oscillating signal (e.g., PWM) is required.

Usage Instructions

How to Use a Buzzer in a Circuit

  1. Identify the Type of Buzzer: Determine whether the buzzer is active or passive. Active buzzers are easier to use as they only require a DC voltage, while passive buzzers need a signal source.
  2. Connect the Pins:
    • Connect the positive pin of the buzzer to the power supply or signal source.
    • Connect the negative pin to the ground (GND) of the circuit.
  3. Power the Circuit: For active buzzers, apply the appropriate voltage (e.g., 5V). For passive buzzers, use a microcontroller or signal generator to provide a PWM signal.

Important Considerations

  • Voltage Compatibility: Ensure the operating voltage of the buzzer matches your circuit's power supply.
  • Current Limiting: If necessary, use a resistor to limit the current and protect the buzzer.
  • Signal Frequency: For passive buzzers, use a frequency within the buzzer's range (e.g., 2kHz to 4kHz) to produce sound.
  • Polarity: Always connect the positive and negative pins correctly to avoid damage.

Example: Connecting a Buzzer to an Arduino UNO

Below is an example of how to connect and control a passive buzzer using an Arduino UNO.

Circuit Diagram

  • Connect the positive pin of the buzzer to Arduino pin 9.
  • Connect the negative pin of the buzzer to GND.

Arduino Code

// Example code to control a passive buzzer with Arduino UNO
// The buzzer will produce a tone at 2kHz for 1 second, then stop for 1 second.

#define BUZZER_PIN 9  // Define the pin connected to the buzzer

void setup() {
  pinMode(BUZZER_PIN, OUTPUT);  // Set the buzzer pin as an output
}

void loop() {
  tone(BUZZER_PIN, 2000);  // Generate a 2kHz tone on the buzzer pin
  delay(1000);             // Wait for 1 second
  noTone(BUZZER_PIN);      // Stop the tone
  delay(1000);             // Wait for 1 second
}

Best Practices

  • Use a transistor or MOSFET to drive the buzzer if the current exceeds the microcontroller's pin limit.
  • For passive buzzers, experiment with different frequencies to achieve the desired sound.

Troubleshooting and FAQs

Common Issues

  1. No Sound from the Buzzer:

    • Check the connections and ensure the buzzer is receiving the correct voltage.
    • Verify the polarity of the buzzer pins.
    • For passive buzzers, ensure the signal frequency is within the buzzer's range.
  2. Buzzer Produces Weak or Distorted Sound:

    • Ensure the power supply provides sufficient current.
    • Check for loose or poor connections in the circuit.
  3. Buzzer Overheats:

    • Verify that the operating voltage and current are within the buzzer's specifications.
    • Use a current-limiting resistor if necessary.

FAQs

Q: Can I use a passive buzzer without a microcontroller?
A: Yes, you can use a signal generator or an oscillator circuit to drive a passive buzzer.

Q: How do I differentiate between an active and a passive buzzer?
A: Active buzzers typically have a built-in oscillator and produce sound when powered with DC voltage. Passive buzzers require an external signal and are usually smaller in size.

Q: Can I control the volume of a buzzer?
A: The volume of a buzzer is generally fixed. However, you can reduce the volume by lowering the supply voltage (within the operating range) or using a resistor in series.

By following this documentation, you can effectively integrate a buzzer into your electronic projects and troubleshoot common issues.
