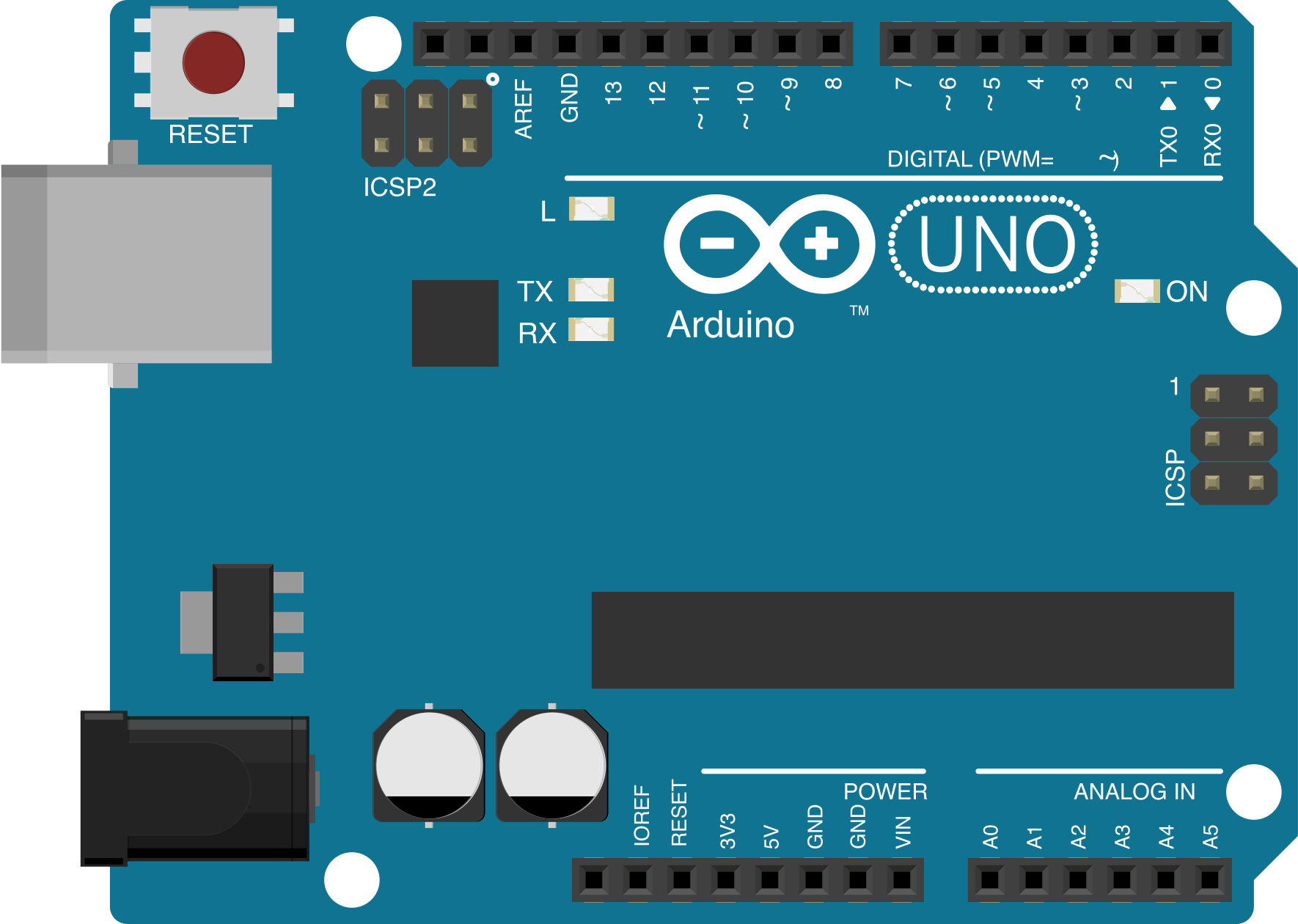

Image of Arduino Uno (Rev3)
Cirkit Designer LogoDesign with Arduino Uno (Rev3) in Cirkit Designer

Introduction

The Arduino Uno (Rev3), manufactured by Arduino, is a versatile microcontroller board based on the ATmega328P microcontroller. It is widely used in prototyping, embedded systems, and educational projects due to its simplicity, flexibility, and extensive community support. The board features 14 digital input/output pins (6 of which can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection for programming, a power jack, and a reset button.

Explore Projects Built with Arduino Uno (Rev3)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Uno R3-Based Voice-Controlled Robot with Servo Actuation and SD Logging
Image of wheel: A project utilizing Arduino Uno (Rev3) in a practical application
This circuit features an Arduino Uno R3 as the central microcontroller, interfaced with a variety of components. It includes a voice recognition module for audio input commands, an analog thumbstick for manual control, and multiple servos for actuation. Additionally, the circuit integrates an I2C LCD screen for display purposes, an infrared proximity sensor for distance measurement, and a micro SD card module for data storage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Based Smart Water Level Monitoring and Control System
Image of Circuit: A project utilizing Arduino Uno (Rev3) in a practical application
This circuit features multiple Arduino Uno R3 boards interfaced with various sensors, actuators, and modules. It includes ultrasonic sensors (HC-SR04) for distance measurement, a servo motor (MG996R) for actuation, a real-time clock (RTC DS3231), a GSM module (SIM 800L V2.0) for cellular communication, and an I2C LCD display for user interface. Additionally, the circuit controls a bilge pump via a 12V relay, powered by a 12V power supply, with AC mains integration for the pump.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based GPS and GSM Tracking System with Ultrasonic Sensing and OLED Display
Image of Radar missile  system  : A project utilizing Arduino Uno (Rev3) in a practical application
This circuit features an Arduino UNO as the central microcontroller, interfaced with a variety of components for sensing, communication, and display. It includes an HC-SR04 Ultrasonic Sensor for distance measurement, an Adafruit Ultimate GPS module for location tracking, a SIM800L module for GSM communication, and a 0.96" OLED display for visual output. Additionally, the circuit integrates an ESP32 for potential WiFi/Bluetooth capabilities, a servo motor for actuation, and a buzzer for audio signaling, all powered through the Arduino's voltage pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Uno Robotic Arm with IR Sensors and LCD Display
Image of parking: A project utilizing Arduino Uno (Rev3) in a practical application
This circuit is a robotic system controlled by an Arduino Uno, featuring three servos for movement, three IR sensors for object detection, and a 16x2 I2C LCD for displaying status messages. The Arduino code handles servo movements based on sensor inputs and controls motor operations, enabling the robot to perform tasks such as picking up objects and moving them to different locations.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino Uno (Rev3)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of wheel: A project utilizing Arduino Uno (Rev3) in a practical application
Arduino Uno R3-Based Voice-Controlled Robot with Servo Actuation and SD Logging
This circuit features an Arduino Uno R3 as the central microcontroller, interfaced with a variety of components. It includes a voice recognition module for audio input commands, an analog thumbstick for manual control, and multiple servos for actuation. Additionally, the circuit integrates an I2C LCD screen for display purposes, an infrared proximity sensor for distance measurement, and a micro SD card module for data storage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Circuit: A project utilizing Arduino Uno (Rev3) in a practical application
Arduino-Based Smart Water Level Monitoring and Control System
This circuit features multiple Arduino Uno R3 boards interfaced with various sensors, actuators, and modules. It includes ultrasonic sensors (HC-SR04) for distance measurement, a servo motor (MG996R) for actuation, a real-time clock (RTC DS3231), a GSM module (SIM 800L V2.0) for cellular communication, and an I2C LCD display for user interface. Additionally, the circuit controls a bilge pump via a 12V relay, powered by a 12V power supply, with AC mains integration for the pump.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Radar missile  system  : A project utilizing Arduino Uno (Rev3) in a practical application
Arduino UNO-Based GPS and GSM Tracking System with Ultrasonic Sensing and OLED Display
This circuit features an Arduino UNO as the central microcontroller, interfaced with a variety of components for sensing, communication, and display. It includes an HC-SR04 Ultrasonic Sensor for distance measurement, an Adafruit Ultimate GPS module for location tracking, a SIM800L module for GSM communication, and a 0.96" OLED display for visual output. Additionally, the circuit integrates an ESP32 for potential WiFi/Bluetooth capabilities, a servo motor for actuation, and a buzzer for audio signaling, all powered through the Arduino's voltage pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of parking: A project utilizing Arduino Uno (Rev3) in a practical application
Arduino Uno Robotic Arm with IR Sensors and LCD Display
This circuit is a robotic system controlled by an Arduino Uno, featuring three servos for movement, three IR sensors for object detection, and a 16x2 I2C LCD for displaying status messages. The Arduino code handles servo movements based on sensor inputs and controls motor operations, enabling the robot to perform tasks such as picking up objects and moving them to different locations.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Prototyping and testing electronic circuits
  • IoT (Internet of Things) projects
  • Robotics and automation systems
  • Sensor data acquisition and processing
  • Educational tools for learning programming and electronics

Technical Specifications

Below are the key technical details of the Arduino Uno (Rev3):

Specification Details
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (6 PWM outputs)
PWM Digital I/O Pins 6
Analog Input Pins 6
DC Current per I/O Pin 20 mA
Flash Memory 32 KB (0.5 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Connector Type-B
Dimensions 68.6 mm x 53.4 mm
Weight 25 g

Pin Configuration and Descriptions

The Arduino Uno (Rev3) has a total of 28 pins, including digital, analog, power, and communication pins. Below is a detailed breakdown:

Digital Pins

Pin Number Function Description
0 (RX) Digital I/O, UART Receive Used for serial communication (receive data)
1 (TX) Digital I/O, UART Transmit Used for serial communication (transmit data)
2-13 Digital I/O General-purpose digital input/output pins
3, 5, 6, 9, 10, 11 PWM Output Can output PWM signals for motor control, LEDs, etc.

Analog Pins

Pin Number Function Description
A0-A5 Analog Input Reads analog signals (0-5V) with 10-bit resolution

Power Pins

Pin Name Function Description
VIN Input Voltage External power input (7-12V recommended)
5V Regulated 5V Output Powers external components
3.3V Regulated 3.3V Output Powers low-voltage components
GND Ground Common ground for the circuit
RESET Reset Resets the microcontroller

Communication Pins

Pin Name Function Description
SDA I2C Data Data line for I2C communication
SCL I2C Clock Clock line for I2C communication
RX (0) UART Receive Serial communication receive pin
TX (1) UART Transmit Serial communication transmit pin

Usage Instructions

How to Use the Arduino Uno (Rev3) in a Circuit

  1. Powering the Board:

    • Connect the board to your computer using a USB Type-B cable for programming and power.
    • Alternatively, use an external power supply (7-12V) via the VIN pin or the DC power jack.
  2. Programming the Board:

    • Install the Arduino IDE from the official Arduino website.
    • Connect the board to your computer via USB.
    • Select the correct board ("Arduino Uno") and port in the Arduino IDE.
    • Write your code in the IDE and click the "Upload" button to program the board.
  3. Connecting Components:

    • Use the digital and analog pins to connect sensors, actuators, and other components.
    • Ensure that the total current drawn by all components does not exceed the board's limits (20 mA per pin, 200 mA total).
  4. Using PWM Outputs:

    • Connect devices like LEDs or motors to PWM-capable pins (3, 5, 6, 9, 10, 11) for variable control.
  5. Serial Communication:

    • Use the Serial Monitor in the Arduino IDE to send and receive data via the USB connection.

Important Considerations and Best Practices

  • Avoid short circuits or overloading the pins, as this can damage the board.
  • Use external pull-up or pull-down resistors for stable digital input signals.
  • When using motors or high-power devices, use external power supplies and appropriate driver circuits.
  • Always double-check connections before powering the board.

Example Code: Blinking an LED

The following example demonstrates how to blink an LED connected to digital pin 13:

// This example code blinks an LED connected to pin 13 on the Arduino Uno.
// The LED will turn on for 1 second, then off for 1 second, repeatedly.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the USB cable is properly connected and functional.
    • Install the necessary drivers for the Arduino Uno (available in the Arduino IDE).
  2. Code does not upload to the board:

    • Verify that the correct board and port are selected in the Arduino IDE.
    • Press the reset button on the board before uploading.
  3. Components are not working as expected:

    • Check all connections and ensure components are connected to the correct pins.
    • Verify that the power supply is sufficient for the connected components.
  4. The board overheats:

    • Ensure that the total current drawn by all components does not exceed the board's limits.
    • Use external power supplies for high-power devices.

FAQs

Q: Can I power the Arduino Uno with a battery?
A: Yes, you can use a 9V battery connected to the DC power jack or the VIN pin.

Q: What is the maximum voltage the analog pins can read?
A: The analog pins can read voltages between 0 and 5V.

Q: Can I use the Arduino Uno for wireless communication?
A: Yes, you can use external modules like Bluetooth, Wi-Fi, or RF transceivers for wireless communication.

Q: Is the Arduino Uno compatible with shields?
A: Yes, the Arduino Uno is compatible with a wide range of shields designed for the Uno form factor.
