Introduction

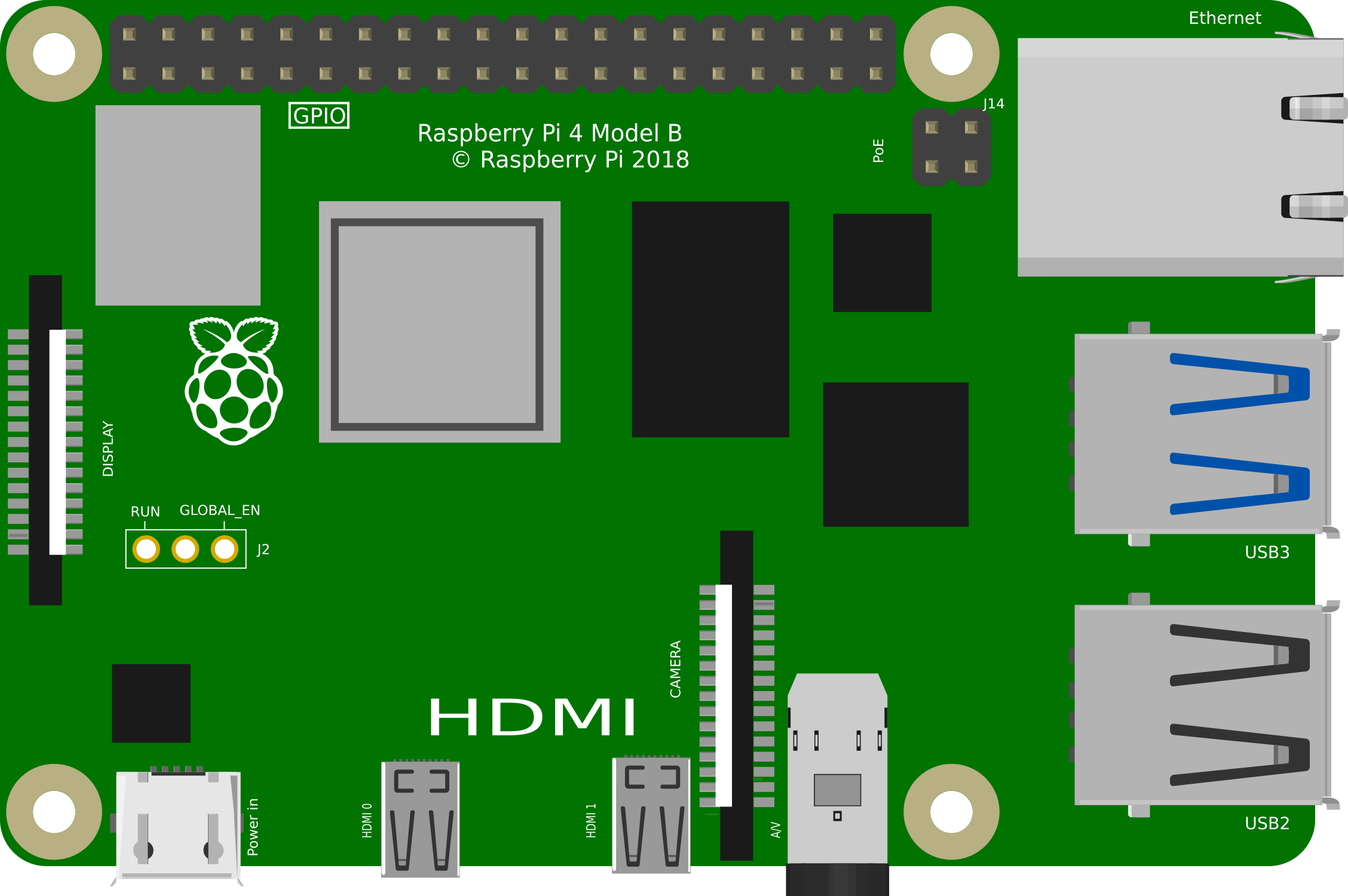

The Raspberry Pi 4B is a compact and affordable single-board computer designed for a wide range of applications. It features a powerful quad-core processor, up to 8GB of RAM, multiple USB ports, dual micro-HDMI outputs, and built-in Wi-Fi and Bluetooth connectivity. This versatile device is ideal for projects such as learning programming, building IoT devices, creating media centers, and more. Its small form factor and robust capabilities make it a popular choice for hobbyists, educators, and professionals alike.

Explore Projects Built with Raspberry Pi 4B

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

Raspberry Pi 4B-Controlled Relay System with Environmental Sensing and Power Monitoring

This circuit is designed to interface a Raspberry Pi 4B with various sensors and output devices. It includes a 4-channel relay for controlling external loads, an ADS1115 for analog-to-digital conversion of signals from a current sensor and a ZMPT101B voltage sensor, a DHT11 for temperature and humidity readings, and a 0.96" OLED display for data output. The Raspberry Pi 4B serves as the central controller, managing data acquisition from the sensors, processing the information, and driving the relay and display based on the sensor inputs and programmed logic.

Open Project in Cirkit Designer

Raspberry Pi 4B-Based Smart Surveillance System with GPS and Ultrasonic Sensing

This circuit features a Raspberry Pi 4B as the central processing unit, interfacing with an Arducam camera module, an HC-SR04 ultrasonic sensor, a GPS NEO 6M module, and a speaker. The Raspberry Pi manages image capture, distance measurement, GPS data reception, and audio output. Power is supplied to the components from a 2000mAh battery, and the Raspberry Pi facilitates communication and control over the I2C, GPIO, and serial interfaces.

Open Project in Cirkit Designer

Raspberry Pi 4B-based Payment Kiosk with Coin and Bill Acceptors

This circuit features a Raspberry Pi 4B as the central controller, interfaced with a variety of peripherals for a payment and display system. It includes a bill acceptor and multi coin acceptor for monetary input, a thermal printer for receipts, and a touch display for user interaction. The circuit also incorporates a 12V to 5V step-down converter to power the 5V components and a membrane matrix keypad for additional input options.

Open Project in Cirkit Designer

Raspberry Pi 4B Controlled RFID and Keypad Security System with I2C LCD Feedback and Motorized Lock Mechanism

This circuit features a Raspberry Pi 4B as the central controller, interfaced with an I2C LCD screen for display, an RFID-RC522 module for RFID reading, a 4x4 membrane matrix keypad for user input, and an L298N motor driver to control a DC motor. The Raspberry Pi manages data communication with the LCD via I2C, reads RFID tags, processes keypad inputs, and controls the motor's operation. Power is supplied to the motor driver and the Raspberry Pi through a 9V battery and regulated 5V connections.

Open Project in Cirkit Designer

Common Applications and Use Cases

• Learning Programming: Ideal for beginners to learn Python, Java, and other languages.
• IoT Projects: Acts as a hub for smart home devices or other IoT systems.
• Media Centers: Can be used to build a home theater system with software like Kodi.
• Retro Gaming: Supports emulation software for retro gaming consoles.
• Robotics: Powers robots and other hardware projects.
• Edge Computing: Suitable for lightweight AI and machine learning tasks.

---

Technical Specifications

Key Technical Details

Pin Configuration and Descriptions

The Raspberry Pi 4B features a 40-pin GPIO header. Below is a summary of the pin configuration:

For a complete GPIO pinout, refer to the official Raspberry Pi documentation.

---

Usage Instructions

How to Use the Raspberry Pi 4B in a Circuit

1. Powering the Raspberry Pi: Use a 5V/3A USB-C power supply to power the board. Ensure the power supply is reliable to avoid voltage drops.
2. Connecting Peripherals: Attach a keyboard, mouse, and monitor via USB and HDMI ports. Alternatively, use SSH or VNC for headless operation.
3. Booting the OS: Flash a microSD card with Raspberry Pi OS (or another compatible OS) using tools like Raspberry Pi Imager. Insert the card into the microSD slot and power on the device.
4. Using GPIO Pins: Connect external components (e.g., LEDs, sensors) to the GPIO pins. Use Python libraries like RPi.GPIO or gpiozero to control the pins.

Important Considerations and Best Practices

• Cooling: The Raspberry Pi 4B can get hot under heavy loads. Use a heatsink or fan for proper cooling.
• Power Supply: Always use a high-quality power supply to prevent instability.
• Static Protection: Handle the board carefully to avoid static discharge damage.
• Software Updates: Regularly update the OS and software packages for security and performance improvements.

Example: Blinking an LED with GPIO

Below is an example of how to blink an LED connected to GPIO pin 17 using Python:

# Import necessary libraries
import RPi.GPIO as GPIO
import time

# Set up GPIO mode and pin
GPIO.setmode(GPIO.BCM)  # Use Broadcom pin numbering
GPIO.setup(17, GPIO.OUT)  # Set GPIO 17 as an output pin

try:
    while True:
        GPIO.output(17, GPIO.HIGH)  # Turn LED on
        time.sleep(1)  # Wait for 1 second
        GPIO.output(17, GPIO.LOW)  # Turn LED off
        time.sleep(1)  # Wait for 1 second
except KeyboardInterrupt:
    # Clean up GPIO settings on exit
    GPIO.cleanup()

---

Troubleshooting and FAQs

Common Issues and Solutions

1. The Raspberry Pi does not boot:

   • Ensure the microSD card is properly inserted and contains a valid OS image.
   • Check the power supply for sufficient voltage and current.
   • Verify that the HDMI cable is securely connected to the correct port.

2. Overheating:

   • Use a heatsink or fan to cool the board.
   • Avoid placing the Raspberry Pi in an enclosed space without ventilation.

3. Wi-Fi or Bluetooth not working:

   • Ensure the OS is up to date.
   • Check that the correct region is set for Wi-Fi in the configuration settings.

4. GPIO pins not responding:

   • Verify the pin numbering mode in your code (BCM vs. BOARD).
   • Check for loose connections or incorrect wiring.

FAQs

• Can I power the Raspberry Pi 4B via GPIO pins? Yes, you can power the board using the 5V and GND pins, but this bypasses the onboard voltage regulation and protection.

• What is the maximum resolution supported by the Raspberry Pi 4B? The Raspberry Pi 4B supports dual 4K displays at 60fps via its micro-HDMI ports.

• Can I use the Raspberry Pi 4B for AI projects? Yes, the Raspberry Pi 4B is capable of running lightweight AI and machine learning models, especially when paired with accelerators like the Google Coral USB or Intel Movidius.

---

This concludes the documentation for the Raspberry Pi 4B. For further details, refer to the official Raspberry Pi website or community forums.
