How to Use Converter Ac to Dc 5V: Examples, Pinouts, and Specs

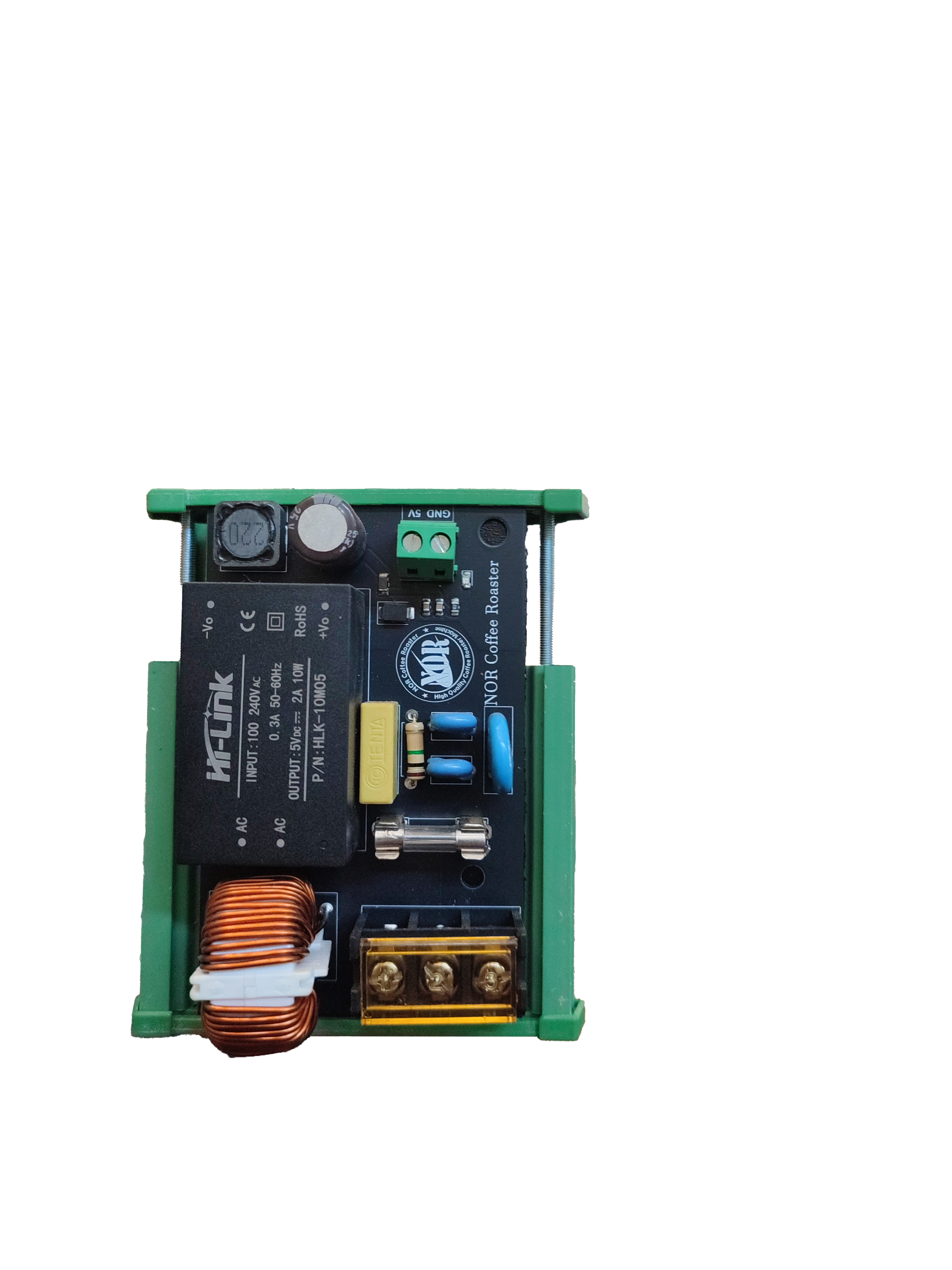

The AC to DC 5V Converter is a device designed to transform alternating current (AC) voltage into a stable direct current (DC) voltage of 5 volts. This component is widely used in powering low-voltage electronic devices such as microcontrollers, sensors, and small appliances. Its compact design and reliable performance make it an essential component in various applications, including home automation, IoT devices, and embedded systems.

• Powering microcontrollers (e.g., Arduino, Raspberry Pi)
• Charging USB-powered devices
• Supplying power to sensors and modules in embedded systems
• Low-power LED lighting systems
• General-purpose DC power supply for small electronics

The following table outlines the key technical details of the AC to DC 5V Converter:

The AC to DC 5V Converter typically has the following pin configuration:

Note: Some models may include additional pins for features like ground connection or mounting.

1. Connect the AC Input:

   • Identify the live (L) and neutral (N) terminals on the converter.
   • Connect the live wire of the AC mains supply to the "L" terminal.
   • Connect the neutral wire of the AC mains supply to the "N" terminal.
   • Ensure proper insulation and secure connections to avoid electrical hazards.

2. Connect the DC Output:

   • Connect the positive terminal of the load (e.g., microcontroller, sensor) to the DC Output (+) pin.
   • Connect the ground terminal of the load to the DC Output (-) pin.

3. Power On:

   • Once all connections are secure, plug the AC input into the mains supply.
   • Verify the output voltage using a multimeter to ensure it is 5V DC before connecting sensitive devices.

• Safety First: Always handle the AC input with care. Ensure the device is powered off during installation.
• Load Compatibility: Verify that the load does not exceed the maximum output current rating of the converter.
• Heat Dissipation: If the converter operates at high current, ensure adequate ventilation to prevent overheating.
• Polarity Check: Double-check the polarity of the DC output connections to avoid damaging connected devices.
• Testing: Use a multimeter to confirm the output voltage and current before connecting sensitive electronics.

The AC to DC 5V Converter can be used to power an Arduino UNO. Below is an example of how to connect it:

1. Connect the DC Output (+) pin of the converter to the Arduino's 5V pin.
2. Connect the DC Output (-) pin of the converter to the Arduino's GND pin.

Here is a simple Arduino sketch to blink an LED while powered by the converter:

// This sketch blinks an LED connected to pin 13 of the Arduino UNO.
// Ensure the Arduino is powered by the AC to DC 5V Converter.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. No Output Voltage:

   • Cause: Loose or incorrect connections.
   • Solution: Double-check all connections, especially the AC input terminals.

2. Overheating:

   • Cause: Excessive load or poor ventilation.
   • Solution: Reduce the load or improve airflow around the converter.

3. Output Voltage Fluctuations:

   • Cause: Input voltage instability or high ripple.
   • Solution: Use a voltage stabilizer or capacitor at the output to smooth the voltage.

4. Device Not Powering On:

   • Cause: Incorrect polarity or insufficient current.
   • Solution: Verify the polarity and ensure the load does not exceed the converter's current rating.

Q1: Can this converter be used outdoors?
A1: Most AC to DC 5V Converters are not weatherproof. Use a weatherproof enclosure for outdoor applications.

Q2: Is it safe to use this converter with sensitive electronics?
A2: Yes, as long as the output voltage and current are within the device's specifications. Verify the output with a multimeter before use.

Q3: Can I use this converter to charge a smartphone?
A3: Yes, if the converter provides sufficient current (e.g., 1A or more) and has a USB output or proper adapter.

Q4: What happens if the load exceeds the maximum current rating?
A4: The converter's over-current protection will activate, shutting down the output to prevent damage.

By following this documentation, you can safely and effectively use the AC to DC 5V Converter in your projects.
