How to Use Breadboard-friendly RGB Smart NeoPixel: Examples, Pinouts, and Specs

The Breadboard-friendly RGB Smart NeoPixel is a compact, digitally-addressable LED light source that integrates red, green, and blue LEDs which can be controlled to produce up to 16 million colors. Each NeoPixel acts as a 'smart' pixel that can be individually addressed by a microcontroller, allowing for intricate designs, animations, and color blending in projects. Common applications include LED strips for mood lighting, wearable electronics, display panels, and custom lighting projects.

• Supply Voltage (Vcc): 4.5V to 5.5V
• Data Input Voltage: 0.5Vcc to 0.9Vcc
• Maximum Current (per LED): 60mA (full brightness, white color)
• Operating Temperature: -25°C to 80°C

1. Power Supply: Connect the VDD pin to a 5V power supply and the GND pin to the common ground in your circuit.
2. Data Signal: Connect the DATA pin to a digital output pin on your microcontroller (e.g., an Arduino UNO).
3. Resistor on Data Line: It is recommended to place a 330-470 ohm resistor between the microcontroller's data output and the DATA pin to prevent spikes that could damage the LED.
4. Capacitor for Power Stability: Place a 1000µF, 6.3V or higher capacitor across the + and - terminals of the power supply to prevent sudden surges in current that could reset the microcontroller or cause flickering in the LEDs.

• Avoid powering the NeoPixel directly from the microcontroller's 5V pin if multiple LEDs are used, as this can exceed the current limit of the microcontroller.
• Use a separate power supply for larger arrays of NeoPixels to ensure consistent brightness and color.
• Always share a common ground between the NeoPixel, microcontroller, and external power supply.

#include <Adafruit_NeoPixel.h>

#define PIN            6 // Pin connected to NeoPixel data input
#define NUMPIXELS      1 // Number of NeoPixels you are controlling

Adafruit_NeoPixel pixels(NUMPIXELS, PIN, NEO_GRB + NEO_KHZ800);

void setup() {
  pixels.begin(); // Initialize the NeoPixel library.
}

void loop() {
  pixels.setPixelColor(0, pixels.Color(255, 0, 0)); // Set the first pixel to red
  pixels.show(); // Update the pixel color
  delay(1000);

  // Add more colors and patterns as desired
}

Ensure that the Adafruit NeoPixel library is installed in the Arduino IDE before uploading this code to the Arduino UNO.

• LEDs Not Lighting Up: Check the power supply and connections. Ensure the data line is connected to the correct pin and that the code is uploaded correctly.
• Flickering LEDs: This could be due to power fluctuations. Ensure the capacitor is installed as recommended.
• Inconsistent Colors: Make sure that the ground of the NeoPixel is connected to the ground of the microcontroller.

• If the LEDs are not responding to the data signal, double-check the resistor on the data line and ensure it is not exceeding 470 ohms.
• For larger projects, consider using a separate power supply and connect all grounds together.
• Always start with a simple test code to ensure the basic functionality before moving on to more complex patterns.

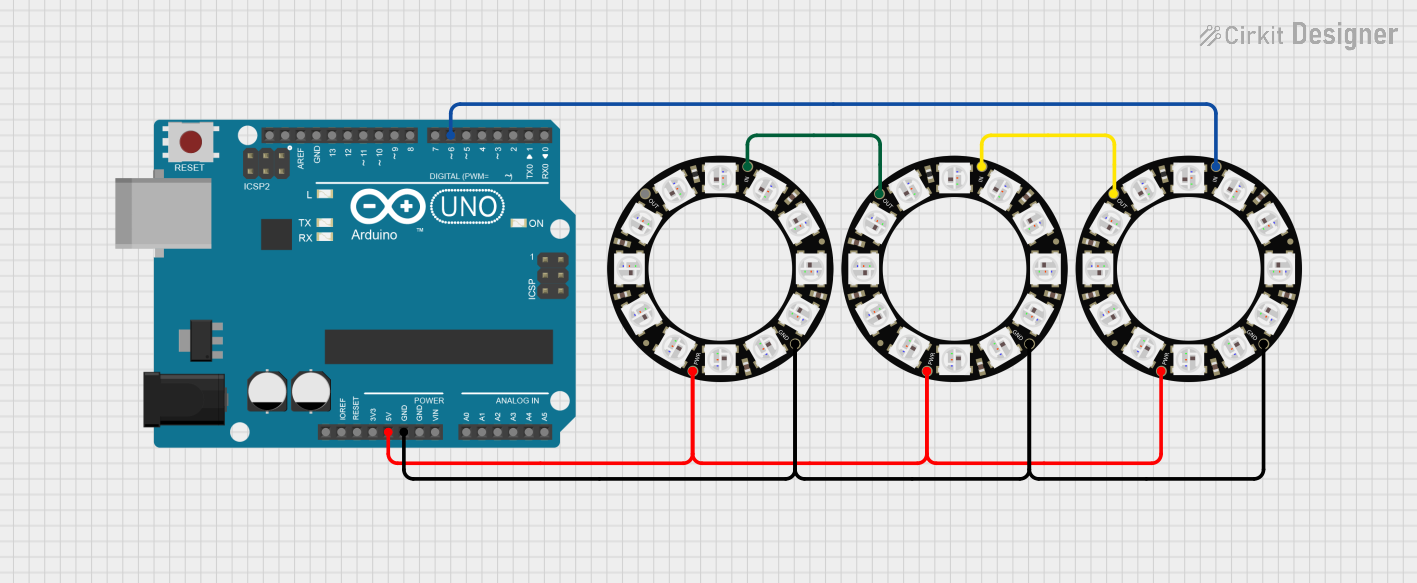

Q: Can I chain multiple NeoPixels together? A: Yes, you can connect the data output of one NeoPixel to the data input of the next. Remember to provide adequate power for the entire chain.

Q: How many NeoPixels can I control with an Arduino UNO? A: The limit is based on the Arduino's memory and the power supply. Each NeoPixel requires 3 bytes of RAM, so an Arduino UNO can theoretically control up to 2000 NeoPixels with an adequate power supply.

Q: Do I need to use a library to control the NeoPixels? A: Yes, using a library such as Adafruit_NeoPixel simplifies the coding process and ensures proper timing for the data signals.
