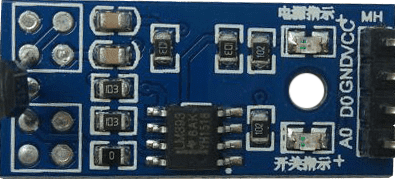

Image of Hall sensor (magnetic)
Cirkit Designer LogoDesign with Hall sensor (magnetic) in Cirkit Designer

Introduction

A Hall sensor is a device that detects the presence and strength of a magnetic field. It operates based on the Hall effect, which generates a voltage difference across a conductor when it is placed in a magnetic field. This property allows the Hall sensor to measure magnetic field strength or detect the presence of magnetic objects.

Explore Projects Built with Hall sensor (magnetic)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano ESP32 Hall Sensor Interface with LCD Display
Image of hall effect + speedometer: A project utilizing Hall sensor (magnetic) in a practical application
This circuit includes a Hall sensor connected to an Arduino Nano ESP32 microcontroller, which is likely used to detect magnetic fields and send the data to the microcontroller on pin D12. The Arduino is also interfaced with an LCD display, with connections for power, ground, control (RS, E), and data (DB4-DB7) to display information. The absence of code suggests that the microcontroller's behavior is not defined in this context, but it is set up to read the Hall sensor and output to the LCD.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano 33 BLE Magnetic Levitation System with Hall Sensor Feedback and Status LED Indicator
Image of LEVITRON: A project utilizing Hall sensor (magnetic) in a practical application
This circuit is designed for a magnetic levitation system that uses a Hall sensor to detect magnetic field strength and a TIP120 transistor to control the current through a levitating coil. An Arduino Nano 33 BLE microcontroller reads the sensor and adjusts the coil current via PWM to maintain levitation, while an LED indicates the system's status. The circuit includes power management with 5V DC sources and protective components like diodes and resistors for current control and indication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Magnetic Field-Activated Solenoid Array with Arduino Control
Image of Railgun: A project utilizing Hall sensor (magnetic) in a practical application
This circuit is designed to use Hall effect sensors for magnetic field detection, interfaced with an Arduino UNO microcontroller to control an array of solenoids through MOSFETs. It includes user interface elements such as a tactile switch and LED, and features flyback diodes for solenoid protection.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Magnetic Field Detector with Hall Sensor
Image of hall : A project utilizing Hall sensor (magnetic) in a practical application
This circuit uses an Arduino UNO to read both analog and digital signals from a Hall magnetic sensor. The sensor's VCC and GND are connected to the Arduino's 5V and GND pins, respectively, while its analog and digital outputs are connected to the Arduino's A0 and D0 pins. The Arduino code reads these values and prints them to the serial monitor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Hall sensor (magnetic)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of hall effect + speedometer: A project utilizing Hall sensor (magnetic) in a practical application
Arduino Nano ESP32 Hall Sensor Interface with LCD Display
This circuit includes a Hall sensor connected to an Arduino Nano ESP32 microcontroller, which is likely used to detect magnetic fields and send the data to the microcontroller on pin D12. The Arduino is also interfaced with an LCD display, with connections for power, ground, control (RS, E), and data (DB4-DB7) to display information. The absence of code suggests that the microcontroller's behavior is not defined in this context, but it is set up to read the Hall sensor and output to the LCD.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of LEVITRON: A project utilizing Hall sensor (magnetic) in a practical application
Arduino Nano 33 BLE Magnetic Levitation System with Hall Sensor Feedback and Status LED Indicator
This circuit is designed for a magnetic levitation system that uses a Hall sensor to detect magnetic field strength and a TIP120 transistor to control the current through a levitating coil. An Arduino Nano 33 BLE microcontroller reads the sensor and adjusts the coil current via PWM to maintain levitation, while an LED indicates the system's status. The circuit includes power management with 5V DC sources and protective components like diodes and resistors for current control and indication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Railgun: A project utilizing Hall sensor (magnetic) in a practical application
Magnetic Field-Activated Solenoid Array with Arduino Control
This circuit is designed to use Hall effect sensors for magnetic field detection, interfaced with an Arduino UNO microcontroller to control an array of solenoids through MOSFETs. It includes user interface elements such as a tactile switch and LED, and features flyback diodes for solenoid protection.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of hall : A project utilizing Hall sensor (magnetic) in a practical application
Arduino UNO Magnetic Field Detector with Hall Sensor
This circuit uses an Arduino UNO to read both analog and digital signals from a Hall magnetic sensor. The sensor's VCC and GND are connected to the Arduino's 5V and GND pins, respectively, while its analog and digital outputs are connected to the Arduino's A0 and D0 pins. The Arduino code reads these values and prints them to the serial monitor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Position sensing in automotive systems (e.g., crankshaft or camshaft position sensors)
  • Proximity detection in industrial automation
  • Current sensing in power electronics
  • Speed detection in motors and wheels
  • Magnetic field measurement in scientific instruments

Technical Specifications

Below are the general technical specifications for a typical Hall sensor. Note that specific values may vary depending on the model and manufacturer.

Parameter Value
Operating Voltage (Vcc) 3.3V to 5V
Output Voltage Range 0V to Vcc
Operating Current 5 mA to 15 mA
Magnetic Sensitivity 1 mV/Gauss to 10 mV/Gauss
Operating Temperature -40°C to +125°C
Response Time Typically < 10 µs

Pin Configuration and Descriptions

The Hall sensor typically comes in a 3-pin configuration. Below is a description of the pins:

Pin Name Description
1 Vcc Power supply pin (3.3V to 5V)
2 GND Ground connection
3 OUT Output pin that provides a voltage proportional to
the detected magnetic field or a digital signal

Usage Instructions

How to Use the Hall Sensor in a Circuit

  1. Power the Sensor: Connect the Vcc pin to a 3.3V or 5V power supply and the GND pin to the ground of your circuit.
  2. Connect the Output: Attach the OUT pin to an analog or digital input pin of your microcontroller, depending on the sensor type (analog or digital).
  3. Place the Sensor: Position the Hall sensor near the magnetic field source you want to detect or measure.
  4. Read the Output: For analog sensors, measure the voltage on the OUT pin to determine the magnetic field strength. For digital sensors, monitor the HIGH or LOW state of the OUT pin to detect the presence of a magnetic field.

Important Considerations and Best Practices

  • Magnetic Polarity: Ensure the correct orientation of the sensor relative to the magnetic field. Some sensors are sensitive to the polarity of the magnetic field.
  • Noise Filtering: Use capacitors (e.g., 0.1 µF) between Vcc and GND to reduce noise in the power supply.
  • Distance: The sensitivity of the sensor decreases with distance from the magnetic source. Place the sensor as close as possible to the source for accurate readings.
  • Temperature Effects: Be aware of the operating temperature range, as extreme temperatures can affect sensor performance.

Example: Using a Hall Sensor with Arduino UNO

Below is an example of how to use a digital Hall sensor with an Arduino UNO to detect a magnetic field.

// Define the pin connected to the Hall sensor's output
const int hallSensorPin = 2; // Digital pin 2
const int ledPin = 13;       // Built-in LED pin

void setup() {
  pinMode(hallSensorPin, INPUT); // Set the Hall sensor pin as input
  pinMode(ledPin, OUTPUT);       // Set the LED pin as output
  Serial.begin(9600);           // Initialize serial communication
}

void loop() {
  int sensorState = digitalRead(hallSensorPin); // Read the sensor's output

  if (sensorState == HIGH) {
    // Magnetic field detected
    digitalWrite(ledPin, HIGH); // Turn on the LED
    Serial.println("Magnetic field detected!");
  } else {
    // No magnetic field detected
    digitalWrite(ledPin, LOW);  // Turn off the LED
    Serial.println("No magnetic field detected.");
  }

  delay(500); // Wait for 500 milliseconds before the next reading
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Signal:

    • Cause: Incorrect wiring or insufficient power supply.
    • Solution: Double-check the connections and ensure the Vcc pin is receiving the correct voltage.
  2. Inconsistent Readings:

    • Cause: Electrical noise or interference.
    • Solution: Add a decoupling capacitor (e.g., 0.1 µF) between Vcc and GND to filter noise.
  3. Sensor Not Detecting Magnetic Field:

    • Cause: Magnetic field too weak or sensor improperly oriented.
    • Solution: Use a stronger magnet or adjust the sensor's position and orientation.
  4. Output Always HIGH or LOW:

    • Cause: Faulty sensor or incorrect polarity of the magnetic field.
    • Solution: Test the sensor with a known magnetic source and verify the polarity.

FAQs

Q: Can I use a Hall sensor to measure current?
A: Yes, Hall sensors are commonly used in current sensing applications. By placing the sensor near a conductor carrying current, the magnetic field generated by the current can be measured.

Q: What is the difference between analog and digital Hall sensors?
A: Analog Hall sensors provide a continuous voltage output proportional to the magnetic field strength, while digital Hall sensors output a HIGH or LOW signal depending on whether the magnetic field exceeds a certain threshold.

Q: Can Hall sensors detect non-magnetic materials?
A: No, Hall sensors are specifically designed to detect magnetic fields and cannot detect non-magnetic materials directly.

Q: How do I increase the sensitivity of my Hall sensor?
A: Use a stronger magnet, reduce the distance between the sensor and the magnetic source, or choose a sensor with higher magnetic sensitivity.
