How to Use Arduino Uno R3: Examples, Pinouts, and Specs

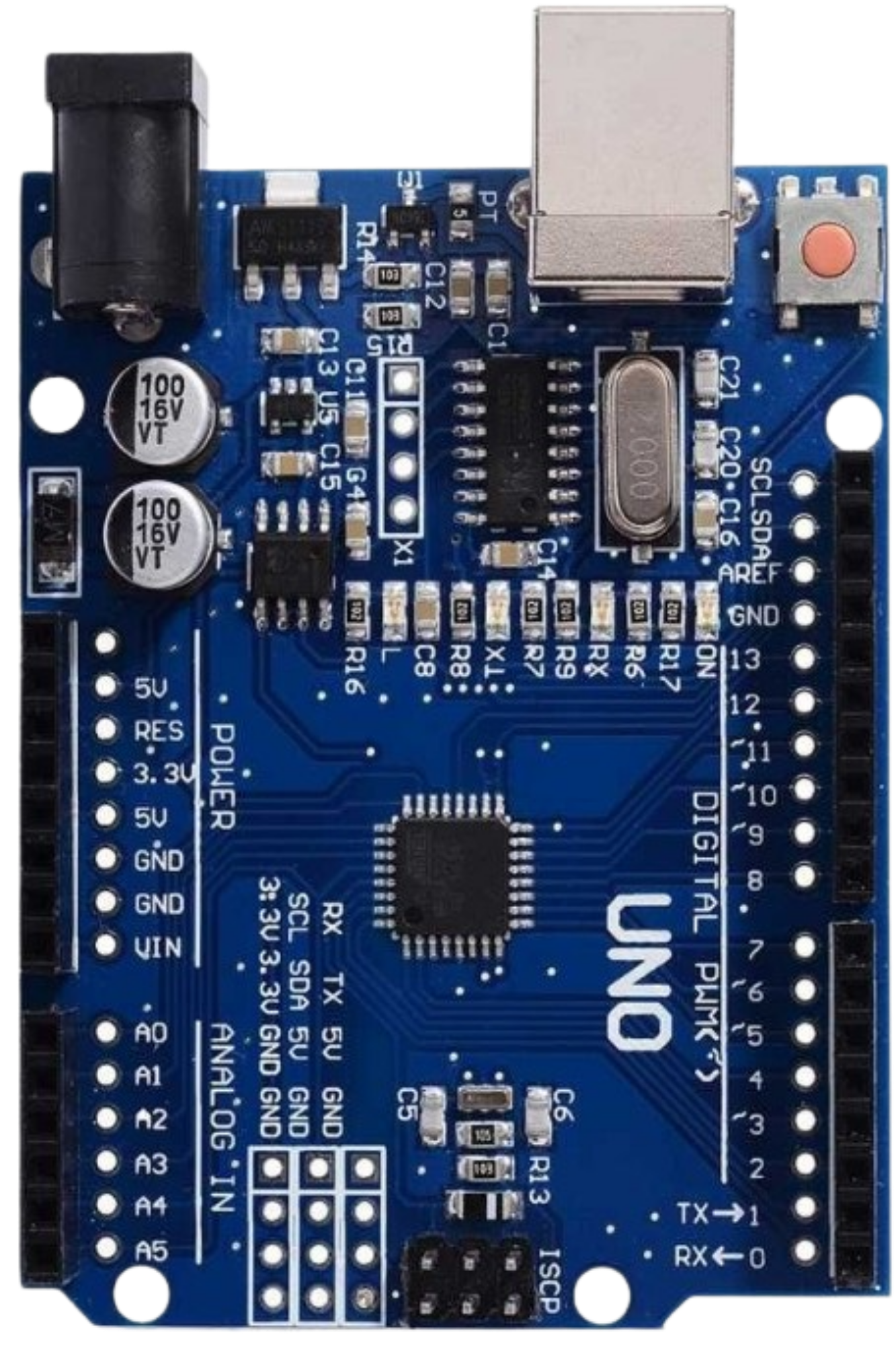

Image of Arduino Uno R3
Cirkit Designer LogoDesign with Arduino Uno R3 in Cirkit Designer

Introduction

The Arduino Uno R3 is a microcontroller board developed by Arduino, based on the ATmega328P microcontroller. It is one of the most popular and versatile development boards in the Arduino ecosystem, designed for beginners and professionals alike. The board features 14 digital input/output pins, 6 analog inputs, a USB connection for programming, and a power jack for external power supply. Its simplicity and extensive community support make it ideal for prototyping, learning electronics, and building interactive projects.

Explore Projects Built with Arduino Uno R3

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino-Based Smart Water Level Monitoring and Control System
Image of Circuit: A project utilizing Arduino Uno R3 in a practical application
This circuit features multiple Arduino Uno R3 boards interfaced with various sensors, actuators, and modules. It includes ultrasonic sensors (HC-SR04) for distance measurement, a servo motor (MG996R) for actuation, a real-time clock (RTC DS3231), a GSM module (SIM 800L V2.0) for cellular communication, and an I2C LCD display for user interface. Additionally, the circuit controls a bilge pump via a 12V relay, powered by a 12V power supply, with AC mains integration for the pump.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Uno R3-Based Voice-Controlled Robot with Servo Actuation and SD Logging
Image of wheel: A project utilizing Arduino Uno R3 in a practical application
This circuit features an Arduino Uno R3 as the central microcontroller, interfaced with a variety of components. It includes a voice recognition module for audio input commands, an analog thumbstick for manual control, and multiple servos for actuation. Additionally, the circuit integrates an I2C LCD screen for display purposes, an infrared proximity sensor for distance measurement, and a micro SD card module for data storage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Uno R3-Based Voice-Controlled Robotic Interface with LCD Feedback
Image of Copy of wheel: A project utilizing Arduino Uno R3 in a practical application
This circuit features an Arduino Uno R3 as the central controller, interfaced with a voice recognition module for audio input commands, an Adafruit Mini Analog Thumbstick for manual control input, and multiple servos for actuation. The Arduino also connects to an I2C LCD 16x2 Screen for display output and an Infrared Proximity Sensor for distance measurement. The circuit is designed for interactive control of servos with both voice and joystick inputs, while providing visual feedback and proximity sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Uno R3 with MQ Gas Sensors and I2C LCD Display
Image of O.M.C MACHINE CKT DIAGRAM: A project utilizing Arduino Uno R3 in a practical application
This circuit is designed to monitor gas levels using MQ-5 and MQ-4 gas sensors, with the capability to provide both digital and analog readings. The Arduino Uno R3 serves as the central processing unit, reading sensor outputs and controlling an MKE-M07 LCD1602 I2C display to provide a user interface for real-time gas concentration data. The sensors and display are powered by the Arduino's 5V output, and the ground connections are shared across all components.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino Uno R3

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Circuit: A project utilizing Arduino Uno R3 in a practical application
Arduino-Based Smart Water Level Monitoring and Control System
This circuit features multiple Arduino Uno R3 boards interfaced with various sensors, actuators, and modules. It includes ultrasonic sensors (HC-SR04) for distance measurement, a servo motor (MG996R) for actuation, a real-time clock (RTC DS3231), a GSM module (SIM 800L V2.0) for cellular communication, and an I2C LCD display for user interface. Additionally, the circuit controls a bilge pump via a 12V relay, powered by a 12V power supply, with AC mains integration for the pump.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of wheel: A project utilizing Arduino Uno R3 in a practical application
Arduino Uno R3-Based Voice-Controlled Robot with Servo Actuation and SD Logging
This circuit features an Arduino Uno R3 as the central microcontroller, interfaced with a variety of components. It includes a voice recognition module for audio input commands, an analog thumbstick for manual control, and multiple servos for actuation. Additionally, the circuit integrates an I2C LCD screen for display purposes, an infrared proximity sensor for distance measurement, and a micro SD card module for data storage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of wheel: A project utilizing Arduino Uno R3 in a practical application
Arduino Uno R3-Based Voice-Controlled Robotic Interface with LCD Feedback
This circuit features an Arduino Uno R3 as the central controller, interfaced with a voice recognition module for audio input commands, an Adafruit Mini Analog Thumbstick for manual control input, and multiple servos for actuation. The Arduino also connects to an I2C LCD 16x2 Screen for display output and an Infrared Proximity Sensor for distance measurement. The circuit is designed for interactive control of servos with both voice and joystick inputs, while providing visual feedback and proximity sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of O.M.C MACHINE CKT DIAGRAM: A project utilizing Arduino Uno R3 in a practical application
Arduino Uno R3 with MQ Gas Sensors and I2C LCD Display
This circuit is designed to monitor gas levels using MQ-5 and MQ-4 gas sensors, with the capability to provide both digital and analog readings. The Arduino Uno R3 serves as the central processing unit, reading sensor outputs and controlling an MKE-M07 LCD1602 I2C display to provide a user interface for real-time gas concentration data. The sensors and display are powered by the Arduino's 5V output, and the ground connections are shared across all components.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Robotics and automation
  • IoT (Internet of Things) devices
  • Sensor-based systems
  • LED control and lighting projects
  • Educational tools for learning programming and electronics

Technical Specifications

Key Technical Details

Parameter Specification
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (6 provide PWM output)
Analog Input Pins 6
DC Current per I/O Pin 20 mA
Flash Memory 32 KB (0.5 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Connector Type-B
Dimensions 68.6 mm x 53.4 mm
Weight 25 g

Pin Configuration and Descriptions

Pin Name Description
Digital Pins 0-13 General-purpose digital I/O pins. Pins 3, 5, 6, 9, 10, and 11 support PWM.
Analog Pins A0-A5 Analog input pins with a 10-bit resolution (0-1023).
GND Ground pins for completing the circuit.
5V Regulated 5V output for powering external components.
3.3V Regulated 3.3V output for low-power components.
VIN Input voltage pin for external power supply (7-12V recommended).
RESET Resets the microcontroller when pulled LOW.
TX (Pin 1) Transmit pin for serial communication.
RX (Pin 0) Receive pin for serial communication.
ICSP Header Used for in-circuit serial programming of the microcontroller.
AREF Reference voltage for analog inputs.

Usage Instructions

How to Use the Arduino Uno R3 in a Circuit

  1. Powering the Board:

    • Connect the board to your computer using a USB Type-B cable for programming and power.
    • Alternatively, use an external power supply (7-12V) via the VIN pin or the DC power jack.
  2. Programming:

    • Install the Arduino IDE from the official Arduino website.
    • Connect the board to your computer via USB.
    • Select the correct board (Arduino Uno) and port in the Arduino IDE.
    • Write your code and upload it to the board.
  3. Connecting Components:

    • Use the digital pins for digital input/output operations (e.g., controlling LEDs, reading buttons).
    • Use the analog pins for reading sensor data (e.g., temperature, light intensity).
    • Ensure components are connected to the appropriate power pins (5V, 3.3V, or GND).

Example Code: Blinking an LED

The following example demonstrates how to blink an LED connected to digital pin 13.

// This example code blinks an LED connected to pin 13 on the Arduino Uno R3.
// The LED will turn on for 1 second, then off for 1 second, repeatedly.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Important Considerations

  • Avoid exceeding the 20 mA current limit per I/O pin to prevent damage.
  • Use resistors with LEDs to limit current and protect the pins.
  • Ensure the total current drawn from the 5V and 3.3V pins does not exceed the board's power limits.
  • When using external power, ensure the voltage is within the recommended range (7-12V).

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the USB cable is properly connected and functional.
    • Check if the correct port is selected in the Arduino IDE.
    • Install or update the USB drivers for the Arduino Uno.
  2. Code does not upload to the board:

    • Verify that the correct board and port are selected in the Arduino IDE.
    • Press the RESET button on the board before uploading.
    • Ensure no other program is using the COM port.
  3. The board is not powering on:

    • Check the power source (USB cable or external power supply).
    • Verify that the power supply voltage is within the recommended range.
  4. Components connected to the board are not working:

    • Double-check the wiring and connections.
    • Ensure the components are compatible with the Arduino Uno's voltage and current ratings.
    • Test the components individually to confirm they are functional.

FAQs

Q: Can I power the Arduino Uno R3 with a battery?
A: Yes, you can use a battery with a voltage between 7-12V. Connect it to the VIN pin or the DC power jack.

Q: What is the maximum current the board can supply?
A: The 5V pin can supply up to 500 mA when powered via USB, and up to 1A when powered via an external power supply.

Q: Can I use the Arduino Uno R3 for wireless communication?
A: Yes, you can use wireless modules like Bluetooth (e.g., HC-05) or Wi-Fi (e.g., ESP8266) with the Arduino Uno.

Q: How do I reset the board?
A: Press the RESET button on the board, or connect the RESET pin to GND momentarily.


This concludes the documentation for the Arduino Uno R3. For more information, visit the official Arduino website.
