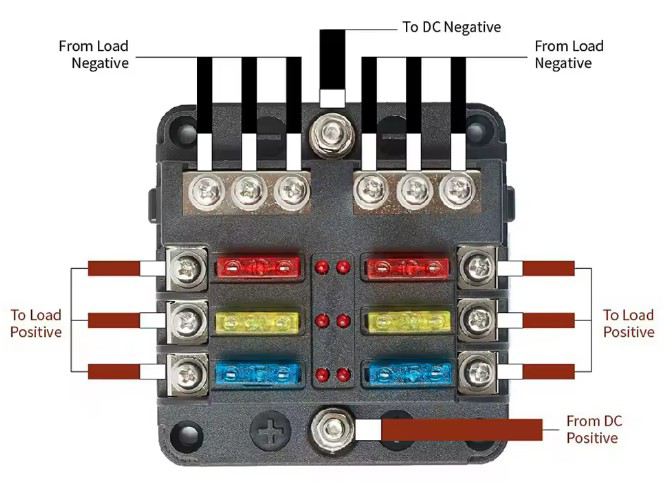

Image of 12V/24V 6-Way Blade Fuse Block with LED Indicator
Cirkit Designer LogoDesign with 12V/24V 6-Way Blade Fuse Block with LED Indicator in Cirkit Designer

Introduction

The 12V/24V 6-Way Blade Fuse Block with LED Indicator is a compact and efficient solution for managing multiple electrical circuits in automotive, marine, and industrial applications. This fuse block is designed to accommodate up to six standard blade fuses, providing overcurrent protection for individual circuits. The built-in LED indicators simplify troubleshooting by illuminating when a fuse is blown, allowing for quick identification and replacement.

Explore Projects Built with 12V/24V 6-Way Blade Fuse Block with LED Indicator

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered LED Strip with Toggle Switch and Fuse Protection
Image of wern: A project utilizing 12V/24V 6-Way Blade Fuse Block with LED Indicator in a practical application
This circuit is a simple 12V lighting system that uses a toggle switch to control a 12V white LED strip. The circuit includes a fuse for overcurrent protection and is powered by a 12V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
12V to 5V Power Supply with LED Indicator and Push Switch
Image of Power Supply LVCO: A project utilizing 12V/24V 6-Way Blade Fuse Block with LED Indicator in a practical application
This circuit is a 12V to 5V regulated power supply with an LED indicator. It uses a 5408 diode for reverse polarity protection, an LM340T5 7805 voltage regulator to step down the voltage to 5V, and a push switch to control the LED indicator. The circuit also includes capacitors for filtering and a resistor to limit the current through the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered LED Control System with Push Switches and Boost Converter
Image of Power Setup Updated 10/12: A project utilizing 12V/24V 6-Way Blade Fuse Block with LED Indicator in a practical application
This circuit consists of multiple LEDs, push switches, and power jacks, designed to control the illumination of the LEDs. Each LED is connected to a power jack through a push switch, allowing individual control of each LED. Additionally, the circuit includes a 7-inch WaveShare display, a boost converter, and fans, all powered through a terminal block.
Cirkit Designer LogoOpen Project in Cirkit Designer
Interactive LED and Buzzer Circuit with Switch Controls
Image of 630 commission: A project utilizing 12V/24V 6-Way Blade Fuse Block with LED Indicator in a practical application
This is a manually controlled indicator and alert system. It uses switches and pushbuttons to activate red and green LEDs, buzzers, and bulbs, indicating different states or alerts. The circuit is powered by a 6V battery and includes resistors to protect the LEDs from excessive current.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with 12V/24V 6-Way Blade Fuse Block with LED Indicator

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of wern: A project utilizing 12V/24V 6-Way Blade Fuse Block with LED Indicator in a practical application
Battery-Powered LED Strip with Toggle Switch and Fuse Protection
This circuit is a simple 12V lighting system that uses a toggle switch to control a 12V white LED strip. The circuit includes a fuse for overcurrent protection and is powered by a 12V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Power Supply LVCO: A project utilizing 12V/24V 6-Way Blade Fuse Block with LED Indicator in a practical application
12V to 5V Power Supply with LED Indicator and Push Switch
This circuit is a 12V to 5V regulated power supply with an LED indicator. It uses a 5408 diode for reverse polarity protection, an LM340T5 7805 voltage regulator to step down the voltage to 5V, and a push switch to control the LED indicator. The circuit also includes capacitors for filtering and a resistor to limit the current through the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Power Setup Updated 10/12: A project utilizing 12V/24V 6-Way Blade Fuse Block with LED Indicator in a practical application
Battery-Powered LED Control System with Push Switches and Boost Converter
This circuit consists of multiple LEDs, push switches, and power jacks, designed to control the illumination of the LEDs. Each LED is connected to a power jack through a push switch, allowing individual control of each LED. Additionally, the circuit includes a 7-inch WaveShare display, a boost converter, and fans, all powered through a terminal block.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of 630 commission: A project utilizing 12V/24V 6-Way Blade Fuse Block with LED Indicator in a practical application
Interactive LED and Buzzer Circuit with Switch Controls
This is a manually controlled indicator and alert system. It uses switches and pushbuttons to activate red and green LEDs, buzzers, and bulbs, indicating different states or alerts. The circuit is powered by a 6V battery and includes resistors to protect the LEDs from excessive current.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Automotive electrical systems (cars, trucks, RVs)
  • Marine electrical systems (boats, yachts)
  • Industrial equipment and machinery
  • Solar power systems
  • Custom electronics projects requiring circuit protection

Technical Specifications

Below are the key technical details of the 12V/24V 6-Way Blade Fuse Block with LED Indicator:

Parameter Specification
Operating Voltage 12V DC / 24V DC
Maximum Current per Circuit 30A
Total Maximum Current 100A
Fuse Type Standard blade fuses (ATO/ATC)
LED Indicator Lights up when a fuse is blown
Input Terminals 1 positive input terminal
Output Terminals 6 protected output terminals
Ground Terminals 6 negative terminals (optional, depending on model)
Mounting Style Surface mount with screw holes
Material Flame-retardant plastic housing
Dimensions ~85mm x 70mm x 35mm

Pin Configuration and Descriptions

The fuse block has the following terminal layout:

Terminal Description
Positive Input Terminal Connects to the positive power source (12V/24V).
Protected Output Terminals (1-6) Connects to the positive side of the circuits being protected.
Ground Terminals (1-6) Connects to the negative side of the circuits (if applicable).
LED Indicators (1-6) Lights up when the corresponding fuse is blown.

Usage Instructions

How to Use the Fuse Block in a Circuit

  1. Mount the Fuse Block: Secure the fuse block to a flat surface using screws or adhesive, ensuring it is easily accessible for maintenance.
  2. Connect the Power Source:
    • Attach the positive input terminal to the positive terminal of the 12V or 24V power source.
    • If the model includes ground terminals, connect the negative terminal of the power source to the ground bus.
  3. Connect the Circuits:
    • Connect the positive wires of the circuits to the protected output terminals (1-6).
    • If applicable, connect the negative wires of the circuits to the corresponding ground terminals.
  4. Insert Fuses:
    • Insert the appropriate blade fuses into the fuse slots. Ensure the fuse ratings match the current requirements of the connected circuits.
  5. Test the Setup:
    • Power on the system and verify that all circuits are functioning correctly.
    • If a fuse blows, the corresponding LED indicator will light up, signaling the need for replacement.

Important Considerations and Best Practices

  • Fuse Ratings: Always use fuses with the correct current rating for each circuit. Overrated fuses may fail to protect the circuit, while underrated fuses may blow unnecessarily.
  • Power Source Compatibility: Ensure the power source voltage matches the operating voltage of the fuse block (12V or 24V).
  • Wiring: Use appropriately sized wires to handle the current load of each circuit. Undersized wires may overheat and cause damage.
  • Environment: Install the fuse block in a dry, well-ventilated area to prevent moisture or heat damage.

Example: Connecting to an Arduino UNO

The fuse block can be used to protect circuits in Arduino-based projects. Below is an example of how to connect an Arduino UNO to a 12V power source using the fuse block:

// Example: Arduino UNO with 12V power source and fuse block
// This setup protects the Arduino and connected components from overcurrent.

void setup() {
  // No specific code is required for the fuse block itself.
  // Ensure proper wiring as described below:
  // - Connect the 12V positive terminal to the fuse block's input terminal.
  // - Use one of the protected output terminals to power the Arduino's VIN pin.
  // - Insert a 1A or 2A fuse in the corresponding slot to protect the Arduino.
}

void loop() {
  // Your Arduino code goes here.
}

Troubleshooting and FAQs

Common Issues and Solutions

Issue Possible Cause Solution
LED indicator is lit for a circuit Blown fuse Replace the fuse with one of the correct rating.
No power to connected circuits Loose or incorrect wiring Verify all connections are secure and correctly wired.
Fuse blows repeatedly Circuit overload or short circuit Check the circuit for faults and ensure the fuse rating is appropriate.
LED indicator does not light when fuse blows Faulty LED or incorrect installation Verify the LED functionality and ensure proper wiring.

FAQs

  1. Can I use this fuse block for AC circuits?

    • No, this fuse block is designed for DC circuits only (12V or 24V).
  2. What happens if I exceed the total maximum current (100A)?

    • Exceeding the total current rating may damage the fuse block or cause overheating. Ensure the combined current of all circuits does not exceed 100A.
  3. Can I use this fuse block without connecting the ground terminals?

    • Yes, if your model includes ground terminals, they are optional and primarily for convenience. You can connect the ground wires elsewhere if needed.
  4. What type of fuses should I use?

    • Use standard ATO/ATC blade fuses with ratings appropriate for your circuits.

By following this documentation, you can effectively integrate the 12V/24V 6-Way Blade Fuse Block with LED Indicator into your projects, ensuring safe and reliable operation.
