How to Use MPU6050: Examples, Pinouts, and Specs

The MPU6050 is a 6-axis motion tracking device that integrates a 3-axis gyroscope and a 3-axis accelerometer into a single chip. This compact and versatile sensor is widely used in applications requiring precise motion tracking and orientation sensing. It is commonly found in robotics, drones, smartphones, gaming devices, and wearable technology. The MPU6050 is capable of measuring acceleration, angular velocity, and orientation, making it an essential component for motion-based projects.

The following table outlines the key technical details of the MPU6050:

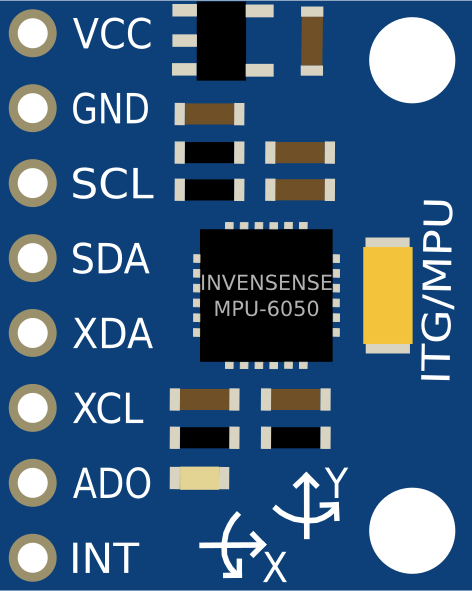

The MPU6050 has 8 pins, as described in the table below:

1. Power Supply: Connect the VCC pin to a 3.3V or 5V power source (depending on your module) and GND to ground.
2. I2C Communication: Connect the SCL and SDA pins to the corresponding I2C pins on your microcontroller. Use pull-up resistors (typically 4.7kΩ) on the SCL and SDA lines if not already included on your module.
3. Address Selection: Use the AD0 pin to select the I2C address:
   • Connect AD0 to GND for address 0x68.
   • Connect AD0 to VCC for address 0x69.
4. Interrupt Pin (Optional): Connect the INT pin to a GPIO pin on your microcontroller if you want to use the interrupt feature.

• Ensure proper decoupling capacitors are used near the power supply pins to reduce noise.
• Avoid excessive vibrations or shocks to the sensor, as this may affect accuracy.
• Calibrate the sensor for your specific application to improve measurement precision.
• Use libraries or pre-written code to simplify communication with the MPU6050.

Below is an example of how to interface the MPU6050 with an Arduino UNO using the popular MPU6050 library:

#include <Wire.h>
#include <MPU6050.h>

MPU6050 mpu; // Create an MPU6050 object

void setup() {
  Serial.begin(9600); // Initialize serial communication
  Wire.begin();       // Initialize I2C communication

  // Initialize the MPU6050
  Serial.println("Initializing MPU6050...");
  if (!mpu.begin(MPU6050_SCALE_2000DPS, MPU6050_RANGE_2G)) {
    Serial.println("Could not find a valid MPU6050 sensor. Check connections.");
    while (1); // Halt execution if initialization fails
  }

  Serial.println("MPU6050 initialized successfully!");
}

void loop() {
  // Read raw acceleration and gyroscope data
  Vector rawAccel = mpu.readRawAccel();
  Vector rawGyro = mpu.readRawGyro();

  // Print acceleration data
  Serial.print("Accel X: "); Serial.print(rawAccel.XAxis);
  Serial.print(" | Y: "); Serial.print(rawAccel.YAxis);
  Serial.print(" | Z: "); Serial.println(rawAccel.ZAxis);

  // Print gyroscope data
  Serial.print("Gyro X: "); Serial.print(rawGyro.XAxis);
  Serial.print(" | Y: "); Serial.print(rawGyro.YAxis);
  Serial.print(" | Z: "); Serial.println(rawGyro.ZAxis);

  delay(500); // Delay for readability
}

• The MPU6050 library simplifies communication with the sensor. Install it via the Arduino Library Manager.
• The MPU6050_SCALE_2000DPS and MPU6050_RANGE_2G parameters set the gyroscope and accelerometer ranges, respectively. Adjust these based on your application.

1. Sensor Not Detected:

   • Ensure the I2C connections (SCL, SDA) are correct and secure.
   • Verify the I2C address (default is 0x68 unless AD0 is connected to VCC).
   • Check for proper pull-up resistors on the I2C lines.

2. Inaccurate Readings:

   • Perform sensor calibration to account for offsets and environmental factors.
   • Ensure the sensor is mounted securely to avoid vibrations.

3. No Data Output:

   • Confirm that the MPU6050 is powered correctly (check VCC and GND connections).
   • Verify that the correct library is installed and included in your code.

Q: Can the MPU6050 be used with 5V logic?
A: Yes, the MPU6050 is compatible with 5V logic when pull-up resistors are used on the I2C lines.

Q: How do I calibrate the MPU6050?
A: Calibration involves measuring and compensating for offsets in the accelerometer and gyroscope data. Many libraries include built-in calibration functions.

Q: What is the maximum sampling rate of the MPU6050?
A: The MPU6050 supports a maximum sampling rate of 1 kHz.

Q: Can I connect multiple MPU6050 sensors to the same I2C bus?
A: Yes, but each sensor must have a unique I2C address. Use the AD0 pin to set different addresses.

By following this documentation, you can effectively integrate the MPU6050 into your projects and troubleshoot common issues.
